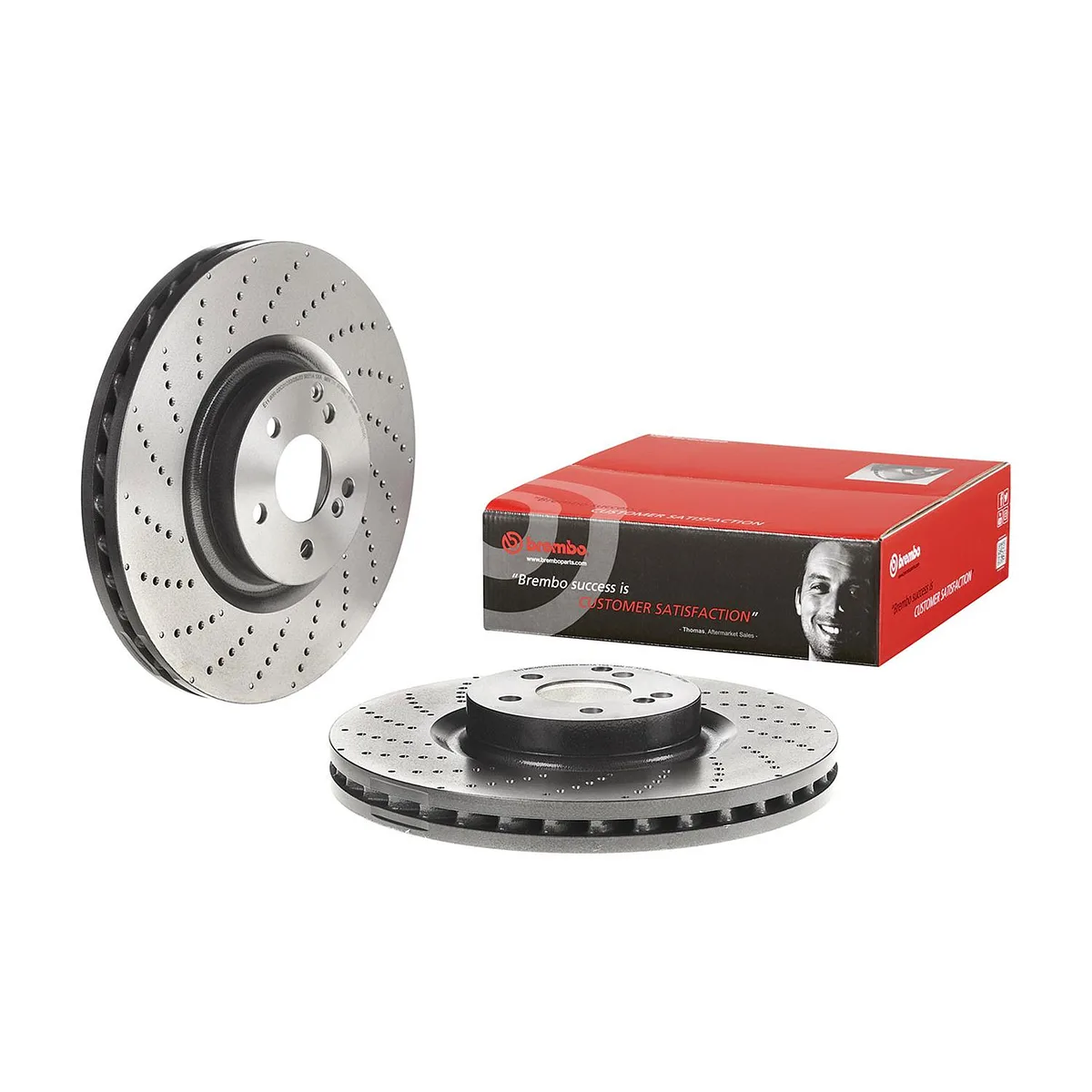

Brembo Brake Disc Set (2 pcs) 09.B769.51
Brembo

Brembo Brake Disc Set (2 pcs) 09.B769.51

Part No. 09.B769.51
Out of stock 12 OE references
Check this part fits your car
and we will confirm it against the 18 variants listed for this part.
$516.00 incl. GST
Front axle 360 x 36 mm Fitting bolts Fits 18 vehicle variants

This part is out of stock and we cannot confirm when it will be back. Ask us about this part and we will reply with what we know.

Manufacturer's warranty 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

In stock, and fits the same vehicles

Each of these is listed for at least one of the vehicles this part fits, in the same category. Check the fitment table on the part before you order.

ATE
ATE Brake Disc Set (2 pcs) 24.0136-0108.1
$820.00
Brembo
Brembo Brake Disc Set (2 pcs) 09.B848.33
$1,466.00

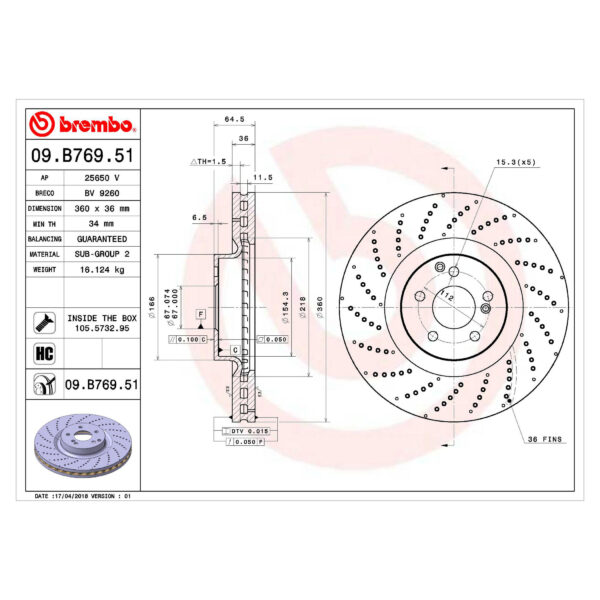

Technical specification

Height65 mm
Disc typeCross-drilled and vented
Thickness when new36 mm
Minimum (discard) thickness34 mm
Iron gradeHigh-carbon cast iron
Outside diameter360 mm
Stud holes5
Centre bore67 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included

OE & OEM cross-reference

Supplier part number
09.B769.51
Fits OE / OEM numbers
000 421 20 12 A 000 421 20 12 0004212012 A0004212012 204 421 12 12 A 204 421 12 12 2044211212 A2044211212 221 421 08 12 A 221 421 08 12 2214210812 A2214210812

Vehicle fitment

18 variants
Make & modelChassisVariantYearsPower
Mercedes-Benz C-ClassW204C 63 AMG (204.077)2008–2014358 kW
Mercedes-Benz C-ClassW204C 63 AMG (204.077)2008–2014336 kW
Mercedes-Benz C-ClassW204C 63 AMG (204.077)2008–2014373 kW
Mercedes-Benz C-ClassW205AMG C 63 S (205.087)2014–now375 kW
Mercedes-Benz C-Class ConvertibleA205AMG C 63 S (205.487)2016–now375 kW
Mercedes-Benz C-Class CoupeC204C 63 AMG (204.377)2011–now336 kW
Mercedes-Benz C-Class CoupeC204C 63 AMG (204.377)2012–now358 kW
Mercedes-Benz C-Class CoupeC205AMG C 63 S (205.387)2016–now375 kW
Mercedes-Benz C-Class EstateS204C 63 AMG (204.277)2008–2014336 kW
Mercedes-Benz C-Class EstateS204C 63 AMG (204.277)2012–2014358 kW

Owner guides for these models: C-Class W204 owner guide · C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C204 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S204 owner guide · C-Class Estate S205 owner guide · E-Class W212 owner guide · E-Class Convertible A207 owner guide · E-Class Coupe C207 owner guide · E-Class Estate S212 owner guide · S-Class W221 owner guide · S-Class Coupe C216 owner guide

Product overview

Brembo 09.B769.51 is a pair of cross-drilled, vented brake discs (rotors). Each disc is 360 mm in diameter and 36 mm thick when new, with a 65 mm hat height. The minimum (discard) thickness is 34 mm. Each disc has 5 stud holes, with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 000 421 20 12 and 2 other OE numbers. Confirmed to fit 18 Australian-market variants; the full list is in the fitment table on this page.
