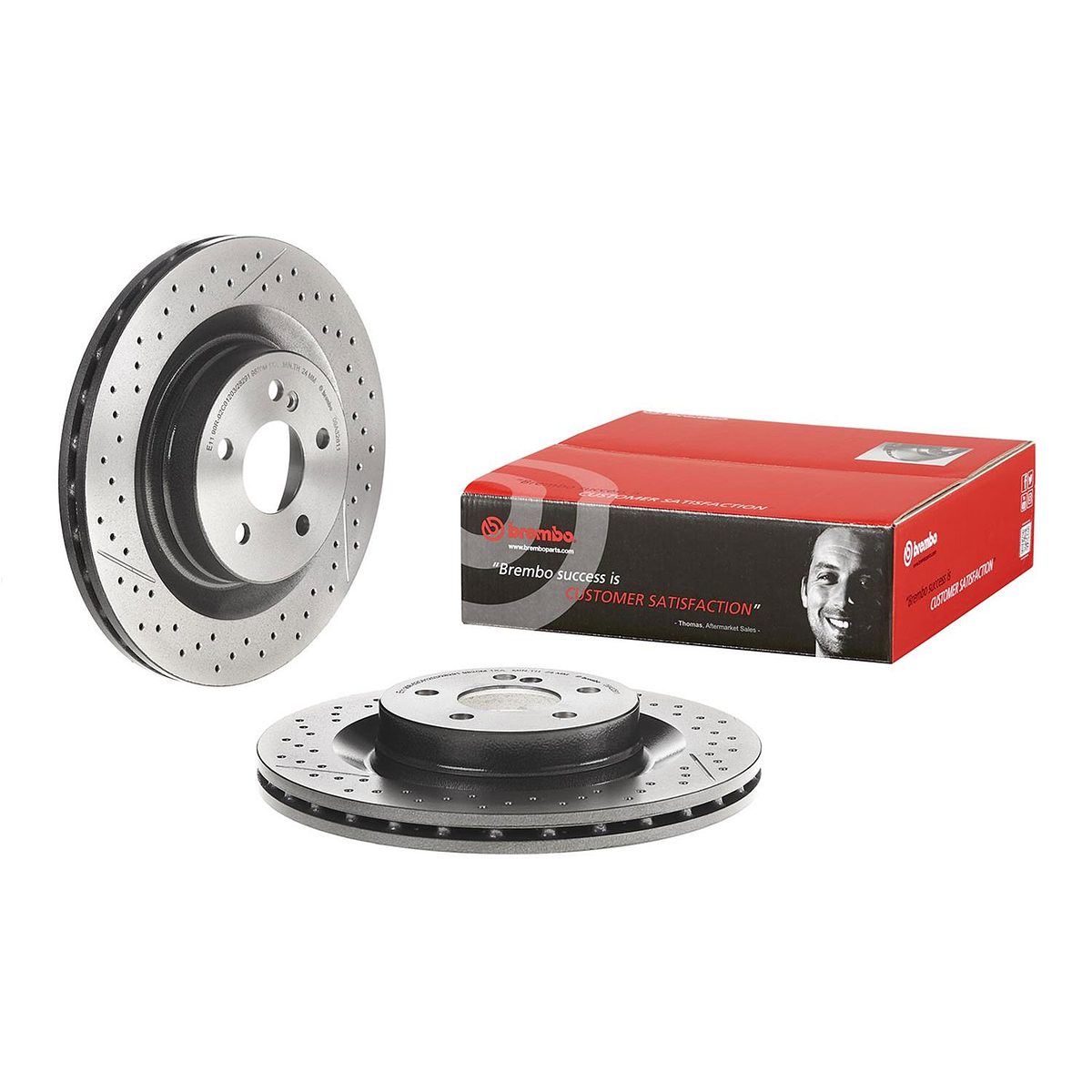

Brembo Brake Disc Set (2 pcs) 09.A326.11
Part No. 09.A326.11
Check this part fits your car
Select your vehicle and we will confirm it against the 9 variants listed for this part.
$498.00
incl. GST
Rear axle
330 x 26 mm
Fitting bolts
Fits 9 vehicle variants
This part is out of stock and we cannot confirm when it will be back. Ask us about this part and we will reply with what we know.
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

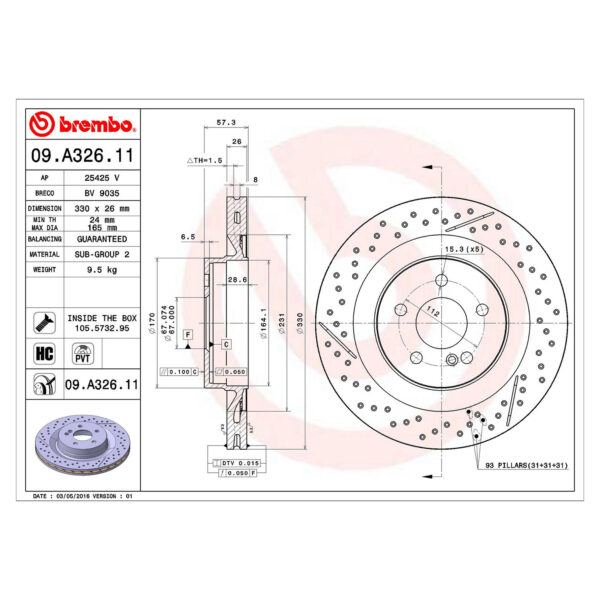

Technical specification
Height57 mm
Disc typeSlotted and cross-drilled, Internally vented
Thickness when new26 mm
Minimum (discard) thickness24 mm
Iron gradeHigh-carbon cast iron
Outside diameter330 mm
Stud holes5
Centre bore67 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
09.A326.11
Fits OE / OEM numbers
204 423 04 12
A 204 423 04 12
2044230412
A2044230412
Vehicle fitment
9 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W204 | C 63 AMG (204.077) | 2008–2014 | 358 kW |
| Mercedes-Benz C-Class | W204 | C 63 AMG (204.077) | 2008–2014 | 336 kW |
| Mercedes-Benz C-Class | W204 | C 63 AMG (204.077) | 2008–2014 | 373 kW |
| Mercedes-Benz C-Class Coupe | C204 | C 63 AMG (204.377) | 2011–now | 336 kW |
| Mercedes-Benz C-Class Coupe | C204 | C 63 AMG (204.377) | 2012–now | 358 kW |
| Mercedes-Benz C-Class Coupe | C204 | C 63 AMG (204.377) | 2012–now | 373 kW |
| Mercedes-Benz C-Class Estate | S204 | C 63 AMG (204.277) | 2008–2014 | 336 kW |
| Mercedes-Benz C-Class Estate | S204 | C 63 AMG (204.277) | 2012–2014 | 358 kW |
| Mercedes-Benz C-Class Estate | S204 | C 63 AMG | 2013–2014 | 373 kW |
Owner guides for these models: C-Class W204 owner guide · C-Class Coupe C204 owner guide · C-Class Estate S204 owner guide
Product overview
Brembo 09.A326.11 is a pair of slotted and cross-drilled, internally vented brake discs (rotors). Each disc is 330 mm in diameter and 26 mm thick when new, with a 57 mm hat height. The minimum (discard) thickness is 24 mm. Each disc has 5 stud holes, with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 204 423 04 12. Confirmed to fit 9 Australian-market variants; the full list is in the fitment table on this page.
