Zimmermann 256mm Brake Disc Set (2 pcs) 600.3250.20
Part No. 600.3250.20
Check this part fits your car
Select your vehicle and we will confirm it against the 1 variant listed for this part.
$264.00
incl. GST
Front axle
256 x 22 mm
Fits 1 vehicle variant
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeExternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter256 mm
Thickness when new22 mm
Height37 mm
Stud holes4
Stud circle (PCD)100 mm
Centre bore65 mm
ApprovalECE R90 approved
Minimum (discard) thickness19 mm
Part weight4.2 kg
Hole pattern5/4
OE & OEM cross-reference
Supplier part number
600.3250.20
Fits OE / OEM numbers
1S0 615 301
1S0 615 301 H
1S0 615 301 M
1S0 615 301 L
Vehicle fitment
1 variant
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| VW UP! | 121, 122… | 1.0 | 2011–2019 | 55 kW |
Product overview

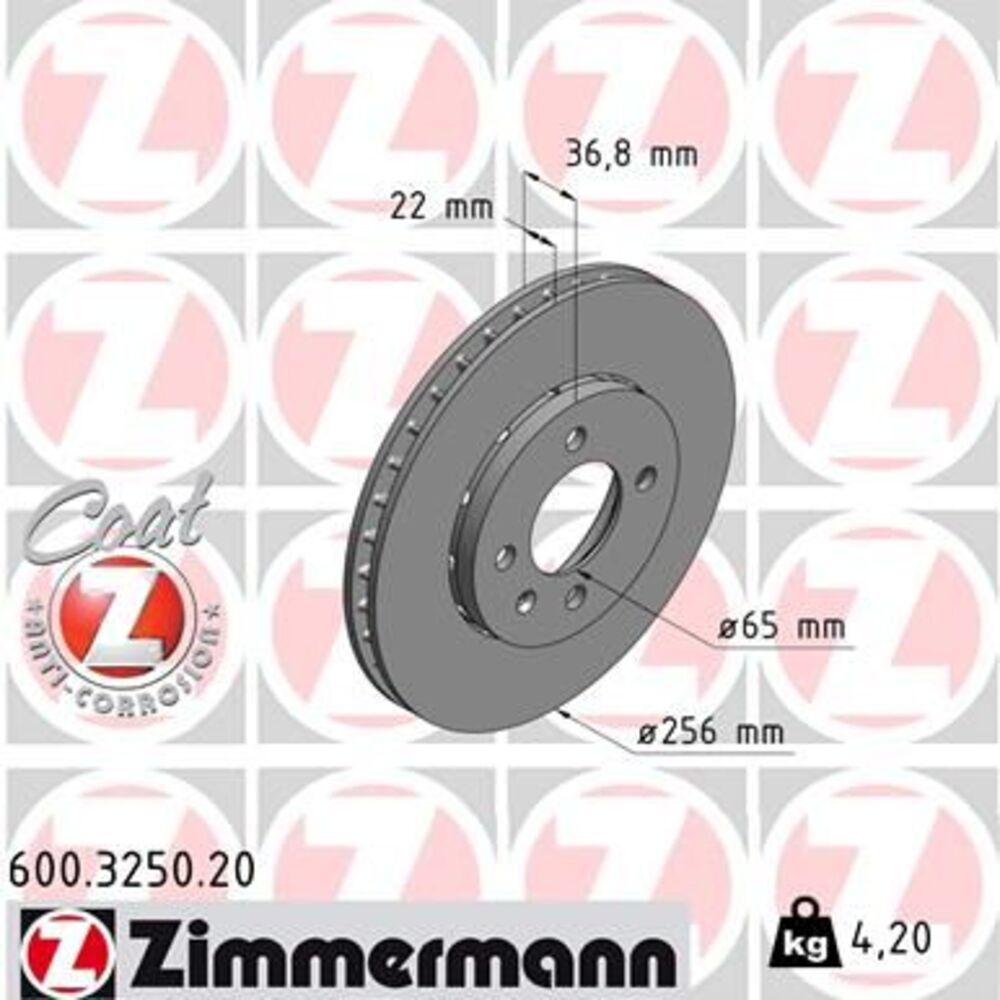

Zimmermann 600.3250.20 is a pair of externally vented brake discs (rotors). Each disc is 256 mm in diameter and 22 mm thick when new, with a 37 mm hat height. The minimum (discard) thickness is 19 mm. Each disc has 4 stud holes on a 100 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 1S0 615 301 and 3 other OE numbers. Confirmed to fit 1 Australian-market variant; the full list is in the fitment table on this page.
