Zimmermann 260mm Brake Disc Set (2 pcs) 150.1258.20
Part No. 150.1258.20
Check this part fits your car
Select your vehicle and we will confirm it against the 22 variants listed for this part.
$256.00
incl. GST
Front axle
260 x 22 mm
Fits 22 vehicle variants
This part is out of stock and we cannot confirm when it will be back. Ask us about this part and we will reply with what we know.
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

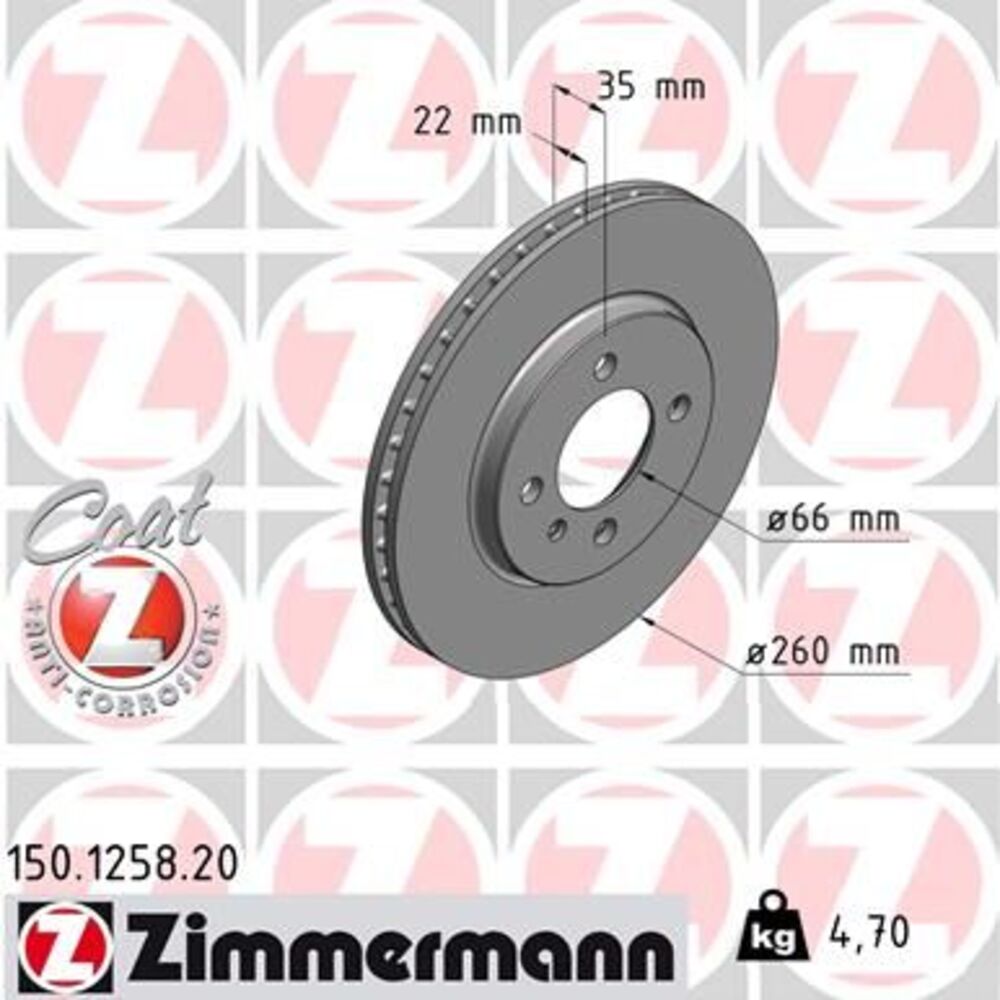

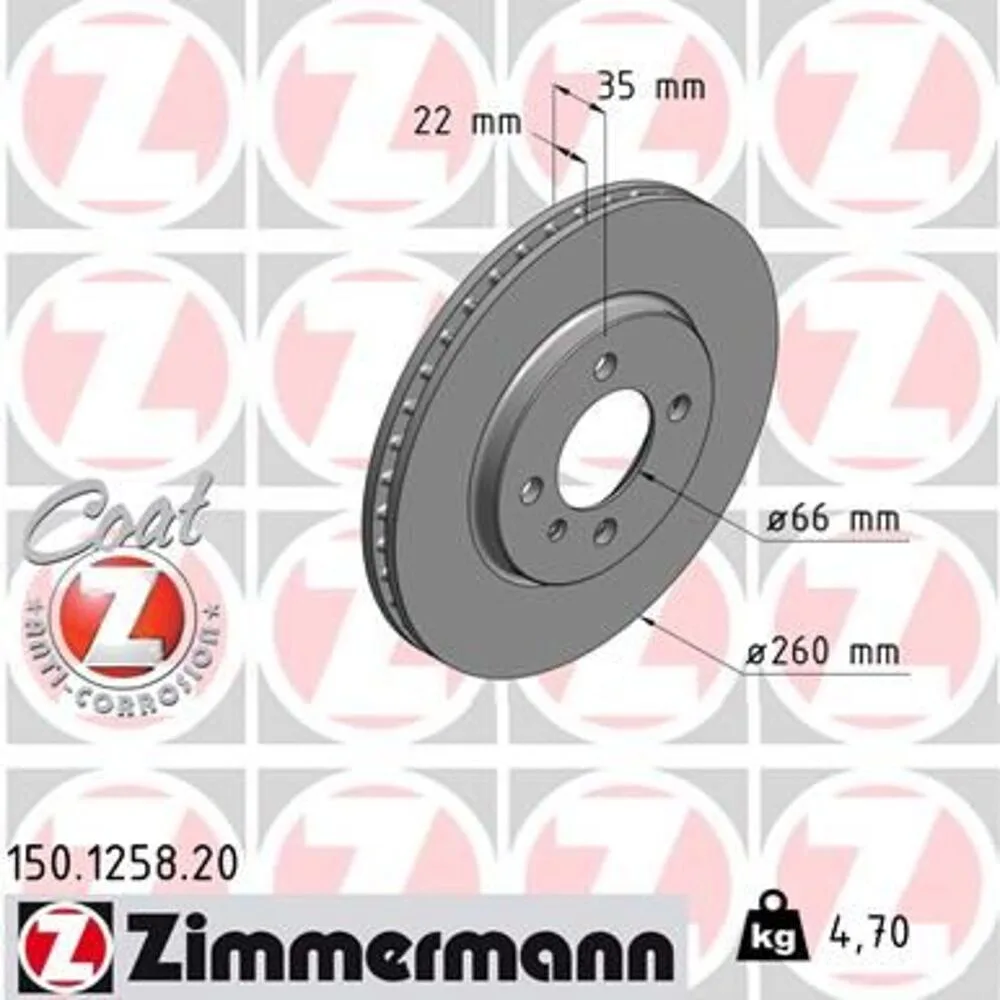

Technical specification
Disc typeInternally vented
Iron gradeAlloyed cast iron
Surface finishCorrosion-protective coating
Outside diameter260 mm
Thickness when new22 mm
Height35 mm
Stud holes4
Stud circle (PCD)100 mm
Centre bore66 mm
Minimum (discard) thickness20.4 mm
Part weight4.8 kg
Hole pattern5/4
OE & OEM cross-reference
Supplier part number
150.1258.20
Fits OE / OEM numbers
3411 6 752 352
3411 1 154 749
3411 1 154 750
3411 1 160 915
3411 1 160 847
Vehicle fitment
22 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E30 | 318 i | 1982–1987 | 77 kW |
| BMW 3 Series | E30 | 320 i | 1982–1991 | 92 kW |
| BMW 3 Series | E30 | 323 i | 1982–1983 | 102 kW |
| BMW 3 Series | E30 | 316 (Ecotronic) | 1983–1988 | 66 kW |
| BMW 3 Series | E30 | 323 i | 1983–1986 | 110 kW |
| BMW 3 Series | E30 | 325 i | 1983–1989 | 126 kW |
| BMW 3 Series | E30 | 325 e 2.7, 325es 2.7 | 1983–1988 | 90 kW |
| BMW 3 Series | E30 | 318 i | 1984–1988 | 75 kW |
| BMW 3 Series | E30 | 325 2.7, 325 e 2.7 | 1985–1987 | 95 kW |
| BMW 3 Series | E30 | 320 i | 1986–1991 | 95 kW |
Product overview
Zimmermann 150.1258.20 is a pair of internally vented brake discs (rotors). Each disc is 260 mm in diameter and 22 mm thick when new, with a 35 mm hat height. The minimum (discard) thickness is 20.4 mm. Each disc has 4 stud holes on a 100 mm stud circle (PCD), with a 66 mm centre bore. The discs are coated for corrosion protection and made from alloyed cast iron. Cross-referenced to BMW OE 3411 6 752 352 and 4 other OE numbers. Confirmed to fit 22 Australian-market variants; the full list is in the fitment table on this page.
