Zimmermann 272mm Brake Disc Set (2 pcs) 150.1282.20
Part No. 150.1282.20
Check this part fits your car
Select your vehicle and we will confirm it against the 3 variants listed for this part.
$248.00
incl. GST
Rear axle
272 x 10 mm
Fits 3 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeSolid
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter272 mm
Thickness when new10 mm
Height78 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness8.4 mm
Part weight4.5 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1282.20
Fits OE / OEM numbers
3421 1 160 809
3421 6 758 552
Vehicle fitment
3 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series Compact | E36 | 316 i | 1994–2000 | 75 kW |
| BMW 3 Series Compact | E36 | 318 ti | 1996–1999 | 103 kW |
| BMW 3 Series Compact | E36 | 316 i | 1999–2000 | 77 kW |
Product overview

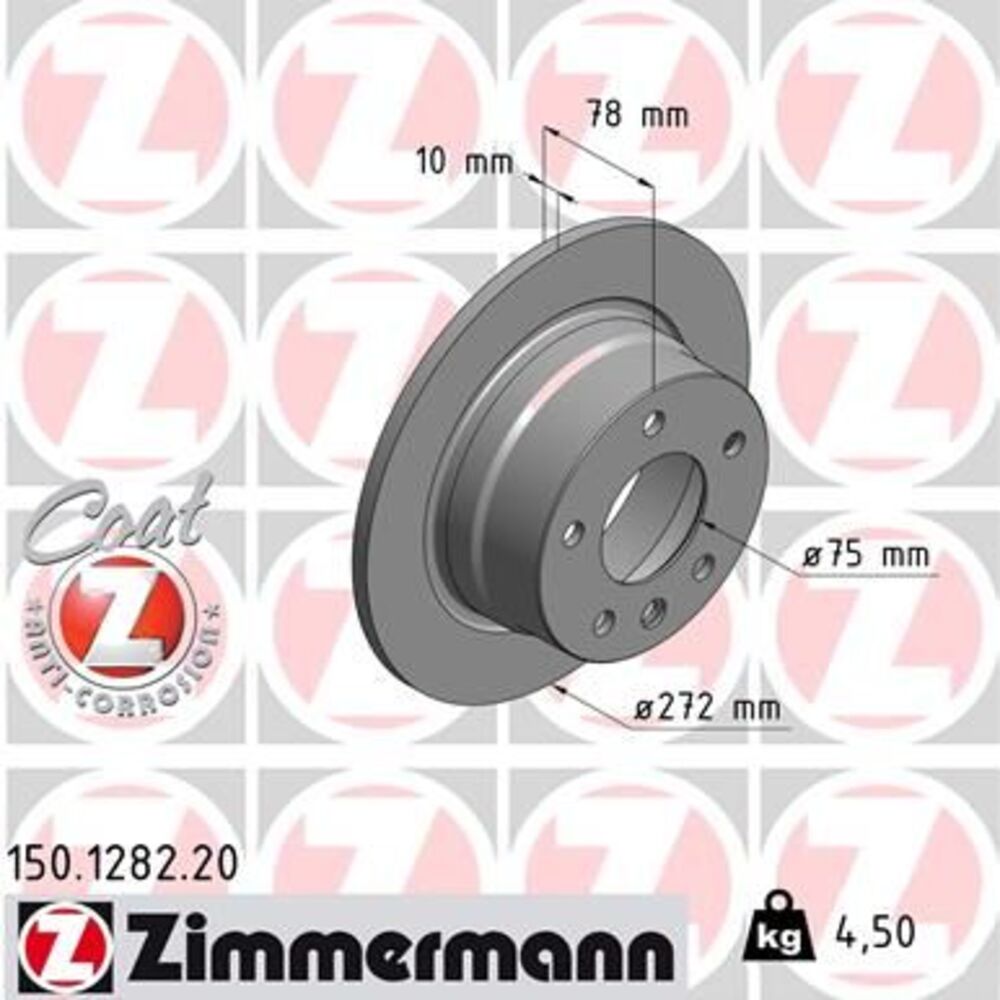

Zimmermann 150.1282.20 is a pair of solid brake discs (rotors). Each disc is 272 mm in diameter and 10 mm thick when new, with a 78 mm hat height. The minimum (discard) thickness is 8.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 1 160 809 and 1 other OE number. Confirmed to fit 3 Australian-market variants; the full list is in the fitment table on this page.
