Zimmermann 280mm Brake Disc Set (2 pcs) 150.3435.20
Part No. 150.3435.20
Check this part fits your car
Select your vehicle and we will confirm it against the 1 variant listed for this part.
$264.00
incl. GST
Rear axle
280 x 10 mm
Fits 1 vehicle variant
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeSolid
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter280 mm
Thickness when new10 mm
Height75 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness8.4 mm
Part weight4.7 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3435.20
Fits OE / OEM numbers
3421 6 752 545
3421 6 766 225
3421 6 794 306
Vehicle fitment
1 variant
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW Z4 Roadster | E85 | 2.5 i | 2002–2005 | 141 kW |
Product overview

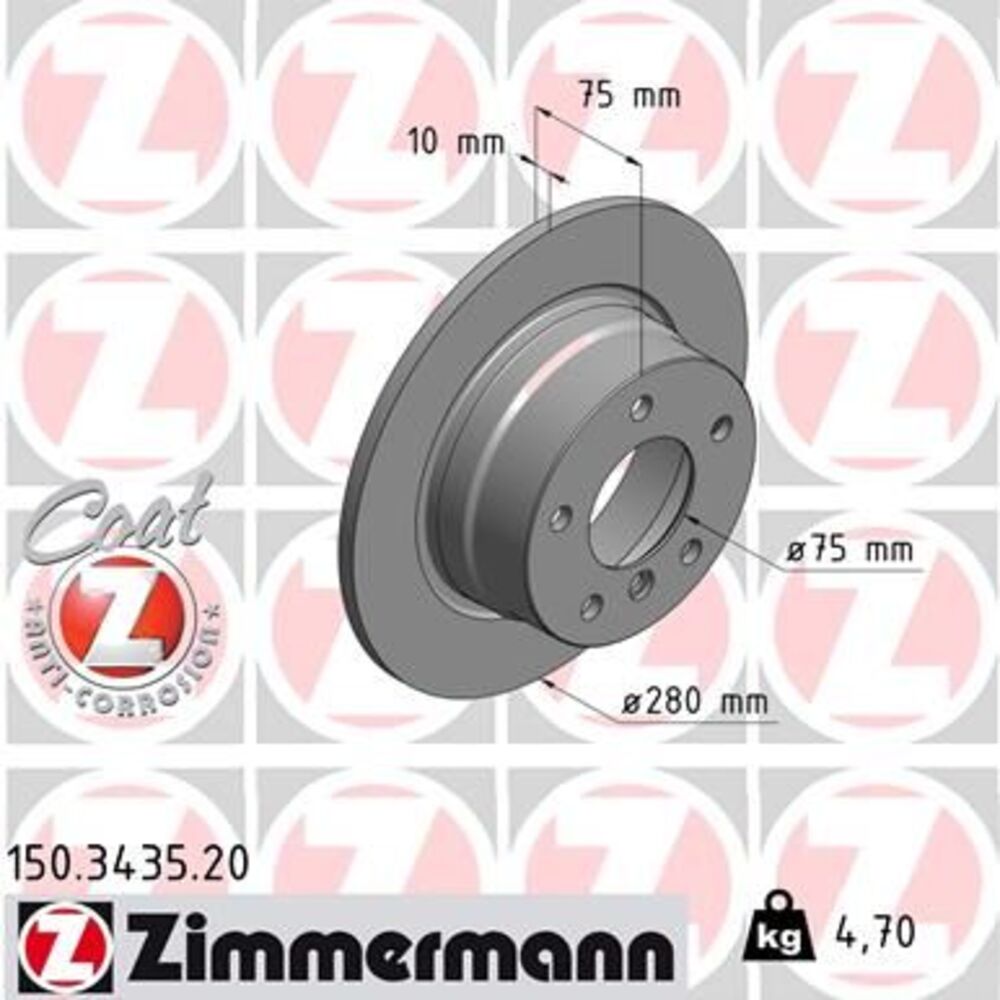

Zimmermann 150.3435.20 is a pair of solid brake discs (rotors). Each disc is 280 mm in diameter and 10 mm thick when new, with a 75 mm hat height. The minimum (discard) thickness is 8.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 6 752 545 and 2 other OE numbers. Confirmed to fit 1 Australian-market variant; the full list is in the fitment table on this page.
