Zimmermann 324mm Brake Disc Set (2 pcs) 150.1299.20
Part No. 150.1299.20
Check this part fits your car
Select your vehicle and we will confirm it against the 4 variants listed for this part.
$250.00
incl. GST
Rear axle
324 x 12 mm
Fits 4 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeSolid
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter324 mm
Thickness when new12 mm
Height80 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness10.4 mm
Part weight6.9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1299.20
Fits OE / OEM numbers
3421 1 164 911
3421 6 765 458
3421 6 794 299
3421 6 859 678
Vehicle fitment
4 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X5 | E53 | 4.4 i | 2000–2003 | 210 kW |
| BMW X5 | E53 | 3.0 i | 2000–2006 | 170 kW |
| BMW X5 | E53 | 3.0 d | 2001–2003 | 135 kW |
| BMW X5 | E53 | 3.0 d | 2003–2006 | 160 kW |
Product overview

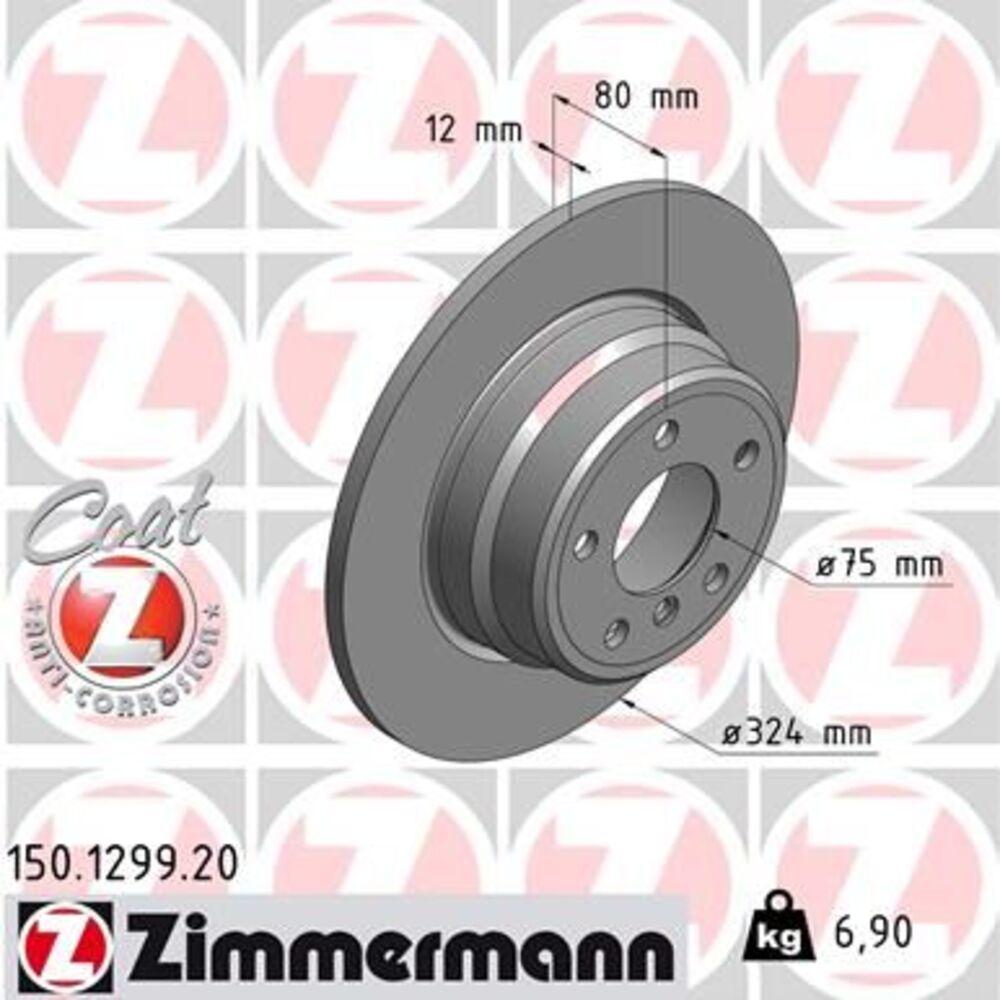

Zimmermann 150.1299.20 is a pair of solid brake discs (rotors). Each disc is 324 mm in diameter and 12 mm thick when new, with a 80 mm hat height. The minimum (discard) thickness is 10.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 1 164 911 and 3 other OE numbers. Confirmed to fit 4 Australian-market variants; the full list is in the fitment table on this page.
