Zimmermann 325mm Brake Disc Set (2 pcs) 150.3431.20
Part No. 150.3431.20
Check this part fits your car
Select your vehicle and we will confirm it against the 13 variants listed for this part.
$418.00
incl. GST
Front axle
325 x 25 mm
Fits 13 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter325 mm
Thickness when new25 mm
Height62 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness23.4 mm
Part weight9.12 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3431.20
Fits OE / OEM numbers
3411 3 400 151
Vehicle fitment
13 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X3 | E83 | 3.0 i xDrive | 2003–2006 | 170 kW |
| BMW X3 | E83 | 3.0 d | 2004–2005 | 150 kW |
| BMW X3 | E83 | 2.5 i | 2004–2006 | 141 kW |
| BMW X3 | E83 | 2.0 d | 2004–2007 | 110 kW |
| BMW X3 | E83 | 2.0 i | 2005–2008 | 110 kW |
| BMW X3 | E83 | 3.0 d | 2005–2008 | 160 kW |
| BMW X3 | E83 | 2.5 si | 2006–2008 | 160 kW |
| BMW X3 | E83 | 3.0 si | 2006–2008 | 200 kW |
| BMW X3 | E83 | 2.0 sd | 2007–2008 | 130 kW |
| BMW X3 | E83 | xDrive 20 d | 2008–2010 | 130 kW |
Product overview

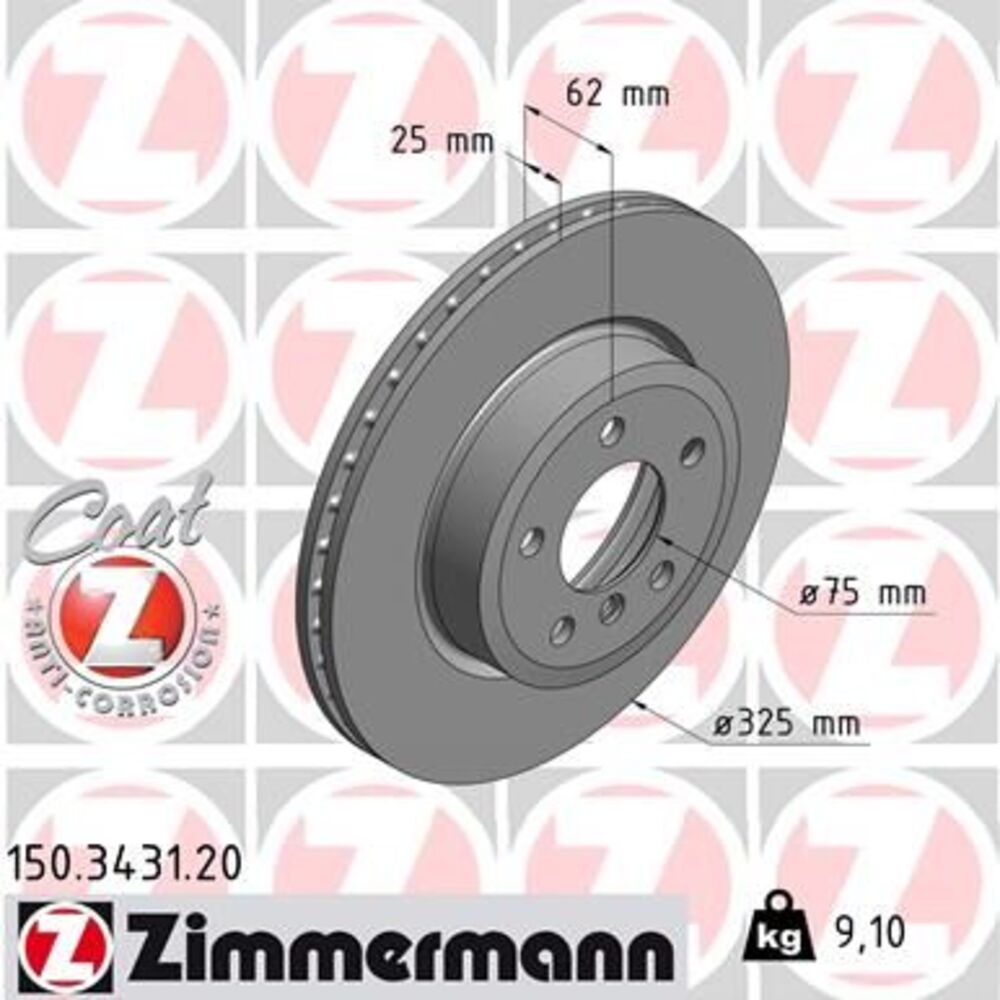

Zimmermann 150.3431.20 is a pair of internally vented brake discs (rotors). Each disc is 325 mm in diameter and 25 mm thick when new, with a 62 mm hat height. The minimum (discard) thickness is 23.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 3 400 151. Confirmed to fit 13 Australian-market variants; the full list is in the fitment table on this page.
