Zimmermann 338mm Brake Disc Set (2 pcs) 150.3465.20
Part No. 150.3465.20
Check this part fits your car
Select your vehicle and we will confirm it against the 2 variants listed for this part.
$472.00
incl. GST
Front axle
338 x 26 mm
Fits 2 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter338 mm
Thickness when new26 mm
Height73 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalKBA 60787
Minimum (discard) thickness24.4 mm
Part weight9.4 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3465.20
Fits OE / OEM numbers
3411 6 778 647
Vehicle fitment
2 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series Convertible | E88 | 135 i | 2008–2013 | 225 kW |
| BMW 1 Series Coupe | E82 | 135 i | 2007–2013 | 225 kW |
Product overview

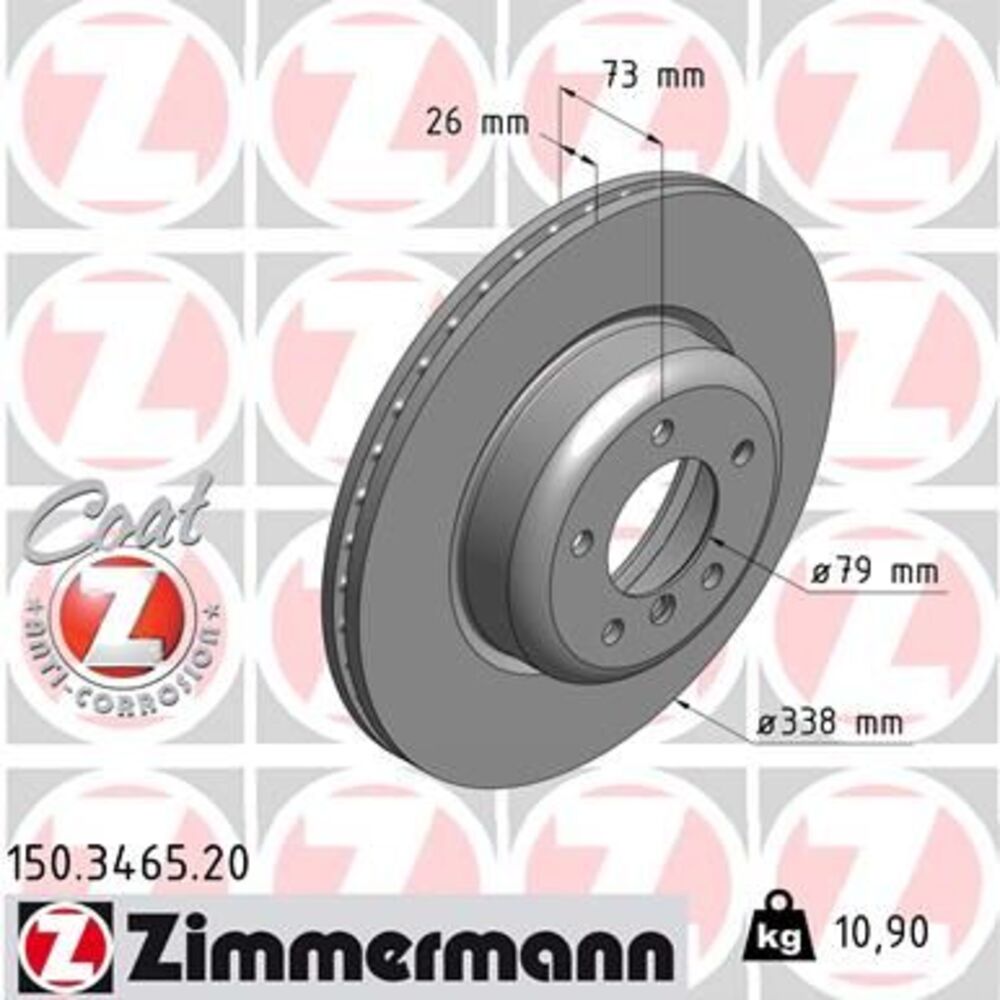

Zimmermann 150.3465.20 is a pair of internally vented brake discs (rotors). Each disc is 338 mm in diameter and 26 mm thick when new, with a 73 mm hat height. The minimum (discard) thickness is 24.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They carry KBA type approval, marked KBA 60787. Cross-referenced to BMW OE 3411 6 778 647. Confirmed to fit 2 Australian-market variants; the full list is in the fitment table on this page.
