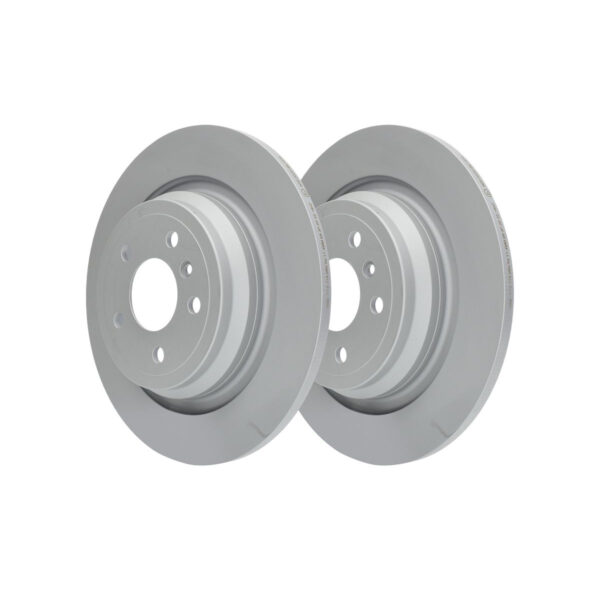

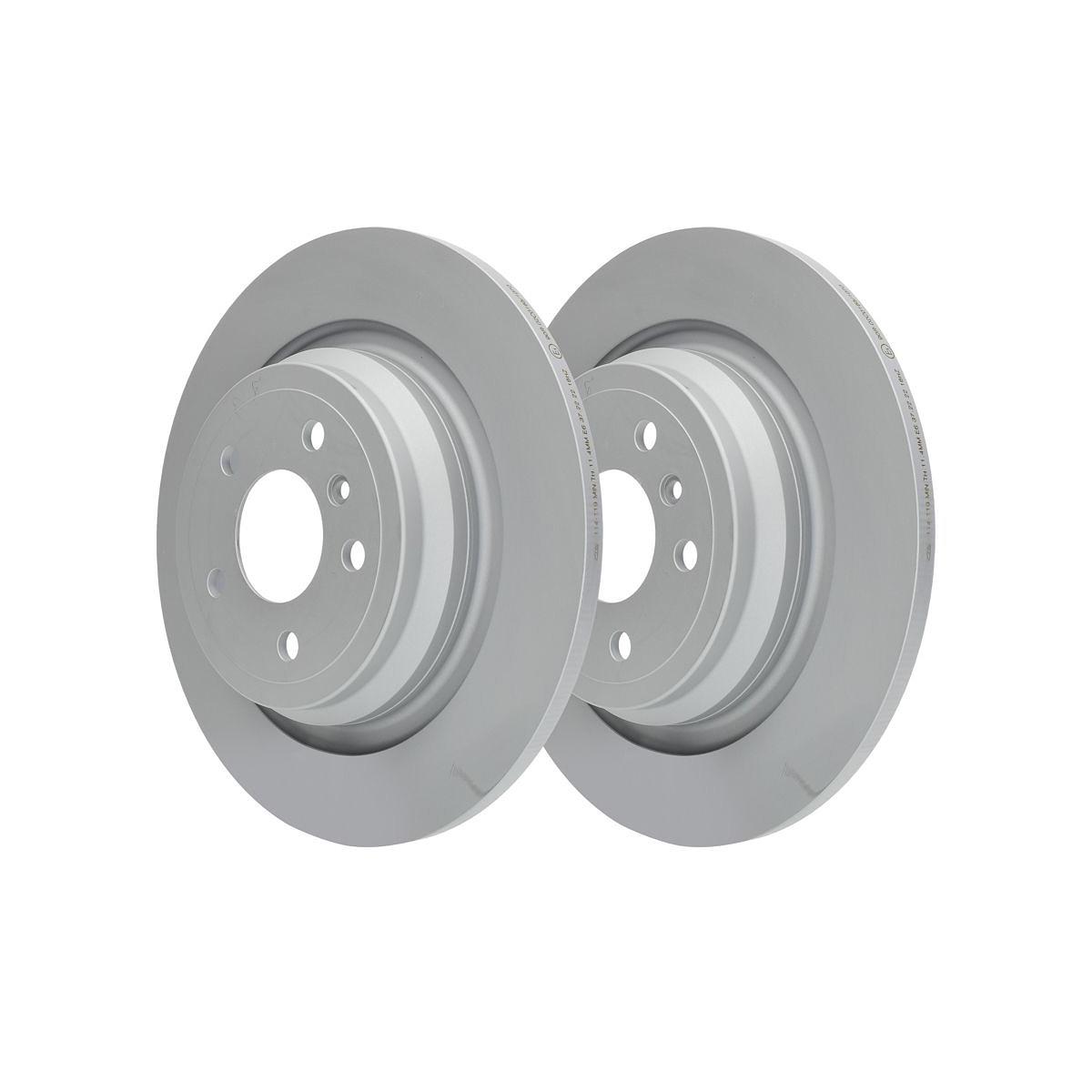

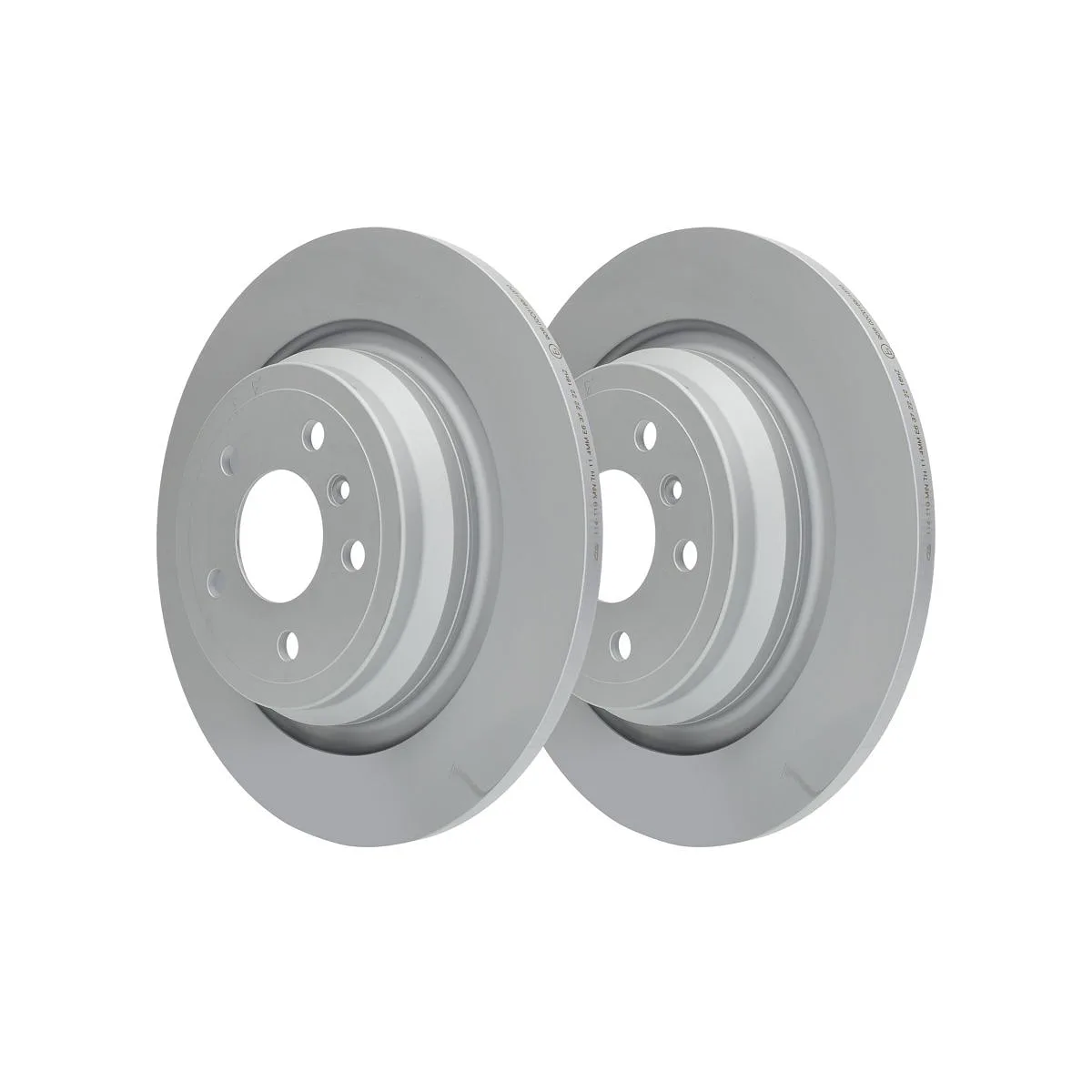

ATE Brake Disc Set (2 pcs) 24.0114-0119.1
Part No. 24.0114-0119.1
Check this part fits your car
Select your vehicle and we will confirm it against the 5 variants listed for this part.
$438.00
incl. GST
Rear axle
325 x 14 mm
Fitting bolts
Fits 5 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

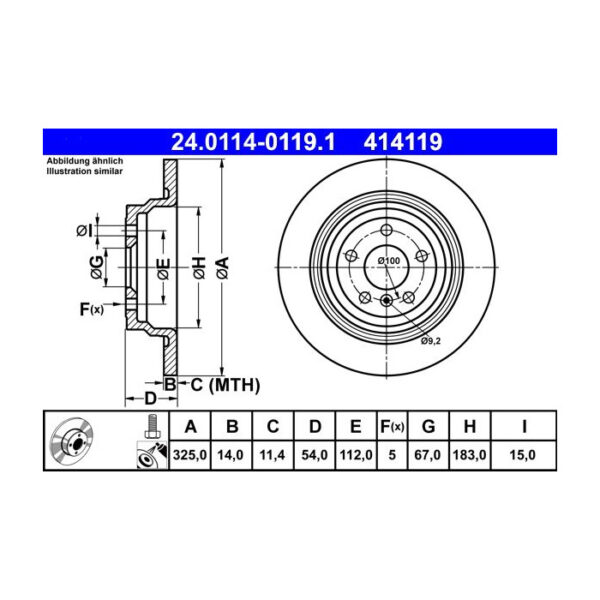

Technical specification
ApprovalE1 90R-02C0165/1070
Height54 mm
Bore diameter15 mm
Disc typeSolid
Thickness when new14 mm
Minimum (discard) thickness11.4 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter183 mm
Outside diameter325 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0114-0119.1
Fits OE / OEM numbers
166 423 00 12
A 166 423 00 12
1664230012
A1664230012
166 423 05 00
A 166 423 05 00
1664230500
A1664230500
Vehicle fitment
5 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ GLE | W166 | 250 d 4-matic (166.004), 300 d 4-matic (166.004) | 2015–2018 | 150 kW |
| MERCEDES-BENZ GLE | W166 | 350 d 4-matic (166.024) | 2015–2018 | 190 kW |
| MERCEDES-BENZ GLE Coupe | C292 | 350 d 4-matic (292.323, 292.324) | 2015–2019 | 190 kW |
| MERCEDES-BENZ M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| MERCEDES-BENZ M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
Product overview
ATE 24.0114-0119.1 is a pair of solid brake discs (rotors). Each disc is 325 mm in diameter and 14 mm thick when new, with a 54 mm hat height. The minimum (discard) thickness is 11.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0165/1070. Cross-referenced to Mercedes-Benz OE A 166 423 00 12 and 1 other OE number. Confirmed to fit 5 Australian-market variants; the full list is in the fitment table on this page.
