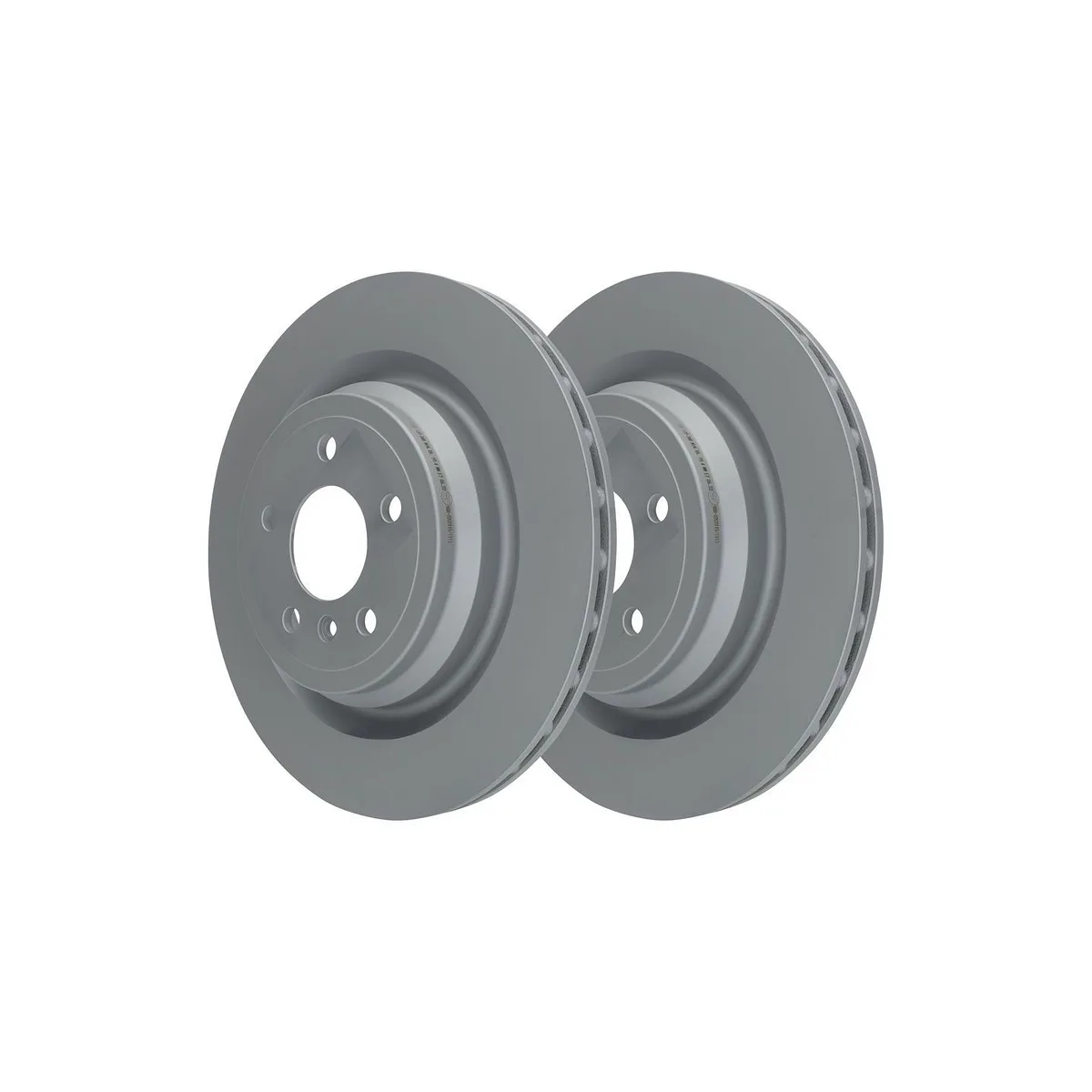

ATE Brake Disc Set (2 pcs) 24.0122-0288.1
Part No. 24.0122-0288.1
$296.00
incl. GST
12-month warranty
In stock — ships in 1–2 business days
Estimate delivery date
Technical specification
OE & OEM cross-reference
Supplier part number
24.0122-0288.1
Fits OE / OEM numbers
A 166 423 06 00
A1664230600
166 423 06 00
1664230600
A 166 423 01 12
A1664230112
166 423 01 12
1664230112
Vehicle fitment
8 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ GLE | W166 | 250 d 4-matic (166.004), 300 d 4-matic (166.004) | 2015–2018 | 150 kW |
| MERCEDES-BENZ GLE | W166 | 350 d 4-matic (166.024) | 2015–2018 | 190 kW |
| MERCEDES-BENZ GLE | W166 | 400 4-matic (166.056) | 2015–2018 | 245 kW |
| MERCEDES-BENZ GLE Coupe | C292 | 350 d 4-matic (292.323, 292.324) | 2015–2019 | 190 kW |
| MERCEDES-BENZ M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| MERCEDES-BENZ M-Class | W166 | ML 350 4-matic (166.057) | 2011–2015 | 225 kW |
| MERCEDES-BENZ M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
| MERCEDES-BENZ M-Class | W166 | ML 400 4-matic (166.056) | 2013–2015 | 245 kW |
Product overview

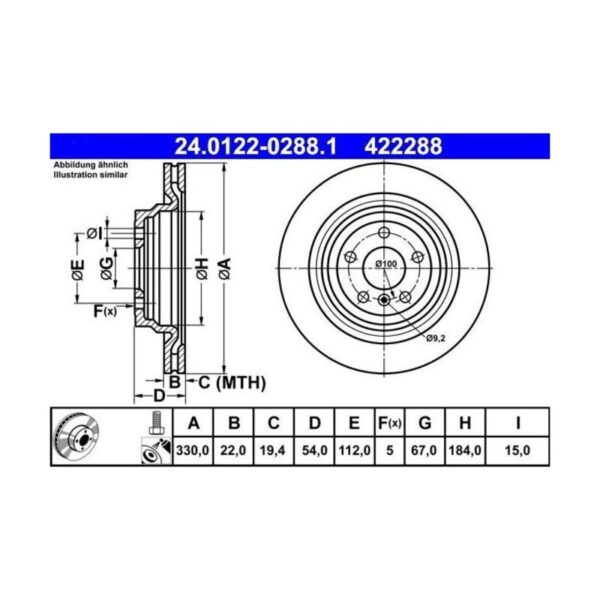

Introducing the ATE Brake Disc Set (2 pcs) 24.0122-0288.1, a high-performance brake disc set engineered for optimal safety and durability. This set boasts an outer diameter of 330mm, a robust brake disc thickness of 22mm, and a minimum thickness of 19.4mm, ensuring efficient heat dissipation under extreme braking conditions. The vented type brake disc, crafted from high carbon alloy, guarantees superior strength and resistance to wear and tear. The surface is expertly coated for additional protection against corrosion. The set comes with 5 precisely drilled holes for easy installation, along with bolts and screws.
