Zimmermann Brake Disc Set (2 pcs) 400.3684.20

Name: Zimmermann Brake Disc Set (2 pcs) 400.3684.20
Brand: Zimmermann
SKU: ZIM-00002
Price: 618.00 AUD
Availability: InStock

Part No. 400.3684.20

Low stock 8 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 19 variants listed for this part.

$618.00 incl. GST

Front axle 375 x 36 mm Fits 19 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

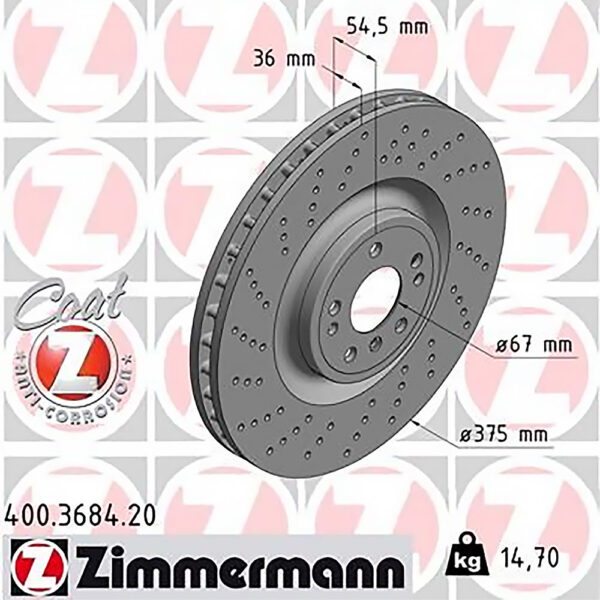

Technical specification

Stud holes5

Height54 mm

Part weight14.7 kg

Disc typeCross-drilled, Internally vented

Thickness when new36 mm

Minimum (discard) thickness33.4 mm

Hole pattern8/5

Iron gradeHigh-carbon cast iron

Outside diameter375 mm

Centre bore67 mm

Stud circle (PCD)112 mm

Surface finishCorrosion-protective coating

OE & OEM cross-reference

Supplier part number

400.3684.20

Fits OE / OEM numbers

166 421 09 12 A 166 421 09 12 1664210912 A1664210912 166 421 16 00 A 166 421 16 00 1664211600 A1664211600

Vehicle fitment

19 variants

Make & model	Chassis	Variant	Years	Power
Mercedes-Benz GL-Class	X166	GL 350 CDI / BlueTec 4-matic (166.823, 166.824)	2012–2015	190 kW
Mercedes-Benz GL-Class	X166	GL 500 4-matic (166.873), GL 550 4-matic (166.873)	2012–2015	320 kW
Mercedes-Benz GLE	W166	250 d 4-matic (166.004), 300 d 4-matic (166.004)	2015–2018	150 kW
Mercedes-Benz GLE	W166	350 d 4-matic (166.024)	2015–2018	190 kW
Mercedes-Benz GLE	W166	400 4-matic (166.056)	2015–2018	245 kW
Mercedes-Benz GLE	W166	500 4-matic (166.073), GLE 550 4-matic (166.073)	2015–2018	320 kW
Mercedes-Benz GLE	W166	500 e 4-matic (166.063), 550 e 4-matic (166.063)	2015–2018	325 kW
Mercedes-Benz GLE	W166	63 AMG S 4-matic (166.075), AMG 63 S 4-matic (166.075)	2015–2018	430 kW
Mercedes-Benz GLE	W166	AMG 43 4-matic (166.064)	2017–2018	287 kW
Mercedes-Benz GLE Coupe	C292	450 AMG 4-matic (292.364), 450 Sport AMG 4-matic (292.364)	2015–2019	270 kW
Mercedes-Benz GLS	X166	350 BlueTec / d 4-matic (166.824), 350 d 4-matic (166.824)	2015–2019	190 kW
Mercedes-Benz GLS	X166	500 4-matic (166.873), 550 4-matic (166.873)	2015–2019	335 kW
Mercedes-Benz M-Class	W166	ML 250 CDI / BlueTEC 4-matic (166.004, 166.003)	2011–2015	150 kW
Mercedes-Benz M-Class	W166	ML 350 4-matic (166.057)	2011–2015	225 kW
Mercedes-Benz M-Class	W166	ML 350 BlueTEC 4-matic (166.024, 166.023)	2011–2015	190 kW
Mercedes-Benz M-Class	W166	ML 63 AMG 4-matic (166.074)	2011–2015	386 kW
Mercedes-Benz M-Class	W166	ML 63 AMG 4-matic (166.074)	2011–2015	410 kW
Mercedes-Benz M-Class	W166	ML 500 4-matic (166.073), ML 550 4-matic (166.073)	2012–2015	300 kW
Mercedes-Benz M-Class	W166	ML 400 4-matic (166.056)	2013–2015	245 kW
No vehicles match your search.

Owner guides for these models: GL-Class X166 owner guide · GLE W166 owner guide · GLE Coupe C292 owner guide · GLS X166 owner guide · M-Class W166 owner guide

Product overview

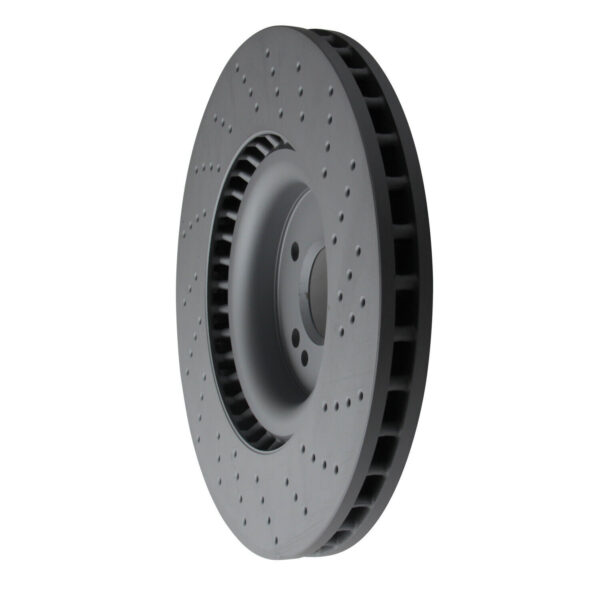

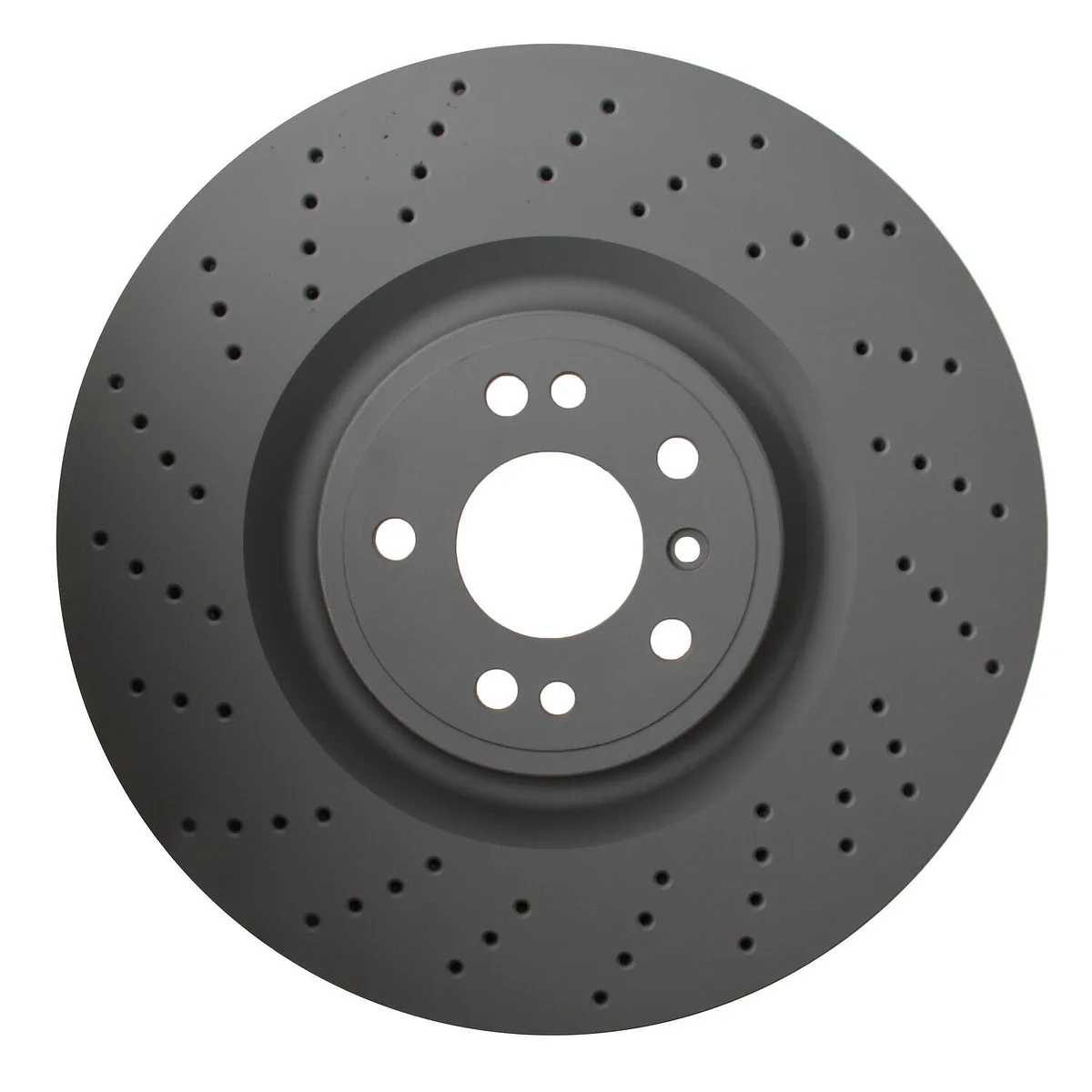

Zimmermann 400.3684.20 is a pair of cross-drilled, internally vented brake discs (rotors). Each disc is 375 mm in diameter and 36 mm thick when new, with a 54 mm hat height. The minimum (discard) thickness is 33.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. Cross-referenced to Mercedes-Benz OE A 166 421 09 12 and 1 other OE number. Confirmed to fit 19 Australian-market variants; the full list is in the fitment table on this page.
