Brembo Brake Disc Set (2 pcs) 09.B848.33
Part No. 09.B848.33
Check this part fits your car
Select your vehicle and we will confirm it against the 14 variants listed for this part.
$1,466.00
incl. GST
Front axle
390 x 36 mm
Fits 14 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

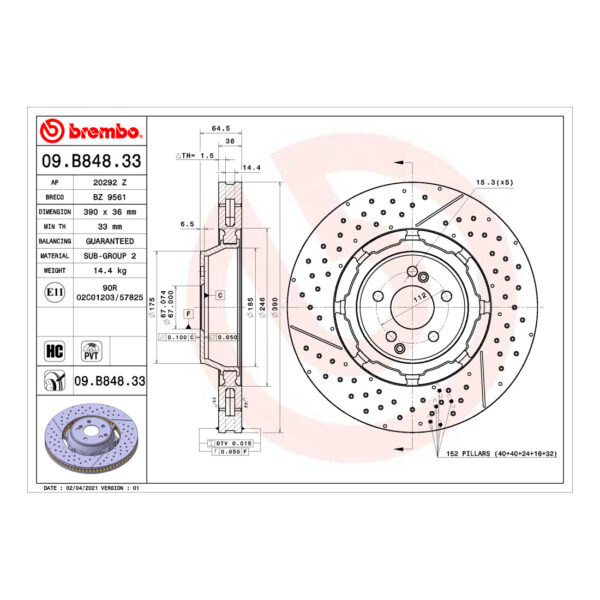

Technical specification
Height64.5 mm
Disc typeInternally vented
Thickness when new36 mm
Minimum (discard) thickness33 mm
Iron gradeHigh-carbon cast iron
Outside diameter390 mm
Stud holes5
Centre bore67 mm
Surface finishCorrosion-protective coating
OE & OEM cross-reference
Supplier part number
09.B848.33
Fits OE / OEM numbers
231 421 06 12
A 231 421 06 12
2314210612
A2314210612
231 421 18 12
A 231 421 18 12
2314211812
A2314211812
Vehicle fitment
14 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz AMG GT | X290 | 63 S 4-matic+ (290.689), AMG GT 63 S 4-matic+ (290.689) | 2018–2021 | 470 kW |
| Mercedes-Benz AMG GT | X290 | 53 EQ Boost 4-matic+ (290.661), AMG GT 53 4-matic+ (290.661) | 2018–now | 320 kW |
| Mercedes-Benz C-Class | W205 | AMG C 63 S (205.087) | 2014–now | 375 kW |
| Mercedes-Benz C-Class Convertible | A205 | AMG C 63 S (205.487) | 2016–now | 375 kW |
| Mercedes-Benz C-Class Coupe | C205 | AMG C 63 S (205.387) | 2016–now | 375 kW |
| Mercedes-Benz C-Class Estate | S205 | AMG C 63 S (205.287) | 2015–now | 375 kW |
| Mercedes-Benz E-Class | W213 | AMG E 63 4-matic+ (213.088) | 2017–now | 420 kW |
| Mercedes-Benz E-Class | W213 | AMG E 63 S 4-matic+ (213.089) | 2017–now | 450 kW |
| Mercedes-Benz GLC | X253 | AMG 63 S 4-matic+ (253.989) | 2017–now | 375 kW |
| Mercedes-Benz GLC Coupe | C253 | AMG 63 S 4-matic+ (253.389) | 2017–now | 375 kW |
Owner guides for these models: AMG GT X290 owner guide · C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide · E-Class W213 owner guide · GLC X253 owner guide · GLC Coupe C253 owner guide · SL R231 owner guide
Product overview

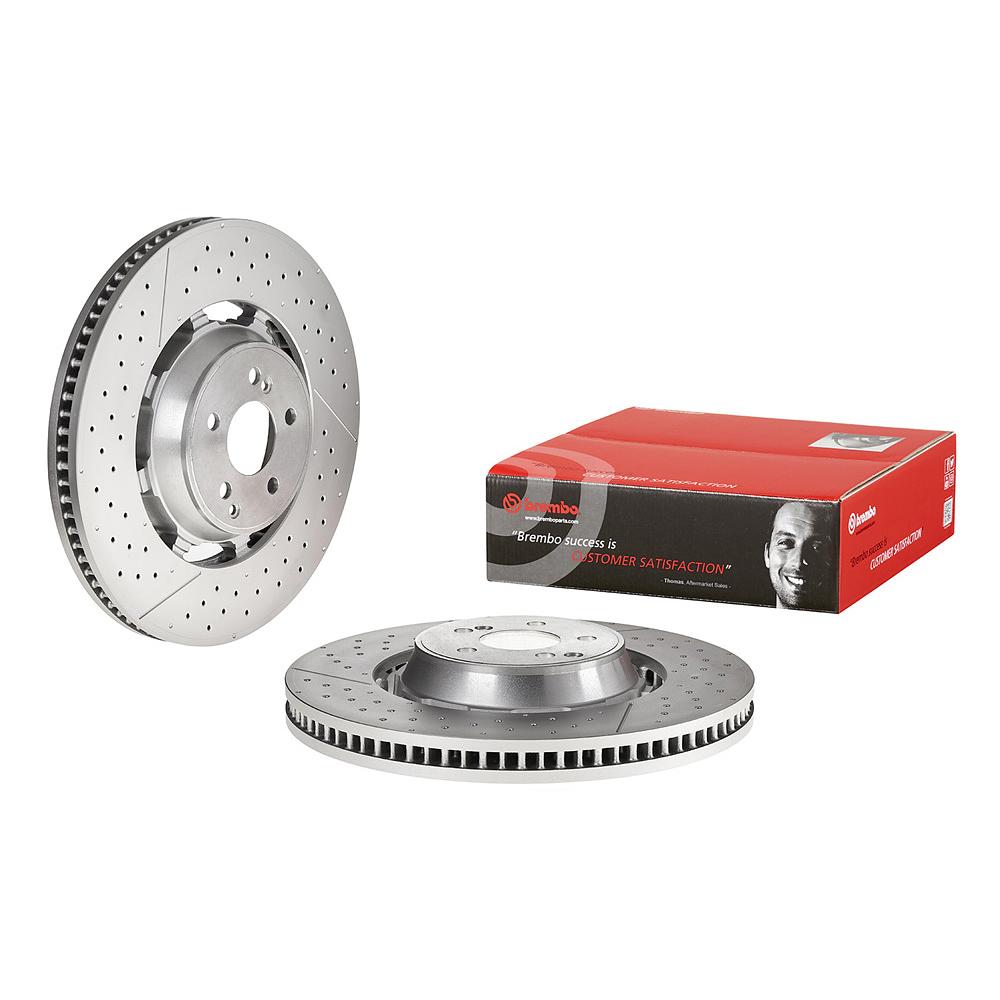

Brembo 09.B848.33 is a pair of internally vented brake discs (rotors). Each disc is 390 mm in diameter and 36 mm thick when new, with a 64.5 mm hat height. The minimum (discard) thickness is 33 mm. Each disc has 5 stud holes, with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. Cross-referenced to Mercedes-Benz OE A 231 421 06 12 and 1 other OE number. Confirmed to fit 14 Australian-market variants; the full list is in the fitment table on this page.
