ATE Brake Disc Set (2 pcs) 24.0122-0302.1
Part No. 24.0122-0302.1
Check this part fits your car
Select your vehicle and we will confirm it against the 35 variants listed for this part.
$490.00
incl. GST
Rear axle
300 x 22 mm
Fitting bolts
Fits 35 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

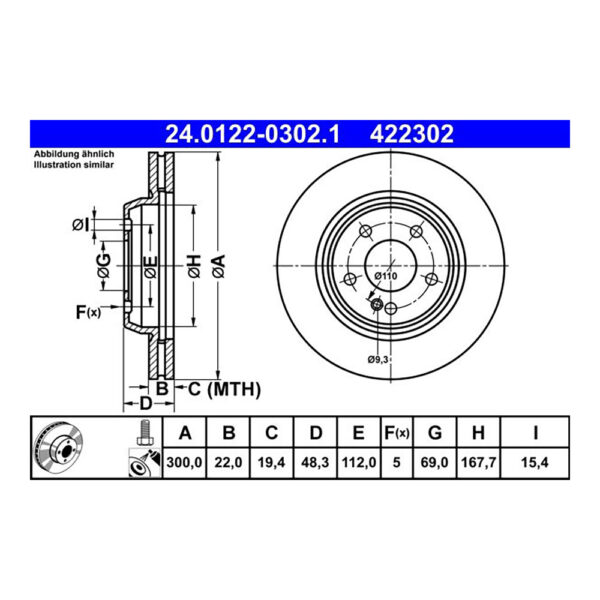

Technical specification
ApprovalE1 90R-02C0115/1044
Height48.3 mm
Bore diameter15.4 mm
Disc typeVented
Thickness when new22 mm
Minimum (discard) thickness19.4 mm
Iron gradeHigh-carbon cast iron
Inside diameter167.7 mm
Outside diameter300 mm
Stud holes5
Centre bore69 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0122-0302.1
Fits OE / OEM numbers
000 423 18 12
A 000 423 18 12
0004231812
A0004231812
Vehicle fitment
35 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | C 250 BlueTEC / d (205.008, 205.006), C 250 d (205.008, 205.006) | 2014–2018 | 150 kW |
| Mercedes-Benz C-Class | W205 | C 250 (205.045) | 2014–2018 | 155 kW |
| Mercedes-Benz C-Class | W205 | C 300 BlueTEC Hybrid / h (205.012) | 2014–2018 | 170 kW |
| Mercedes-Benz C-Class | W205 | AMG C 63 S (205.087) | 2014–now | 375 kW |
| Mercedes-Benz C-Class | W205 | C 350 e (205.047) | 2015–2018 | 205 kW |
| Mercedes-Benz C-Class | W205 | C 300 (205.048) | 2015–2018 | 180 kW |
| Mercedes-Benz C-Class | W205 | C 300 (205.083) | 2018–now | 190 kW |
| Mercedes-Benz C-Class | W205 | C 300 e (205.053) | 2019–now | 235 kW |
| Mercedes-Benz C-Class | W205 | C 200 (205.080) | 2019–now | 150 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 (205.442) | 2016–2018 | 135 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide · E-Class W213 owner guide · E-Class All-Terrain S213 owner guide · E-Class Convertible A238 owner guide · E-Class Coupe C238 owner guide
Product overview

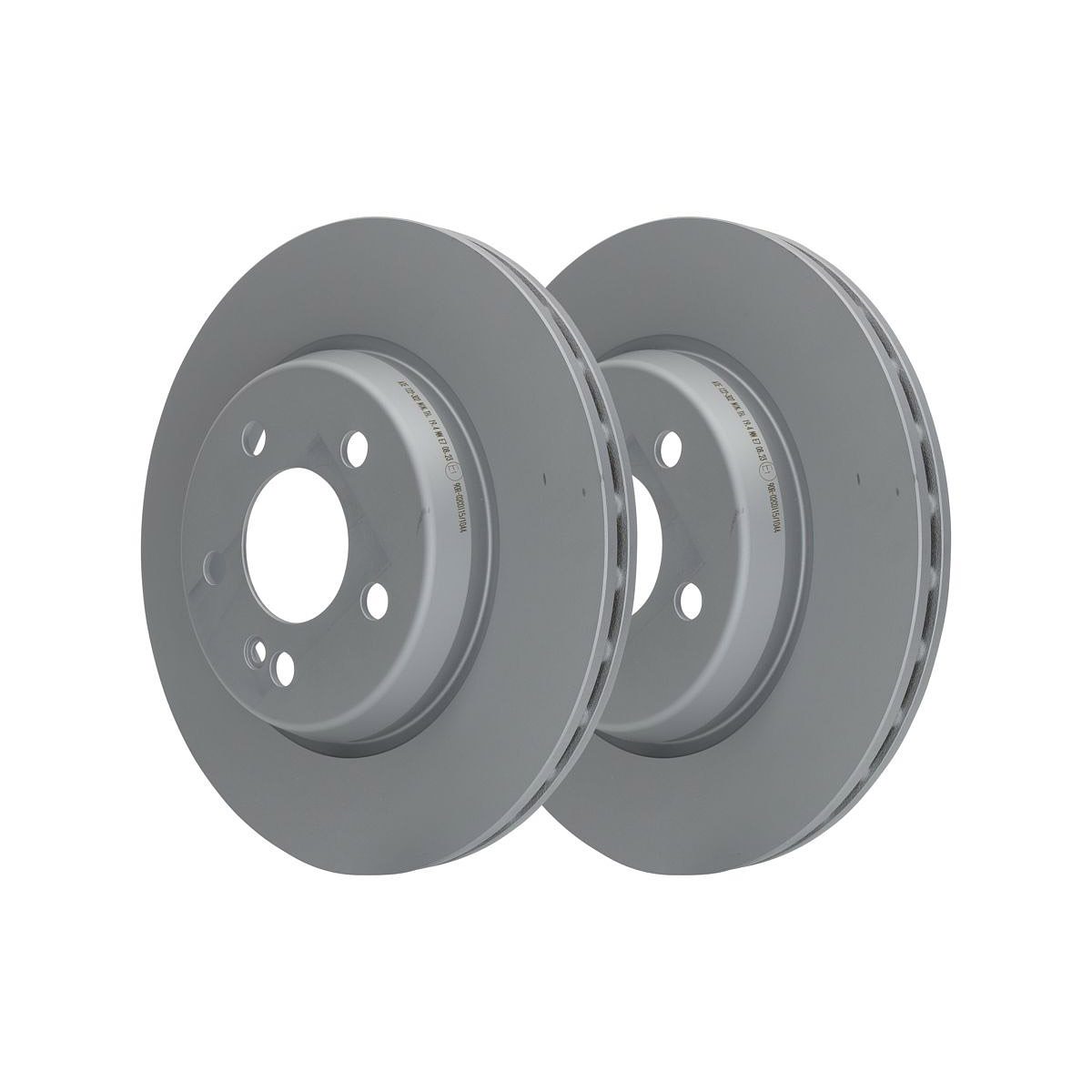

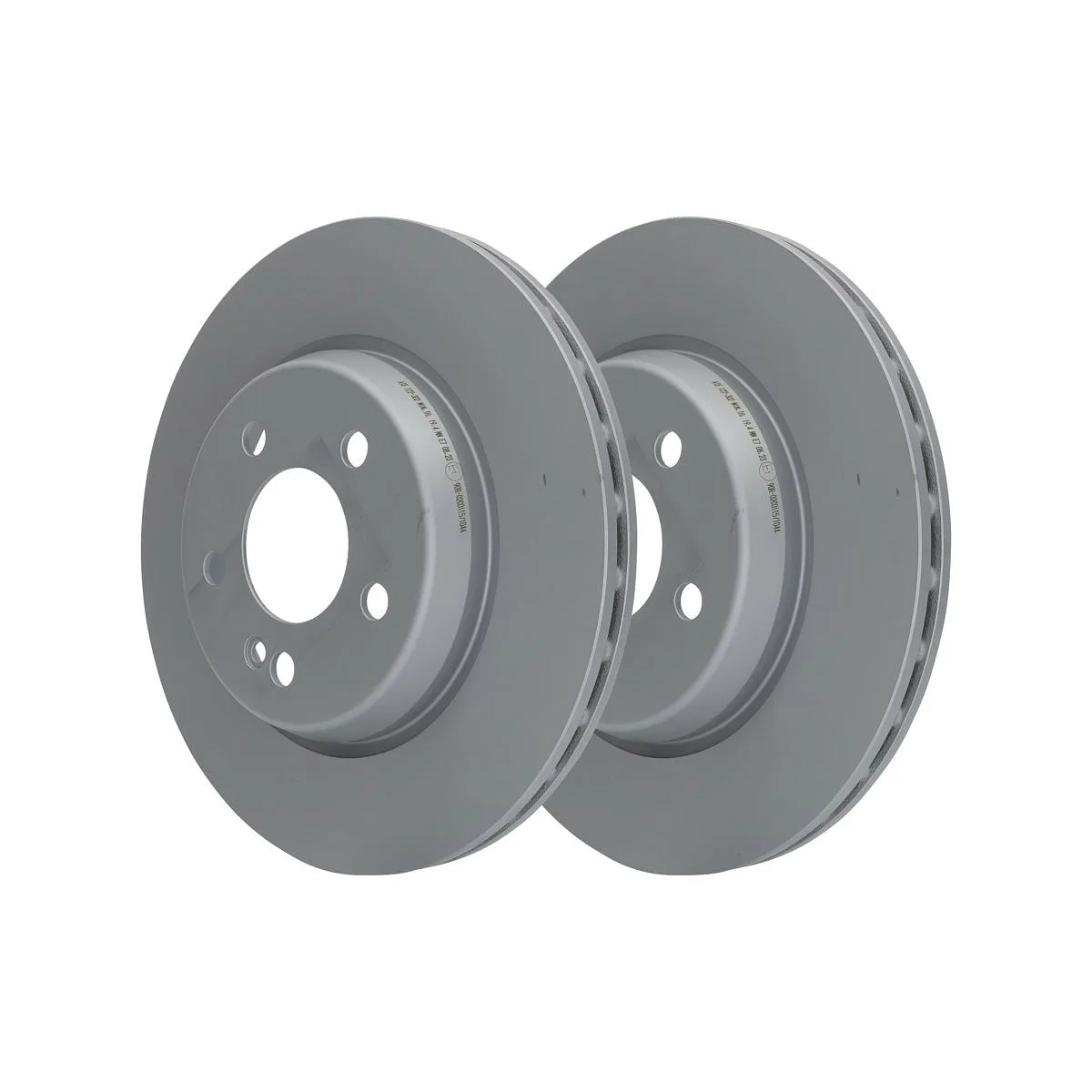

ATE 24.0122-0302.1 is a pair of vented brake discs (rotors). Each disc is 300 mm in diameter and 22 mm thick when new, with a 48.3 mm hat height. The minimum (discard) thickness is 19.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 69 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0115/1044. Cross-referenced to Mercedes-Benz OE A 000 423 18 12. Confirmed to fit 35 Australian-market variants; the full list is in the fitment table on this page.
