Brembo Brake Disc Set (2 pcs) 09.B913.11
Part No. 09.B913.11
Check this part fits your car
Select your vehicle and we will confirm it against the 8 variants listed for this part.
$560.00
incl. GST
Front axle
350 x 32 mm
Fitting bolts
Fits 8 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Height51 mm
Disc typeSlotted and cross-drilled, Internally vented
Thickness when new32 mm
Minimum (discard) thickness30 mm
Iron gradeHigh-carbon cast iron
Outside diameter350 mm
Stud holes5
Centre bore67 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
09.B913.11
Fits OE / OEM numbers
176 421 01 12
A 176 421 01 12
1764210112
A1764210112
176 421 02 12
A 176 421 02 12
1764210212
A1764210212
Vehicle fitment
8 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 45 AMG 4-matic (176.052) | 2013–2018 | 265 kW |
| Mercedes-Benz A-Class | W176 | A 45 AMG 4-matic (176.052), AMG A 45 4-matic (176.052) | 2015–2018 | 280 kW |
| Mercedes-Benz CLA Coupe | C117 | CLA 45 AMG 4-matic (117.352) | 2013–2019 | 265 kW |
| Mercedes-Benz CLA Coupe | C117 | AMG CLA 45 4-matic (117.352) | 2015–2019 | 280 kW |
| Mercedes-Benz CLA Shooting Brake | X117 | CLA 45 AMG 4-matic (117.952) | 2015–2015 | 265 kW |
| Mercedes-Benz CLA Shooting Brake | X117 | AMG CLA 45 4-matic (117.952) | 2015–2019 | 280 kW |
| Mercedes-Benz GLA-Class | X156 | GLA 45 AMG 4-matic (156.952) | 2014–now | 265 kW |
| Mercedes-Benz GLA-Class | X156 | AMG GLA 45 4-matic (156.952) | 2015–now | 280 kW |
Owner guides for these models: A-Class W176 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview

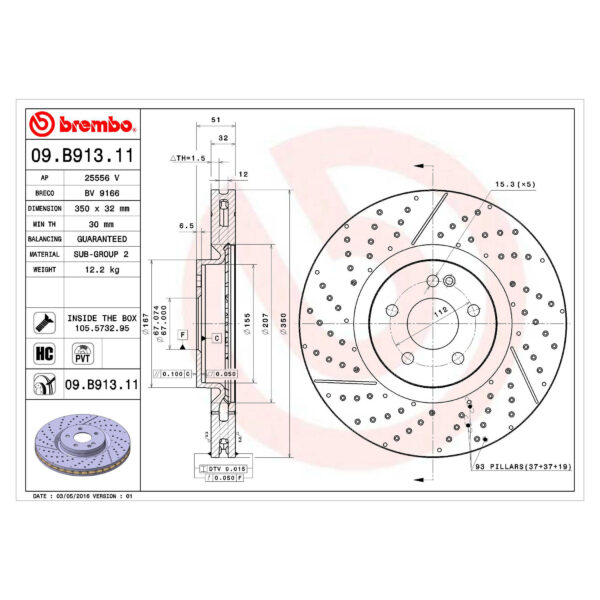

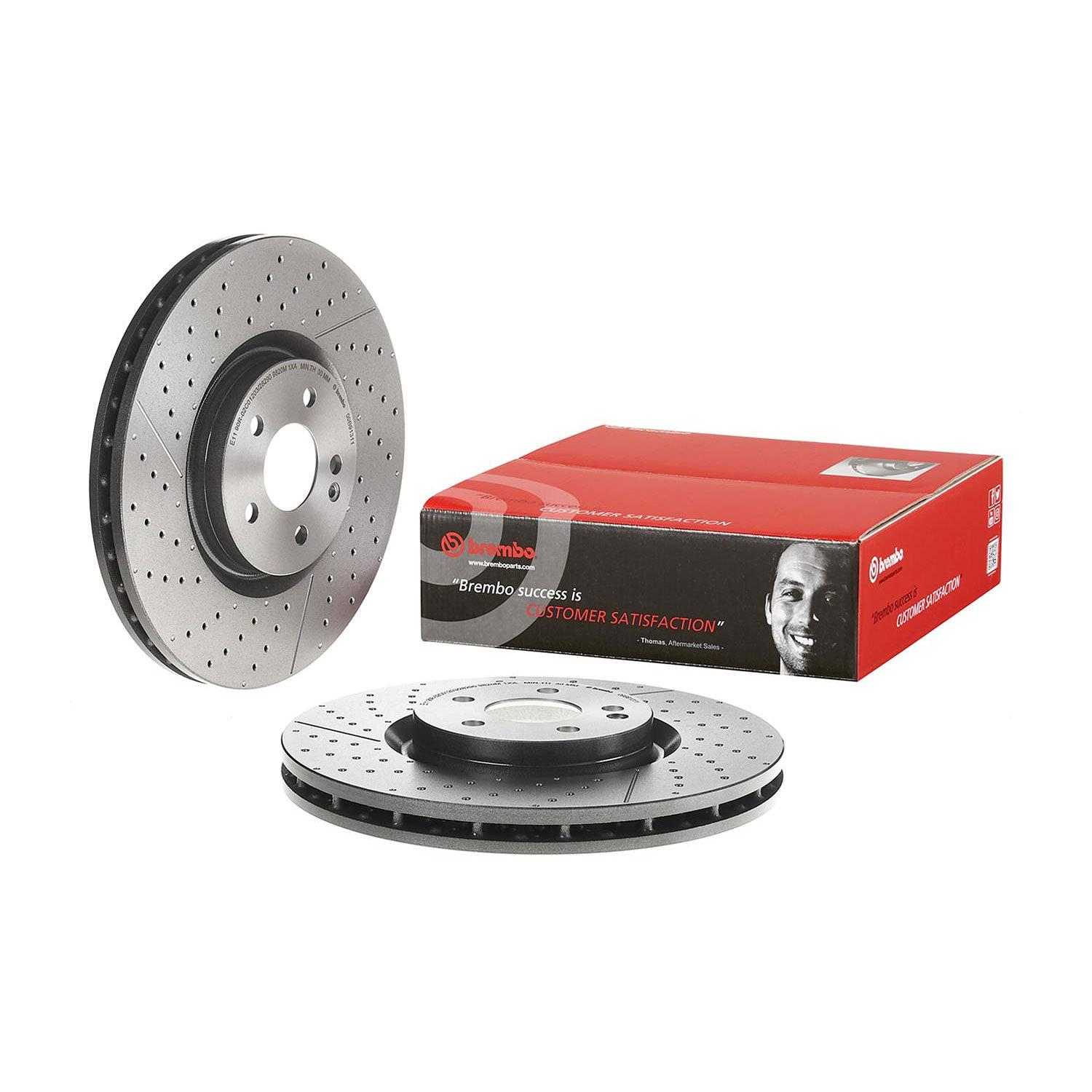

Brembo 09.B913.11 is a pair of slotted and cross-drilled, internally vented brake discs (rotors). Each disc is 350 mm in diameter and 32 mm thick when new, with a 51 mm hat height. The minimum (discard) thickness is 30 mm. Each disc has 5 stud holes, with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 176 421 01 12 and 1 other OE number. Confirmed to fit 8 Australian-market variants; the full list is in the fitment table on this page.
