ATE Brake Disc Set (2 pcs) 24.0128-0262.1
Part No. 24.0128-0262.1
Check this part fits your car
Select your vehicle and we will confirm it against the 29 variants listed for this part.
$454.00
incl. GST
Front axle
295 x 28 mm
Fitting bolts
Fits 29 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

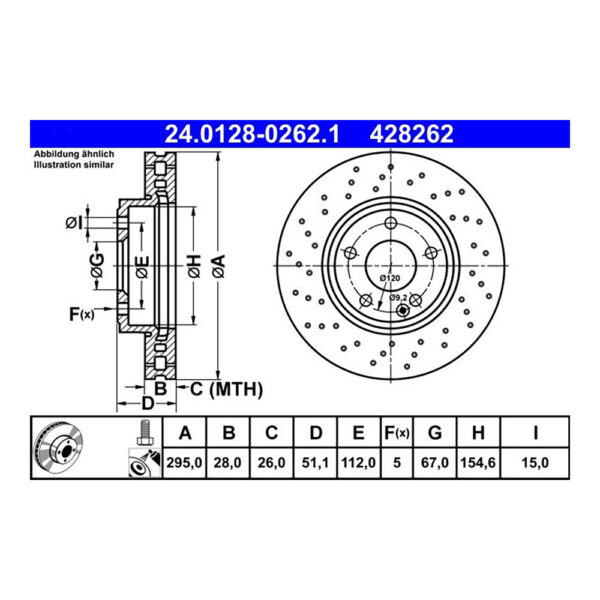

Technical specification
Height51.1 mm
Bore diameter15 mm
Disc typeCross-drilled and vented
Thickness when new28 mm
Minimum (discard) thickness26 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter154.6 mm
Outside diameter295 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0128-0262.1
Fits OE / OEM numbers
246 421 25 12
A 246 421 25 12
2464212512
A2464212512
Vehicle fitment
29 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 180 CDI (176.000) | 2012–2014 | 80 kW |
| Mercedes-Benz A-Class | W176 | A 180 CDI / d (176.012) | 2012–2018 | 80 kW |
| Mercedes-Benz A-Class | W176 | A 200 (176.043), A 200 Turbo Urban Style (176.043) | 2012–2018 | 115 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI (176.001) | 2012–2014 | 100 kW |
| Mercedes-Benz A-Class | W176 | A 180 (176.042) | 2012–2018 | 90 kW |
| Mercedes-Benz A-Class | W176 | A 45 AMG 4-matic (176.052) | 2013–2018 | 265 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI / d (176.008) | 2014–2018 | 100 kW |
| Mercedes-Benz A-Class | W176 | A 45 AMG 4-matic (176.052), AMG A 45 4-matic (176.052) | 2015–2018 | 280 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 (246.242) | 2011–2018 | 90 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 CDI (246.200) | 2011–2014 | 80 kW |
Owner guides for these models: A-Class W176 owner guide · B-Class Sports Tourer W246, W242 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview

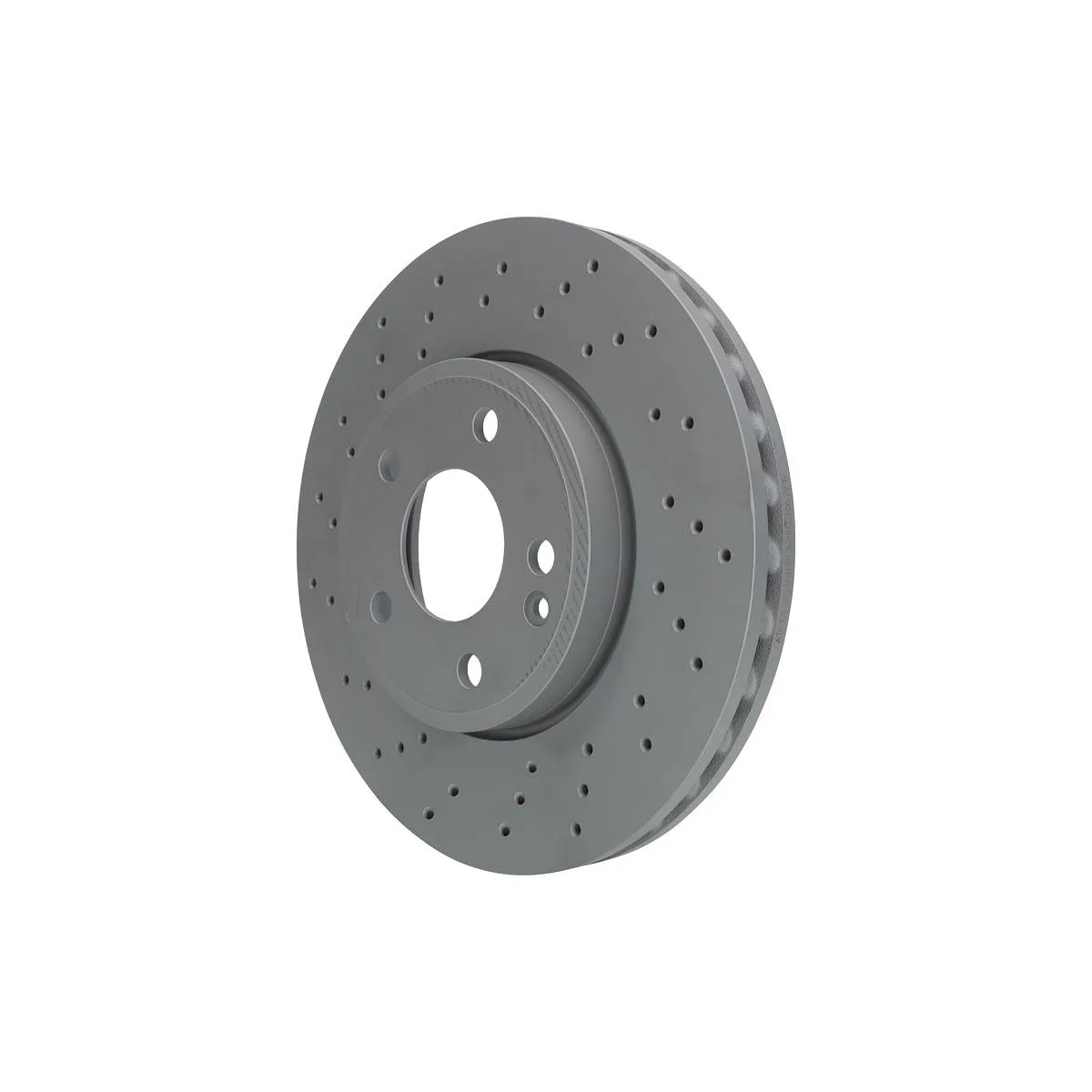

ATE 24.0128-0262.1 is a pair of cross-drilled, vented brake discs (rotors). Each disc is 295 mm in diameter and 28 mm thick when new, with a 51.1 mm hat height. The minimum (discard) thickness is 26 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 246 421 25 12. Confirmed to fit 29 Australian-market variants; the full list is in the fitment table on this page.
