Brembo Brake Disc Set (2 pcs) 09.D339.11
Part No. 09.D339.11
Check this part fits your car
Select your vehicle and we will confirm it against the 3 variants listed for this part.
$564.00
incl. GST
Rear axle
360 x 26 mm
Fitting bolts
Fits 3 vehicle variants
This part is out of stock and we cannot confirm when it will be back. Ask us about this part and we will reply with what we know.
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

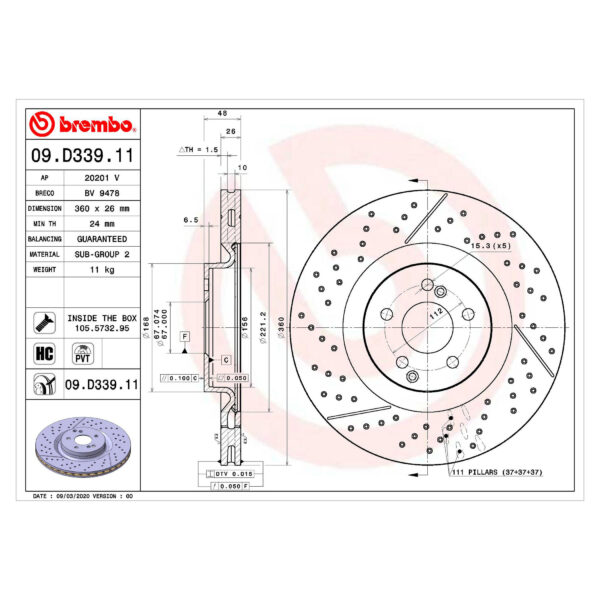

Technical specification
Height48 mm
Disc typeSlotted and cross-drilled, Internally vented
Thickness when new26 mm
Minimum (discard) thickness24 mm
Iron gradeHigh-carbon cast iron
Outside diameter360 mm
Stud holes5
Centre bore67 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
09.D339.11
Fits OE / OEM numbers
253 423 00 00
A 253 423 00 00
2534230000
A2534230000
Vehicle fitment
3 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ AMG GT | X290 | 53 EQ Boost 4-matic+ (290.661), AMG GT 53 4-matic+ (290.661) | 2018–now | 320 kW |
| MERCEDES-BENZ GLC | X253 | AMG 63 S 4-matic+ (253.989) | 2017–now | 375 kW |
| MERCEDES-BENZ GLC Coupe | C253 | AMG 63 S 4-matic+ (253.389) | 2017–now | 375 kW |
Product overview

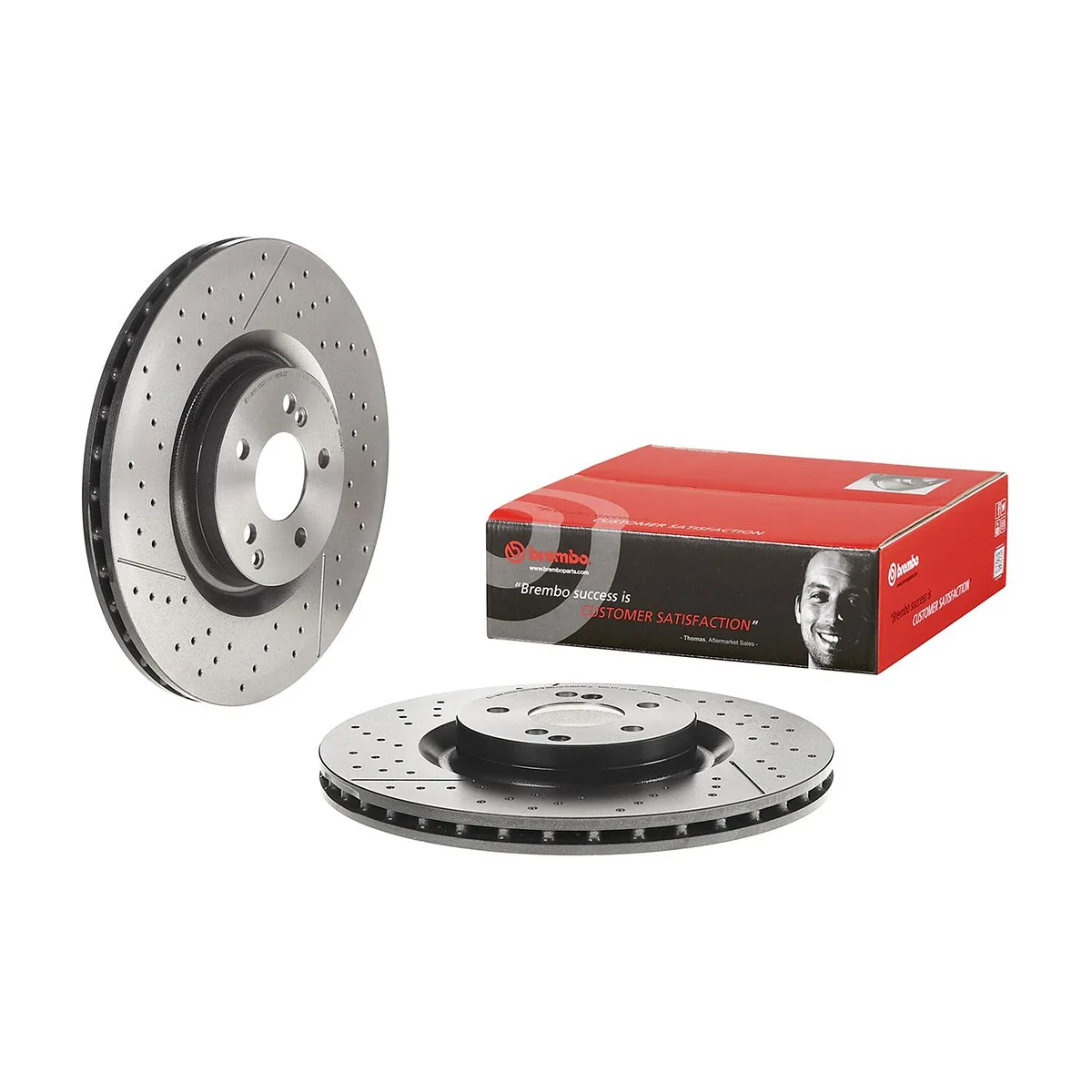

Brembo 09.D339.11 is a pair of slotted and cross-drilled, internally vented brake discs (rotors). Each disc is 360 mm in diameter and 26 mm thick when new, with a 48 mm hat height. The minimum (discard) thickness is 24 mm. Each disc has 5 stud holes, with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 253 423 00 00. Confirmed to fit 3 Australian-market variants; the full list is in the fitment table on this page.
