Zimmermann 292mm Brake Disc Set (2 pcs) 150.3424.20

Name: Zimmermann 292mm Brake Disc Set (2 pcs) 150.3424.20
Brand: Zimmermann
SKU: ZIM-00057
Price: 340.00 AUD
Availability: InStock

Part No. 150.3424.20

Low stock 4 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 10 variants listed for this part.

$340.00 incl. GST

Front axle 292 x 22 mm Fits 10 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter292 mm

Thickness when new22 mm

Height73 mm

Stud holes5

Stud circle (PCD)120 mm

Centre bore79 mm

ApprovalECE R90 approved

Minimum (discard) thickness20.4 mm

Part weight7.02 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

150.3424.20

Fits OE / OEM numbers

3411 6 764 641 3411 6 854 997 3411 6 854 997 3411 6 764 641

Vehicle fitment 10 variants

Make & model	Chassis	Variant	Years	Power
BMW 1 Series	E87	120 d	2004–2011	120 kW
BMW 1 Series	E87	120 i	2004–2007	110 kW
BMW 1 Series	E87	118 i	2004–2007	95 kW
BMW 1 Series	E87	118 i	2006–2011	105 kW
BMW 1 Series	E87	118 i	2006–2011	100 kW
BMW 1 Series	E87	120 i	2007–2011	115 kW
BMW 1 Series	E87	120 i	2007–2011	125 kW
BMW 1 Series Convertible	E88	118 d	2008–2013	105 kW
BMW 3 Series	E90	320 i	2004–2007	110 kW
BMW 3 Series	E90	318 i	2005–2007	95 kW
No vehicles match your search.

Product overview

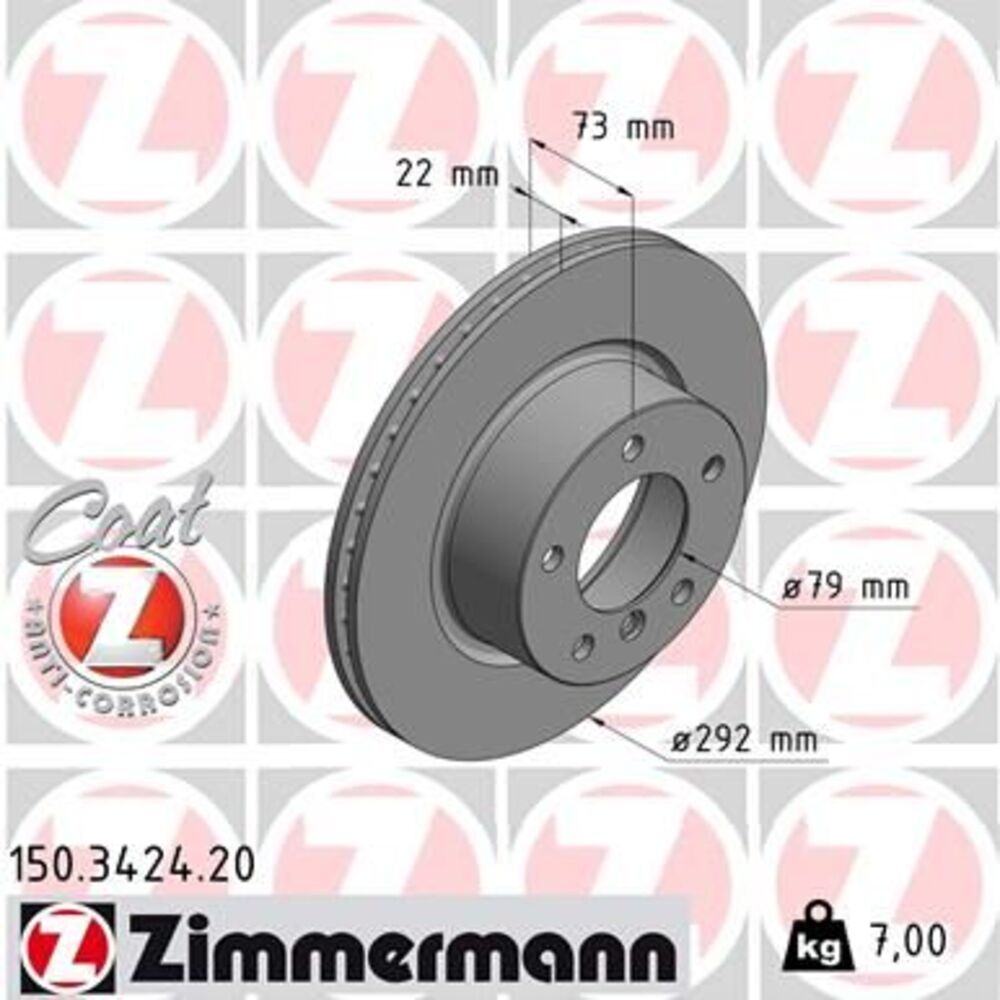

Zimmermann 150.3424.20 is a pair of internally vented brake discs (rotors). Each disc is 292 mm in diameter and 22 mm thick when new, with a 73 mm hat height. The minimum (discard) thickness is 20.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 764 641 and 1 other OE number. Confirmed to fit 10 Australian-market variants; the full list is in the fitment table on this page.
