Zimmermann 300mm Brake Disc Set (2 pcs) 150.3427.20
Part No. 150.3427.20
Check this part fits your car
Select your vehicle and we will confirm it against the 25 variants listed for this part.
$342.00
incl. GST
Front axle
300 x 24 mm
Fits 25 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter300 mm
Thickness when new24 mm
Height74 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight8 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3427.20
Fits OE / OEM numbers
3411 6 854 998
3411 6 764 643
3411 6 772 669
3411 6 783 752
3411 6 772 669
3411 6 764 643
3411 6 854 998
Vehicle fitment
25 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series | E87 | 120 i | 2007–2011 | 115 kW |
| BMW 1 Series | E87 | 120 i | 2007–2011 | 125 kW |
| BMW 1 Series | E87 | 123 d | 2007–2011 | 150 kW |
| BMW 1 Series Convertible | E88 | 125 i | 2007–2013 | 160 kW |
| BMW 1 Series Convertible | E88 | 120 i | 2008–2013 | 120 kW |
| BMW 1 Series Convertible | E88 | 120 i | 2008–2013 | 115 kW |
| BMW 1 Series Coupe | E82 | 125 i | 2008–2013 | 160 kW |
| BMW 1 Series Coupe | E82 | 120 i | 2009–2013 | 115 kW |
| BMW 3 Series | E90 | 320 d | 2004–2007 | 110 kW |
| BMW 3 Series | E90 | 320 d | 2004–2011 | 120 kW |
Product overview

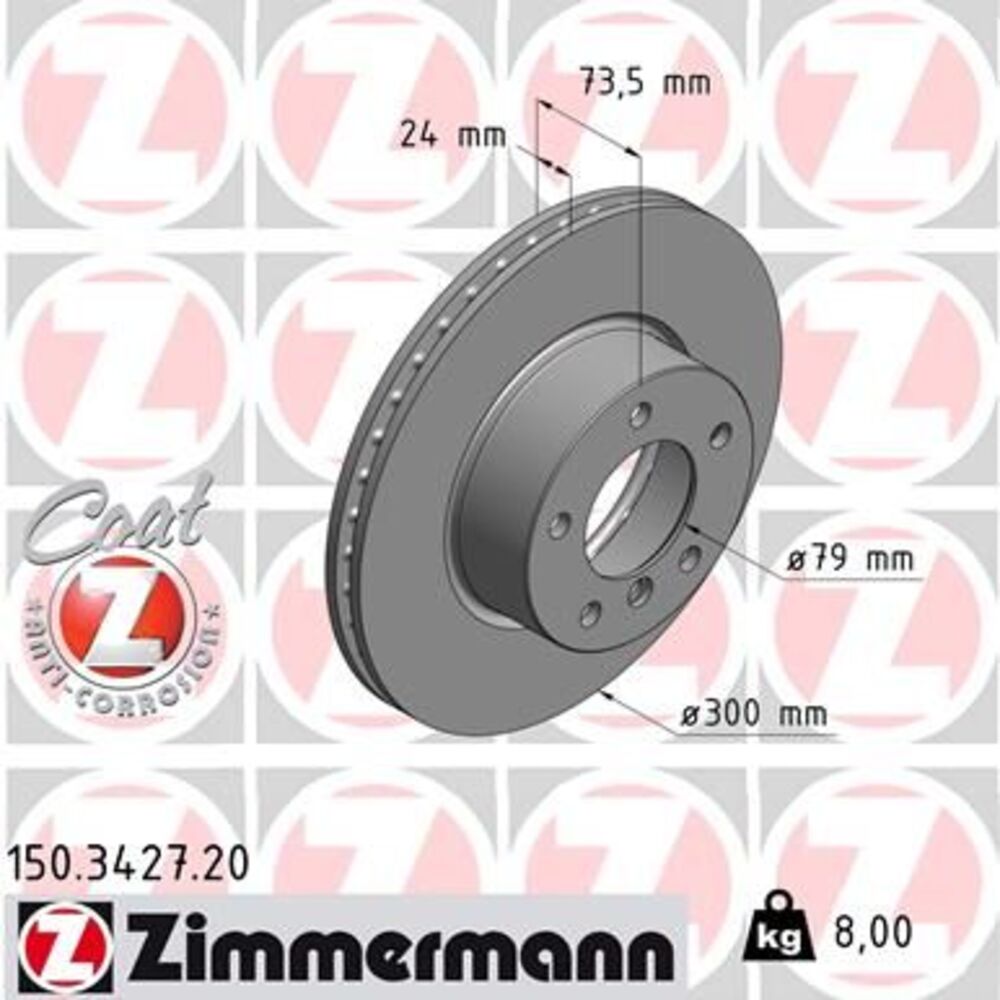

Zimmermann 150.3427.20 is a pair of internally vented brake discs (rotors). Each disc is 300 mm in diameter and 24 mm thick when new, with a 74 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 854 998 and 3 other OE numbers. Confirmed to fit 25 Australian-market variants; the full list is in the fitment table on this page.
