Zimmermann 294mm Brake Disc Set (2 pcs) 150.3436.20
Part No. 150.3436.20
Check this part fits your car
Select your vehicle and we will confirm it against the 4 variants listed for this part.
$346.00
incl. GST
Rear axle
294 x 19 mm
Fits 4 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeExternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter294 mm
Thickness when new19 mm
Height75 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness17.4 mm
Part weight6.5 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3436.20
Fits OE / OEM numbers
3421 6 754 137
3421 6 766 219
3421 6 794 303
Vehicle fitment
4 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW Z4 Coupe | E86 | 3.0 si | 2006–2008 | 195 kW |
| BMW Z4 Roadster | E85 | 3.0 i | 2002–2005 | 170 kW |
| BMW Z4 Roadster | E85 | 2.5 si | 2006–2008 | 160 kW |
| BMW Z4 Roadster | E85 | 3.0 si | 2006–2008 | 195 kW |
Product overview

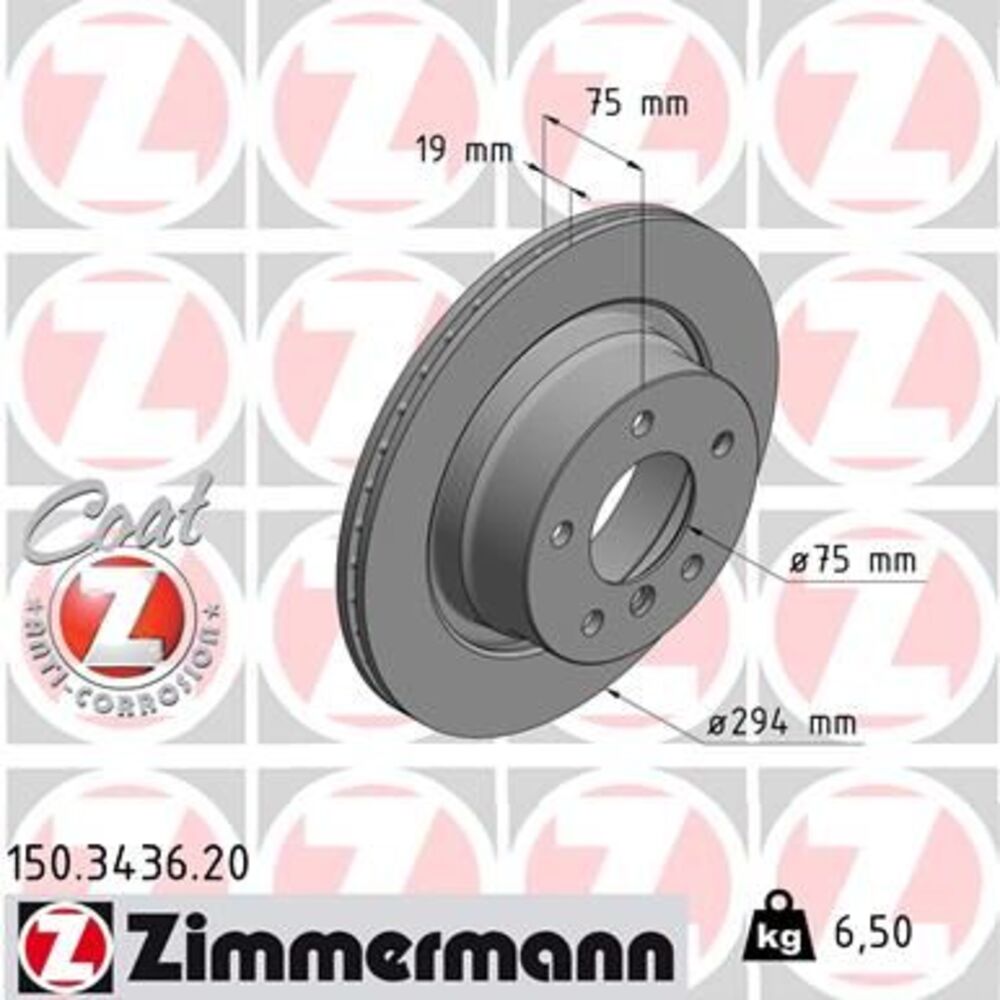

Zimmermann 150.3436.20 is a pair of externally vented brake discs (rotors). Each disc is 294 mm in diameter and 19 mm thick when new, with a 75 mm hat height. The minimum (discard) thickness is 17.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 6 754 137 and 2 other OE numbers. Confirmed to fit 4 Australian-market variants; the full list is in the fitment table on this page.
