Zimmermann 325mm Brake Disc Set (2 pcs) 150.1294.20
Part No. 150.1294.20
Check this part fits your car
Select your vehicle and we will confirm it against the 8 variants listed for this part.
$356.00
incl. GST
Front axle
325 x 25 mm
Fits 8 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter325 mm
Thickness when new25 mm
Height52 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalECE R90 approved
Minimum (discard) thickness23.4 mm
Part weight9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1294.20
Fits OE / OEM numbers
3410 1 166 071
3411 6 769 305
3411 6 855 156
3411 6 864 047
Vehicle fitment
8 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E46 | 330 d | 1999–2005 | 135 kW |
| BMW 3 Series | E46 | 330 i, 330 i M Sport, 330 i Rear-Wheel Drive | 2000–2005 | 170 kW |
| BMW 3 Series | E46 | 330 d | 2003–2005 | 150 kW |
| BMW 3 Series Convertible | E46 | 330 Ci | 2000–2006 | 170 kW |
| BMW 3 Series Coupe | E46 | 330 Ci | 2000–2006 | 170 kW |
| BMW 3 Series Touring | E46 | 330 i | 2000–2005 | 170 kW |
| BMW Z4 Coupe | E86 | 3.0 si | 2006–2008 | 195 kW |
| BMW Z4 Roadster | E85 | 3.0 si | 2006–2008 | 195 kW |
Product overview

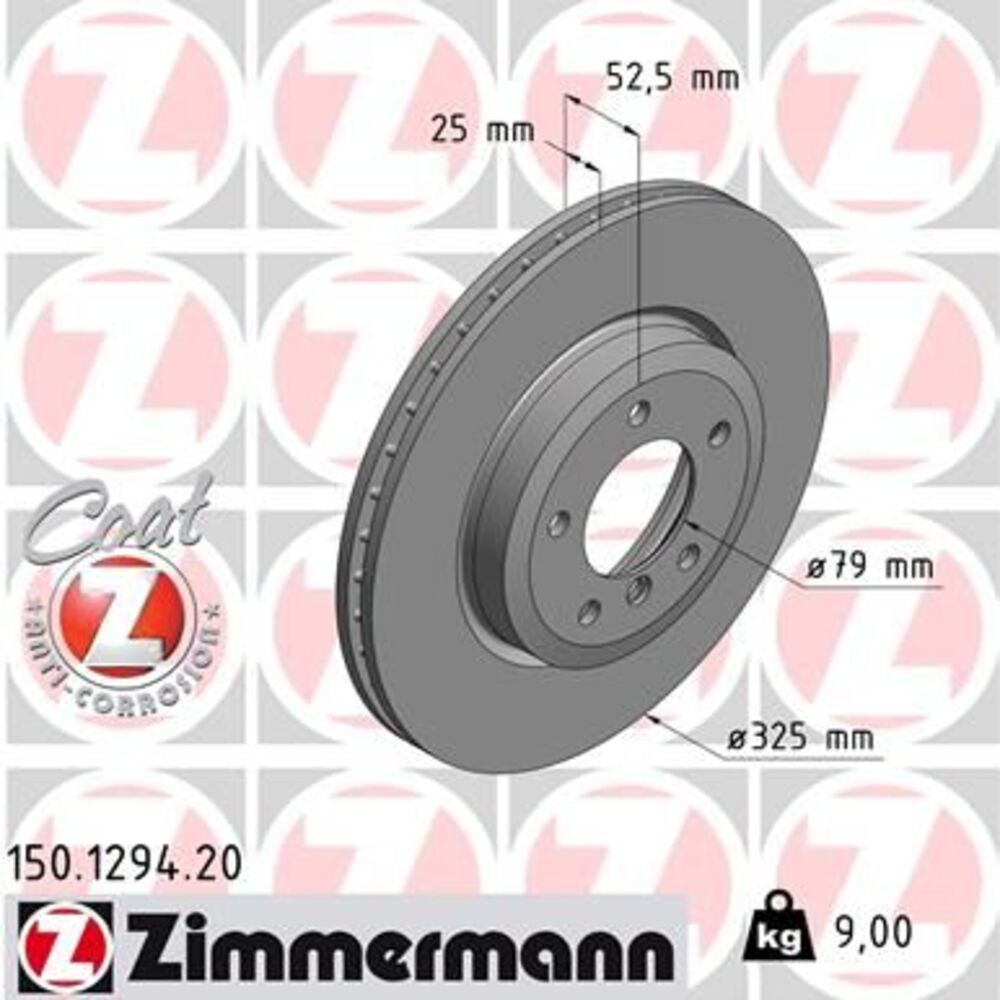

Zimmermann 150.1294.20 is a pair of internally vented brake discs (rotors). Each disc is 325 mm in diameter and 25 mm thick when new, with a 52 mm hat height. The minimum (discard) thickness is 23.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3410 1 166 071 and 3 other OE numbers. Confirmed to fit 8 Australian-market variants; the full list is in the fitment table on this page.
