Zimmermann 296mm Brake Disc Set (2 pcs) 150.1284.20

Name: Zimmermann 296mm Brake Disc Set (2 pcs) 150.1284.20
Brand: Zimmermann
SKU: ZIM-00021
Price: 284.00 AUD
Availability: InStock

Part No. 150.1284.20

Low stock 4 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 6 variants listed for this part.

$284.00 incl. GST

Front axle 296 x 22 mm Fits 6 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter296 mm

Thickness when new22 mm

Height76 mm

Stud holes5

Stud circle (PCD)120 mm

Centre bore79 mm

ApprovalECE R90 approved

Minimum (discard) thickness20.4 mm

Part weight7.4 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

150.1284.20

Fits OE / OEM numbers

3411 1 163 013 3411 1 163 081 3411 1 164 839 3411 6 767 061

Vehicle fitment

6 variants

Make & model	Chassis	Variant	Years	Power
BMW 5 Series	E39	523 i	1995–2000	125 kW
BMW 5 Series	E39	528 i	1995–2000	142 kW
BMW 5 Series	E39	520 i	1996–2003	110 kW
BMW 5 Series	E39	535 i	1996–1998	173 kW
BMW 5 Series	E39	525 i	2000–2003	141 kW
BMW 5 Series Touring	E39	528 i	1996–2000	142 kW
No vehicles match your search.

Product overview

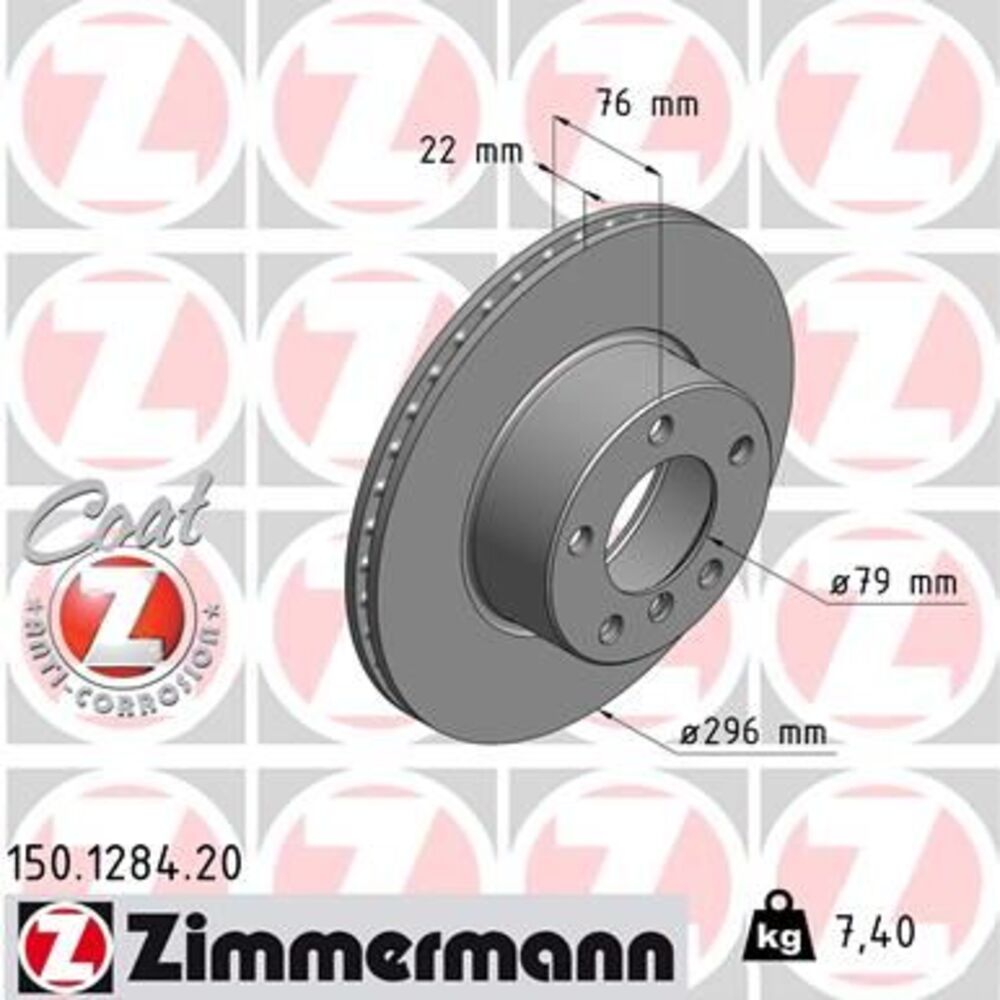

Zimmermann 150.1284.20 is a pair of internally vented brake discs (rotors). Each disc is 296 mm in diameter and 22 mm thick when new, with a 76 mm hat height. The minimum (discard) thickness is 20.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 1 163 013 and 3 other OE numbers. Confirmed to fit 6 Australian-market variants; the full list is in the fitment table on this page.
