Zimmermann 310mm Brake Disc Set (2 pcs) 150.3402.20
Part No. 150.3402.20
Check this part fits your car
Select your vehicle and we will confirm it against the 4 variants listed for this part.
$336.00
incl. GST
Front axle
310 x 24 mm
Fits 4 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

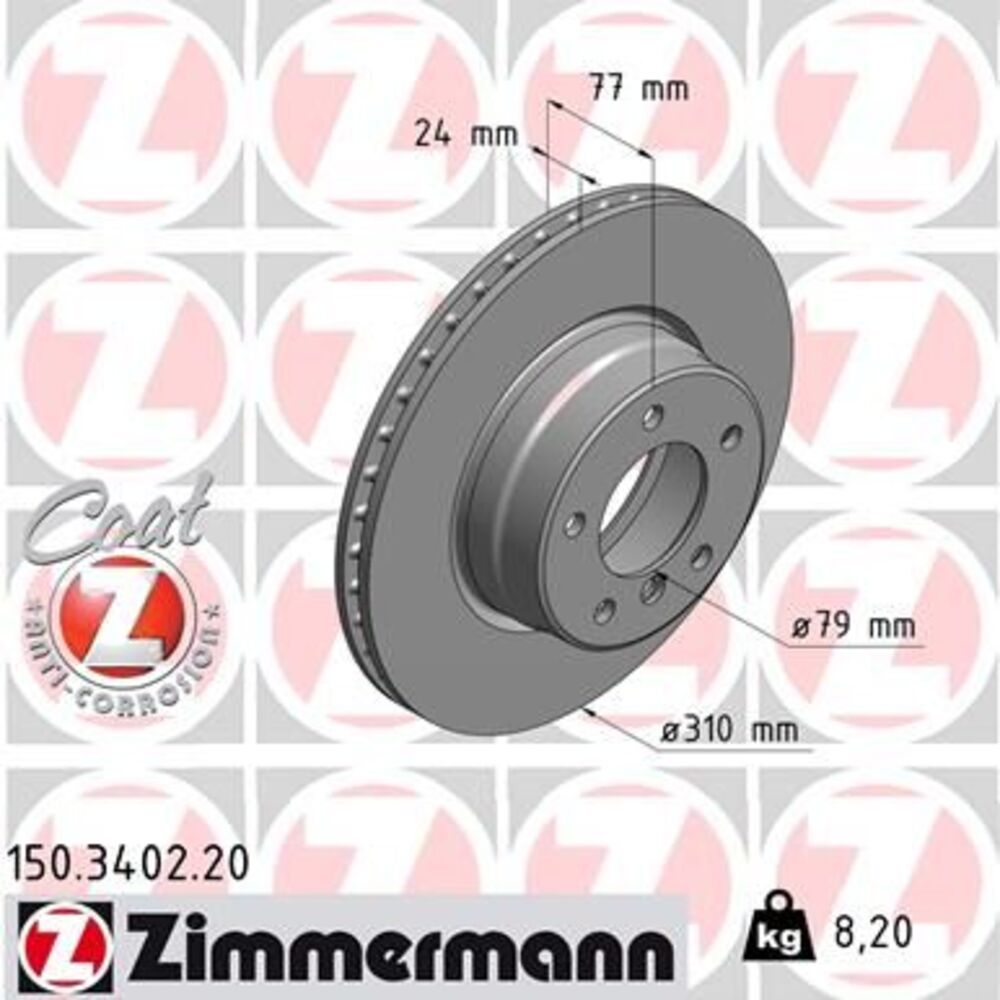

Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter310 mm
Thickness when new24 mm
Height77 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight8.22 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3402.20
Fits OE / OEM numbers
3411 6 764 021
3411 6 864 059
3411 6 778 967
3411 6 756 745
3411 6 764 021
3411 6 756 745
3411 6 864 059
Vehicle fitment
4 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | E60 | 525 i | 2003–2005 | 141 kW |
| BMW 5 Series | E60 | 525 i | 2005–2009 | 160 kW |
| BMW 5 Series | E60 | 523 i | 2007–2009 | 140 kW |
| BMW 5 Series | E60 | 520 i | 2007–2009 | 125 kW |
Product overview
Zimmermann 150.3402.20 is a pair of internally vented brake discs (rotors). Each disc is 310 mm in diameter and 24 mm thick when new, with a 77 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 764 021 and 3 other OE numbers. Confirmed to fit 4 Australian-market variants; the full list is in the fitment table on this page.
