Zimmermann 320mm Brake Disc Set (2 pcs) 150.3405.20

Name: Zimmermann 320mm Brake Disc Set (2 pcs) 150.3405.20
Brand: Zimmermann
SKU: ZIM-00055
Price: 346.00 AUD
Availability: InStock

Part No. 150.3405.20

Low stock 6 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 12 variants listed for this part.

$346.00 incl. GST

Rear axle 320 x 20 mm Fits 12 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeExternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter320 mm

Thickness when new20 mm

Height63 mm

Stud holes5

Stud circle (PCD)120 mm

Centre bore75 mm

ApprovalECE R90 approved

Minimum (discard) thickness18.4 mm

Part weight7.38 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

150.3405.20

Fits OE / OEM numbers

3421 6 753 215 3421 6 772 085 3421 6 864 061 3421 6 772 085 3421 6 753 215 3421 6 864 061

Vehicle fitment 12 variants

Make & model	Chassis	Variant	Years	Power
BMW 5 Series	E60	530 i	2001–2005	170 kW
BMW 5 Series	E60	530 d	2002–2005	160 kW
BMW 5 Series	E60	525 i	2003–2005	141 kW
BMW 5 Series	E60	525 i	2005–2009	160 kW
BMW 5 Series	E60	530 i	2005–2007	190 kW
BMW 5 Series	E60	530 d	2005–2007	170 kW
BMW 5 Series	E60	530 d	2007–2009	173 kW
BMW 5 Series	E60	523 i	2007–2009	140 kW
BMW 5 Series	E60	530 i	2007–2009	200 kW
BMW 5 Series	E60	520 d	2007–2009	130 kW
BMW 5 Series	E60	520 i	2007–2009	125 kW
BMW 5 Series Touring	E61	530 i	2004–2007	190 kW
No vehicles match your search.

Product overview

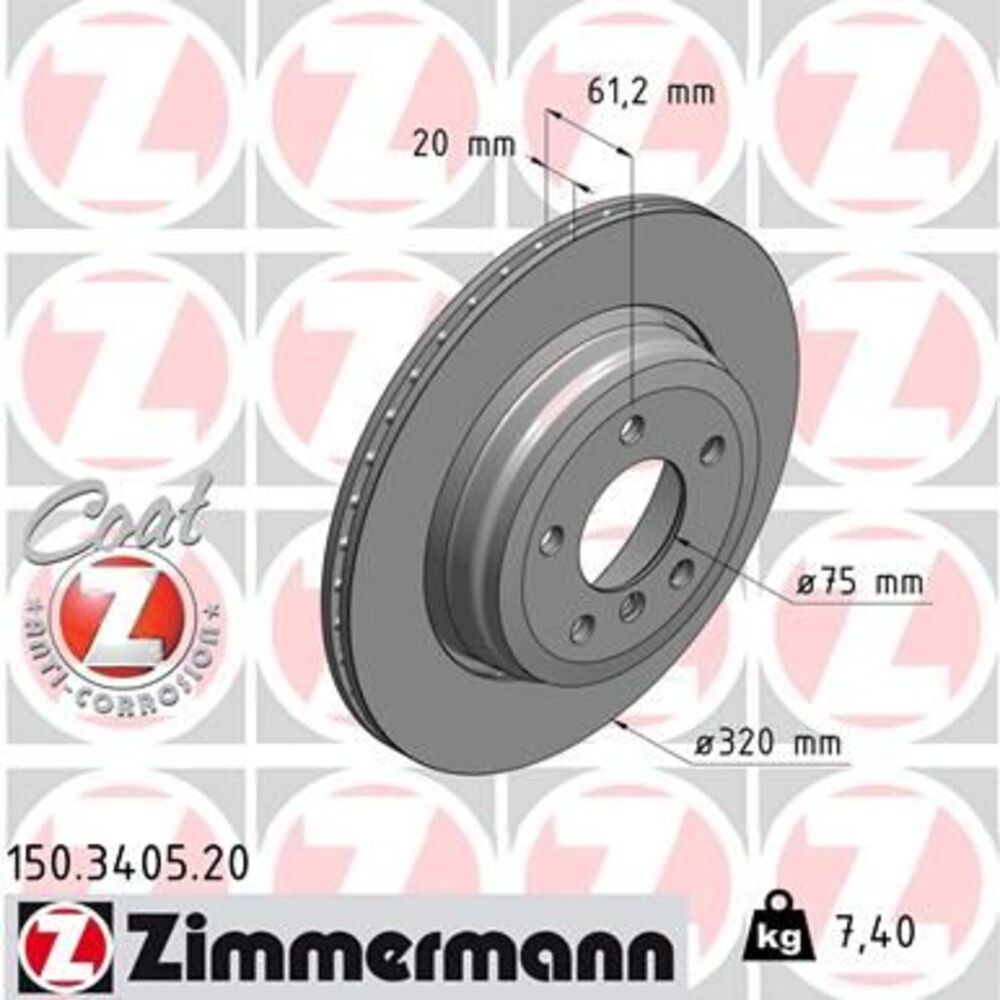

Zimmermann 150.3405.20 is a pair of externally vented brake discs (rotors). Each disc is 320 mm in diameter and 20 mm thick when new, with a 63 mm hat height. The minimum (discard) thickness is 18.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 6 753 215 and 2 other OE numbers. Confirmed to fit 12 Australian-market variants; the full list is in the fitment table on this page.
