Zimmermann 312mm Brake Disc Set (2 pcs) 150.3467.20
Part No. 150.3467.20
Check this part fits your car
Select your vehicle and we will confirm it against the 21 variants listed for this part.
$384.00
incl. GST
Front axle
312 x 24 mm
Fits 21 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter312 mm
Thickness when new24 mm
Height74 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
Wheel bolt bore14.5 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight8.9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3467.20
Fits OE / OEM numbers
3411 6 774 875
3411 6 855 006
3411 6 855 006
Vehicle fitment
21 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E90 | 325 i | 2004–2011 | 160 kW |
| BMW 3 Series | E90 | 320 i | 2007–2011 | 115 kW |
| BMW 3 Series | E90 | 323 i, 325 i | 2007–2011 | 140 kW |
| BMW 3 Series | E90 | 325 i, 328 i | 2007–2011 | 160 kW |
| BMW 3 Series | E90 | 320 i | 2007–2011 | 125 kW |
| BMW 3 Series Convertible | E93 | 320 d | 2010–2013 | 135 kW |
| BMW 3 Series Coupe | E92 | 323 i | 2006–2012 | 140 kW |
| BMW 3 Series Coupe | E92 | 320 d | 2010–2013 | 135 kW |
| BMW 3 Series Touring | E91 | 320 i | 2005–2012 | 115 kW |
| BMW 3 Series Touring | E91 | 320 i | 2005–2012 | 110 kW |
Product overview

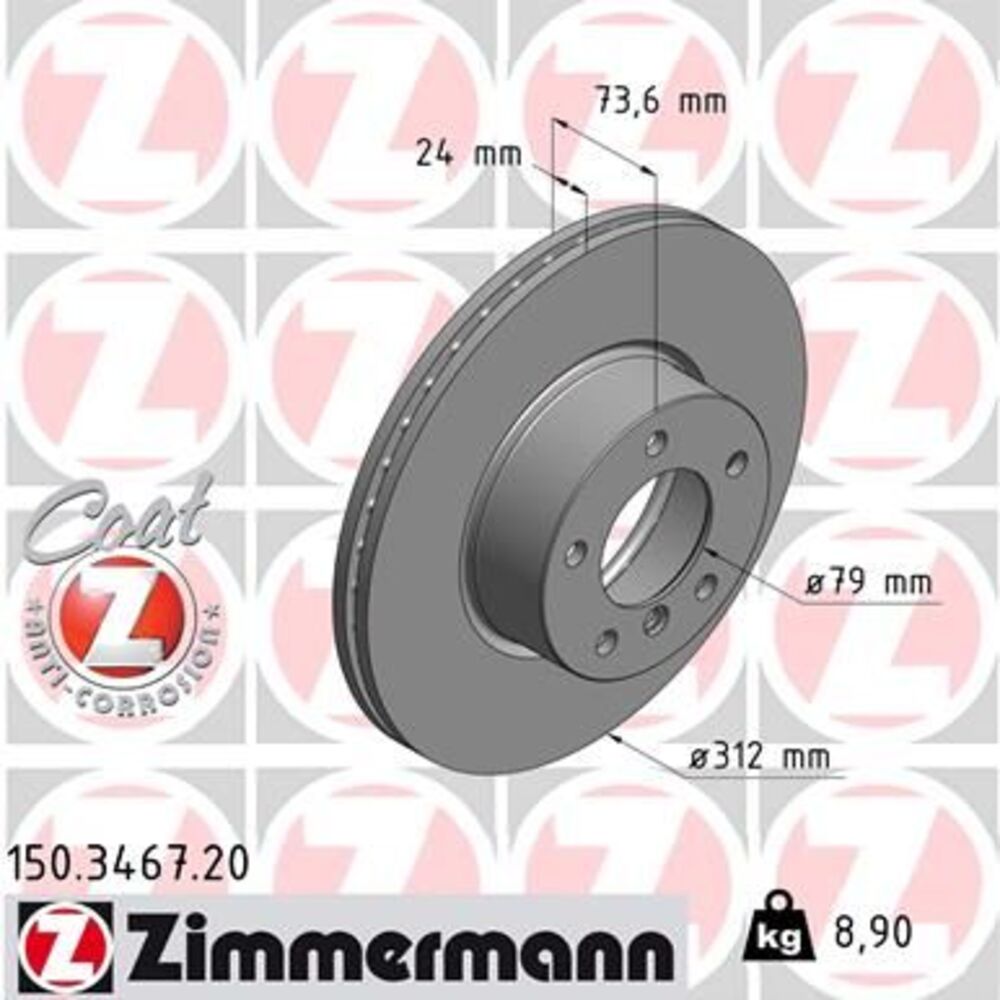

Zimmermann 150.3467.20 is a pair of internally vented brake discs (rotors). Each disc is 312 mm in diameter and 24 mm thick when new, with a 74 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 774 875 and 1 other OE number. Confirmed to fit 21 Australian-market variants; the full list is in the fitment table on this page.
