Zimmermann 312mm Rear LH Brake Disc 150.1292.20
Part No. 150.1292.20
Check this part fits your car
Select your vehicle and we will confirm it against the 9 variants listed for this part.
$156.00
incl. GST
Rear axle
312 x 20 mm
Fits 9 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeExternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter312 mm
Thickness when new20 mm
Height61 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness18.4 mm
Part weight6.52 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1292.20
Fits OE / OEM numbers
3421 2 227 177
Vehicle fitment
9 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E36 | M3 3.0 | 1994–1995 | 210 kW |
| BMW 3 Series | E36 | M3 3.2 | 1995–1998 | 236 kW |
| BMW 3 Series Convertible | E36 | M3 3.0 | 1994–1995 | 210 kW |
| BMW 3 Series Convertible | E36 | M3 3.2 | 1996–1999 | 236 kW |
| BMW 3 Series Coupe | E36 | M3 3.0 | 1992–1995 | 210 kW |
| BMW 3 Series Coupe | E36 | M3 3.0 | 1993–1995 | 217 kW |
| BMW 3 Series Coupe | E36 | M3 3.2 | 1995–1998 | 236 kW |
| BMW Z3 Coupe | E36 | M | 1998–2001 | 236 kW |
| BMW Z3 Roadster | E36 | M 3.2 | 1997–2000 | 236 kW |
Product overview

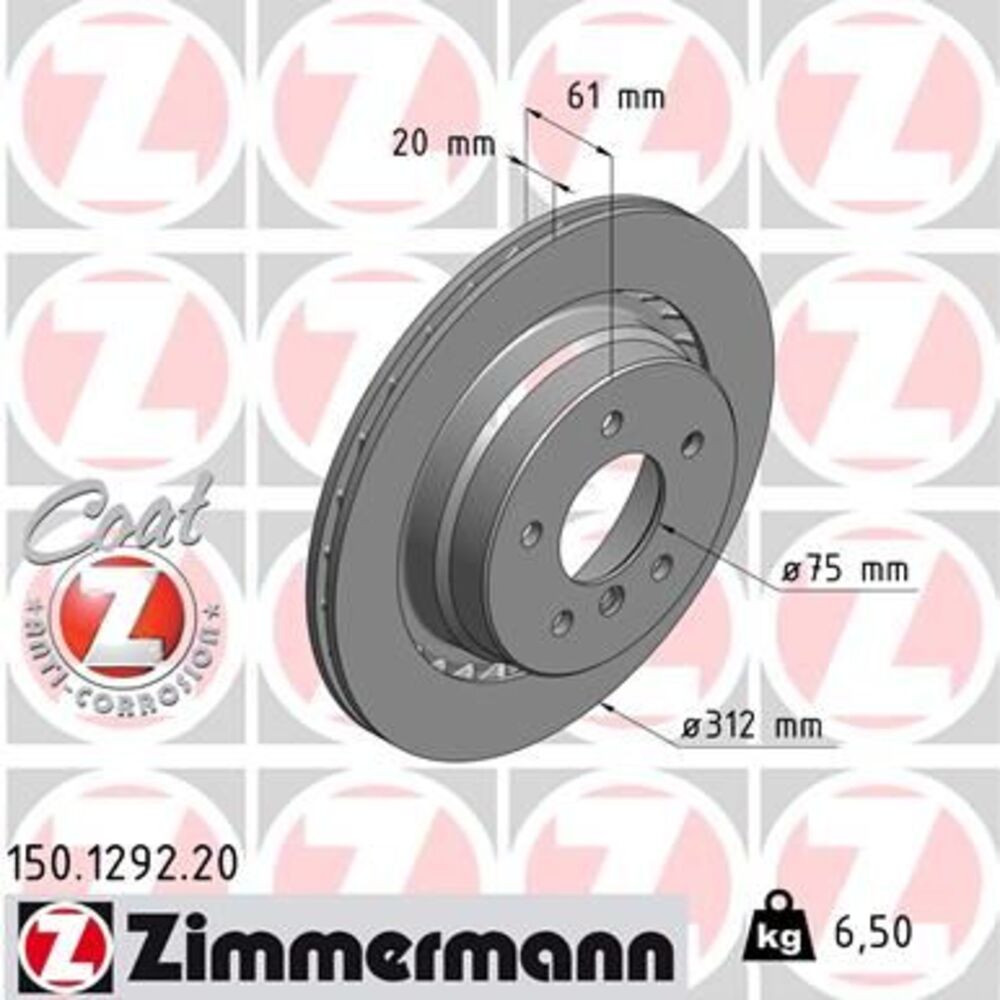

Zimmermann 150.1292.20 is an externally vented brake disc (rotor). The disc is 312 mm in diameter and 20 mm thick when new, with a 61 mm hat height. The minimum (discard) thickness is 18.4 mm. It has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The disc is coated for corrosion protection and made from high-carbon cast iron. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 2 227 177. Confirmed to fit 9 Australian-market variants; the full list is in the fitment table on this page.
