Zimmermann 315mm Front LH Brake Disc 150.1290.20
Part No. 150.1290.20
Check this part fits your car
Select your vehicle and we will confirm it against the 4 variants listed for this part.
$174.00
incl. GST
Front axle
315 x 28 mm
Fits 4 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter315 mm
Thickness when new28 mm
Height52 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalECE R90 approved
Minimum (discard) thickness26.4 mm
Part weight7.7 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1290.20
Fits OE / OEM numbers
3411 2 227 171
Vehicle fitment
4 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E36 | M3 3.0 | 1994–1995 | 210 kW |
| BMW 3 Series Convertible | E36 | M3 3.0 | 1994–1995 | 210 kW |
| BMW 3 Series Coupe | E36 | M3 3.0 | 1992–1995 | 210 kW |
| BMW 3 Series Coupe | E36 | M3 3.0 | 1993–1995 | 217 kW |
Product overview

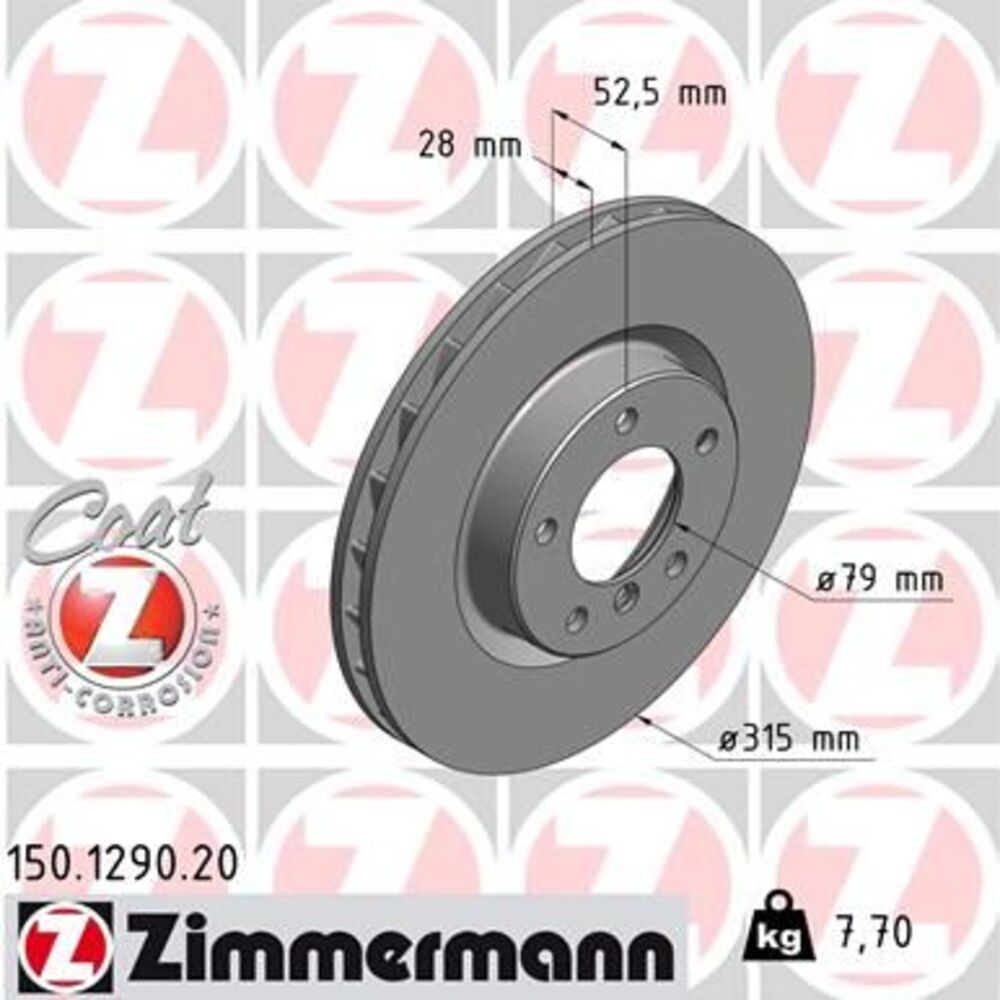

Zimmermann 150.1290.20 is an internally vented brake disc (rotor). The disc is 315 mm in diameter and 28 mm thick when new, with a 52 mm hat height. The minimum (discard) thickness is 26.4 mm. It has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The disc is coated for corrosion protection and made from high-carbon cast iron. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 2 227 171. Confirmed to fit 4 Australian-market variants; the full list is in the fitment table on this page.
