Zimmermann 328mm Brake Disc Set (2 pcs) 150.3494.20
Part No. 150.3494.20
Check this part fits your car
Select your vehicle and we will confirm it against the 11 variants listed for this part.
$492.00
incl. GST
Front axle
328 x 28 mm
Fits 11 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter328 mm
Thickness when new28 mm
Height73 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness26.4 mm
Part weight10.2 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3494.20
Fits OE / OEM numbers
3410 6 787 490
3410 6 879 122
Vehicle fitment
11 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X3 | F25 | xDrive 20 d, xDrive28 d | 2010–2014 | 135 kW |
| BMW X3 | F25 | xDrive 28 i | 2011–2012 | 190 kW |
| BMW X3 | F25 | xDrive 30 d | 2011–2017 | 190 kW |
| BMW X3 | F25 | xDrive 20 i, xDrive 20 i Teto X-Line | 2011–2017 | 135 kW |
| BMW X3 | F25 | xDrive 28 i | 2012–2017 | 180 kW |
| BMW X3 | F25 | xDrive 20 d | 2014–2017 | 140 kW |
| BMW X4 | F26 | xDrive 20 d | 2014–2018 | 140 kW |
| BMW X4 | F26 | xDrive 20 i | 2014–2018 | 135 kW |
| BMW X4 | F26 | xDrive 30 d | 2014–2018 | 190 kW |
| BMW X4 | F26 | xDrive 35 d | 2014–2018 | 230 kW |
Product overview

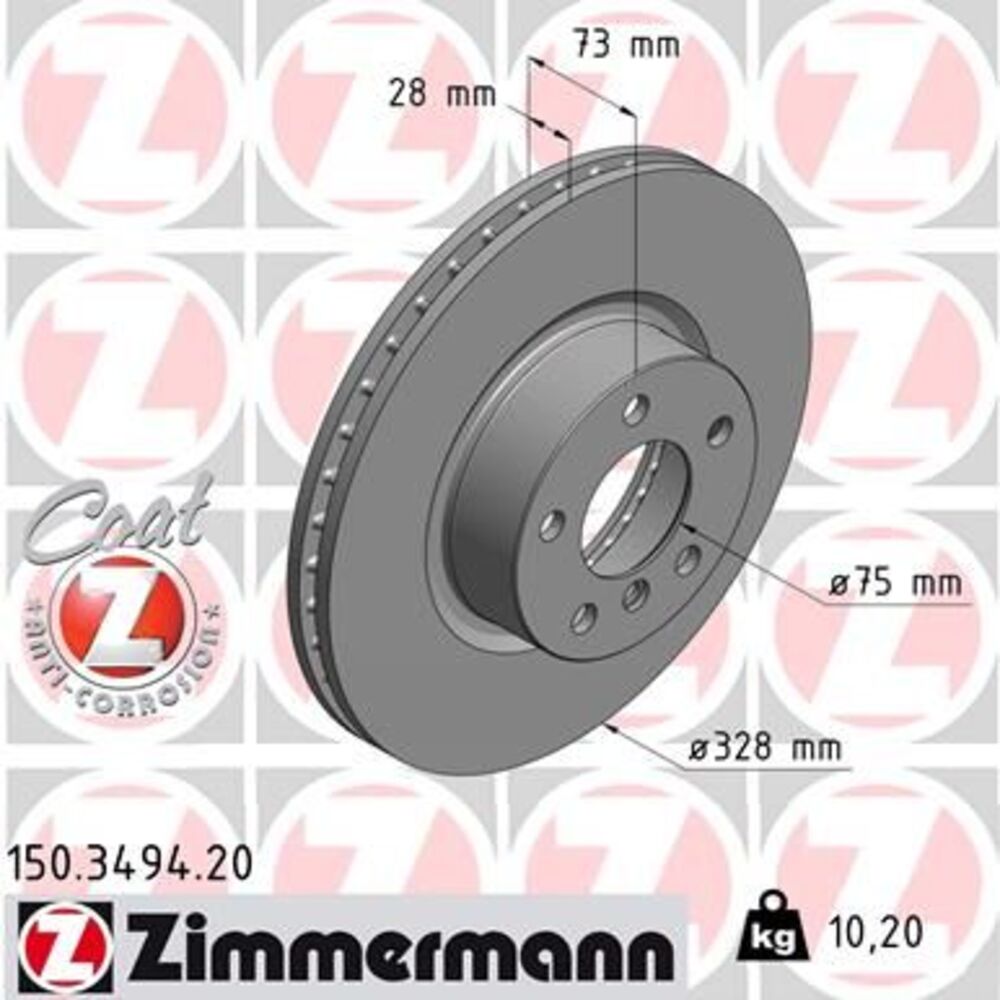

Zimmermann 150.3494.20 is a pair of internally vented brake discs (rotors). Each disc is 328 mm in diameter and 28 mm thick when new, with a 73 mm hat height. The minimum (discard) thickness is 26.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3410 6 787 490 and 1 other OE number. Confirmed to fit 11 Australian-market variants; the full list is in the fitment table on this page.
