Zimmermann 330mm Brake Disc Set (2 pcs) 150.3495.20

Name: Zimmermann 330mm Brake Disc Set (2 pcs) 150.3495.20
Brand: Zimmermann
SKU: ZIM-00094
Price: 404.00 AUD
Availability: InStock

Part No. 150.3495.20

Low stock 3 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 11 variants listed for this part.

$404.00 incl. GST

Rear axle 330 x 20 mm Fits 11 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter330 mm

Thickness when new20 mm

Height71 mm

Stud holes5

Stud circle (PCD)120 mm

Centre bore75 mm

ApprovalECE R90 approved

Minimum (discard) thickness18.4 mm

Part weight7.4 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

150.3495.20

Fits OE / OEM numbers

3420 6 790 362 3420 6 868 936 3420 6 886 482

Vehicle fitment

11 variants

Make & model	Chassis	Variant	Years	Power
BMW X3	F25	xDrive 20 d, xDrive28 d	2010–2014	135 kW
BMW X3	F25	xDrive 28 i	2011–2012	190 kW
BMW X3	F25	xDrive 30 d	2011–2017	190 kW
BMW X3	F25	xDrive 20 i, xDrive 20 i Teto X-Line	2011–2017	135 kW
BMW X3	F25	xDrive 28 i	2012–2017	180 kW
BMW X3	F25	xDrive 20 d	2014–2017	140 kW
BMW X4	F26	xDrive 20 d	2014–2018	140 kW
BMW X4	F26	xDrive 20 i	2014–2018	135 kW
BMW X4	F26	xDrive 30 d	2014–2018	190 kW
BMW X4	F26	xDrive 35 d	2014–2018	230 kW
BMW X4	F26	xDrive 35 i	2014–2018	225 kW
No vehicles match your search.

Product overview

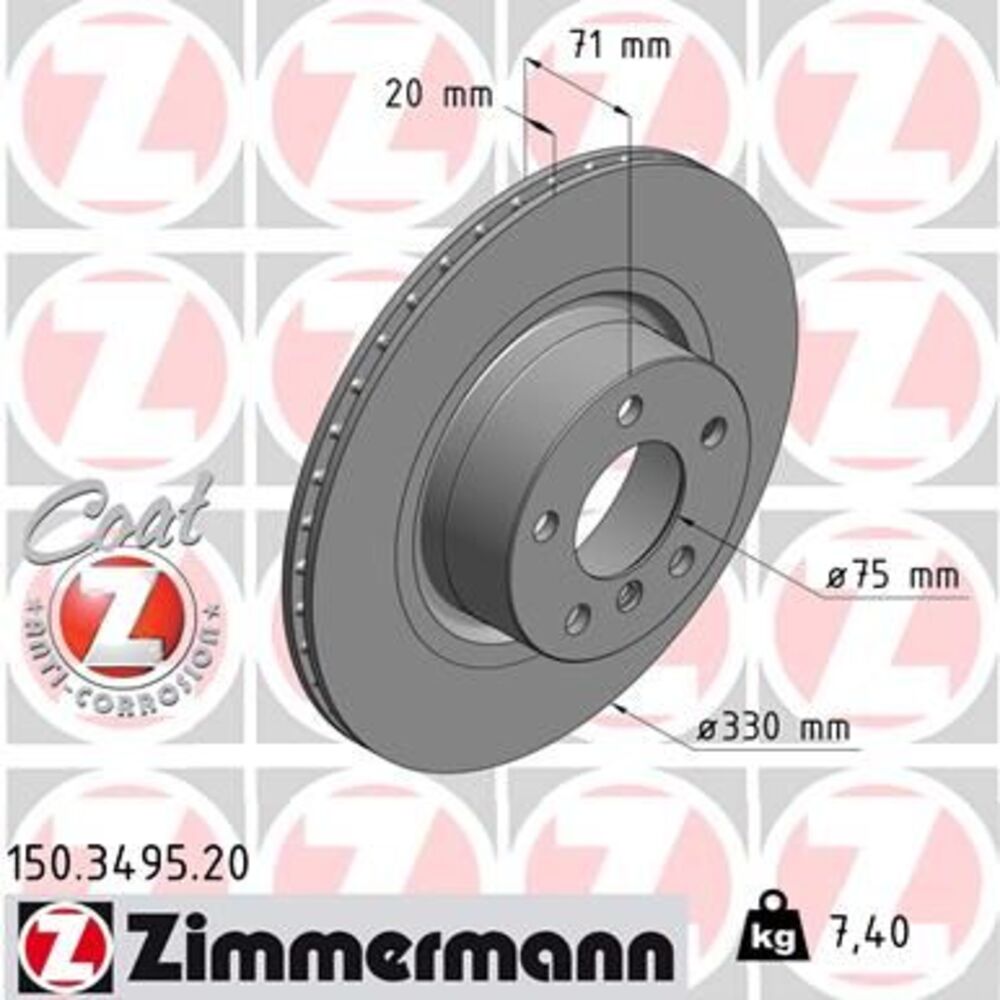

Zimmermann 150.3495.20 is a pair of internally vented brake discs (rotors). Each disc is 330 mm in diameter and 20 mm thick when new, with a 71 mm hat height. The minimum (discard) thickness is 18.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3420 6 790 362 and 2 other OE numbers. Confirmed to fit 11 Australian-market variants; the full list is in the fitment table on this page.
