Zimmermann 330mm Brake Disc Set (2 pcs) 150.3484.20
Part No. 150.3484.20
Check this part fits your car
Select your vehicle and we will confirm it against the 11 variants listed for this part.
$454.00
incl. GST
Rear axle
330 x 20 mm
Fits 11 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter330 mm
Thickness when new20 mm
Height69 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness18.4 mm
Part weight8.3 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3484.20
Fits OE / OEM numbers
3421 6 775 287
3421 6 793 127
3421 6 898 733
3421 6 793 127
Vehicle fitment
11 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | F10 | 530i, 535 i, 535 i M Sport | 2010–2016 | 225 kW |
| BMW 5 Series | F10 | 528 i, 530 i | 2010–2011 | 190 kW |
| BMW 5 Series | F10 | 520 d, 523 d | 2010–2014 | 135 kW |
| BMW 5 Series | F10 | 520 i, 523 i | 2011–2016 | 135 kW |
| BMW 5 Series | F10 | 528 i, 528i M Sport | 2011–2016 | 180 kW |
| BMW 5 Series | F10 | 530 d, 535 d | 2011–2016 | 190 kW |
| BMW 5 Series | F10 | ActiveHybrid | 2011–2016 | 250 kW |
| BMW 5 Series | F10 | 520 d | 2014–2016 | 140 kW |
| BMW 5 Series Touring | F11 | 520 d, 523 d | 2010–2014 | 135 kW |
| BMW 5 Series Touring | F11 | 535 i | 2010–2017 | 225 kW |
Product overview

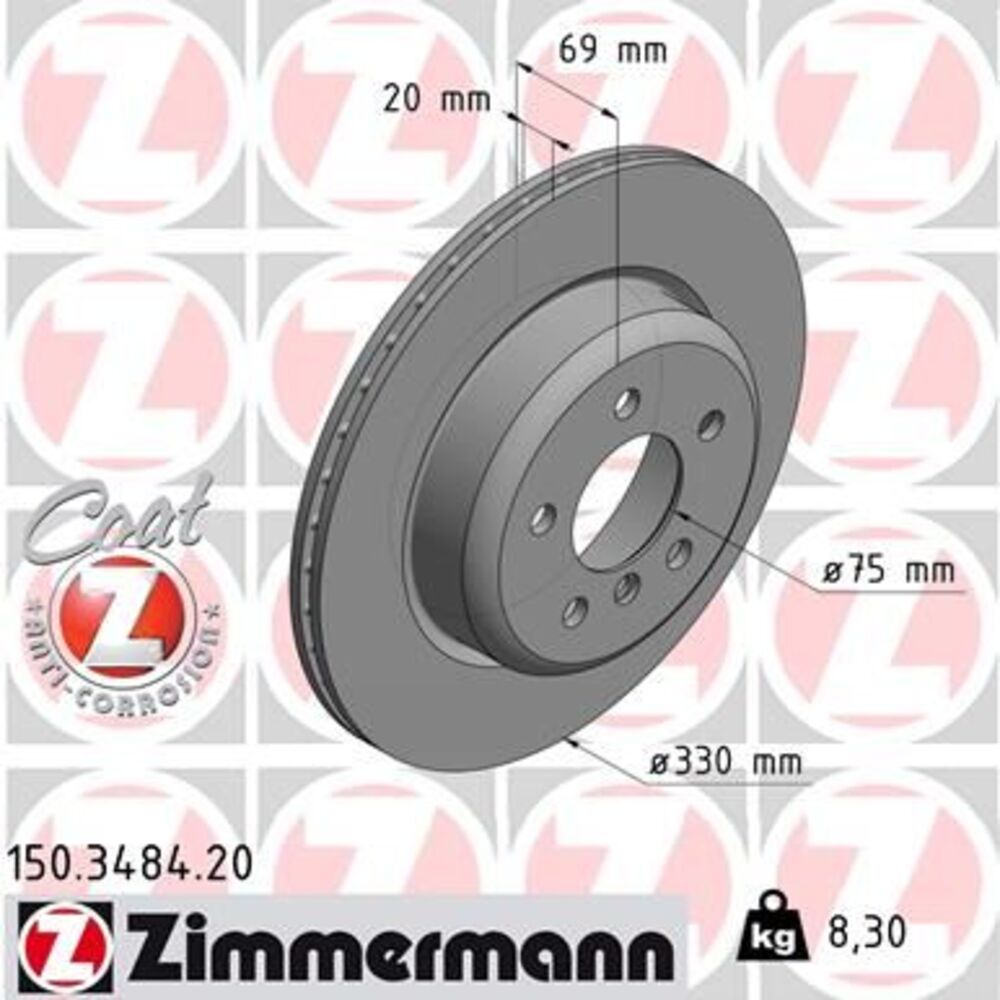

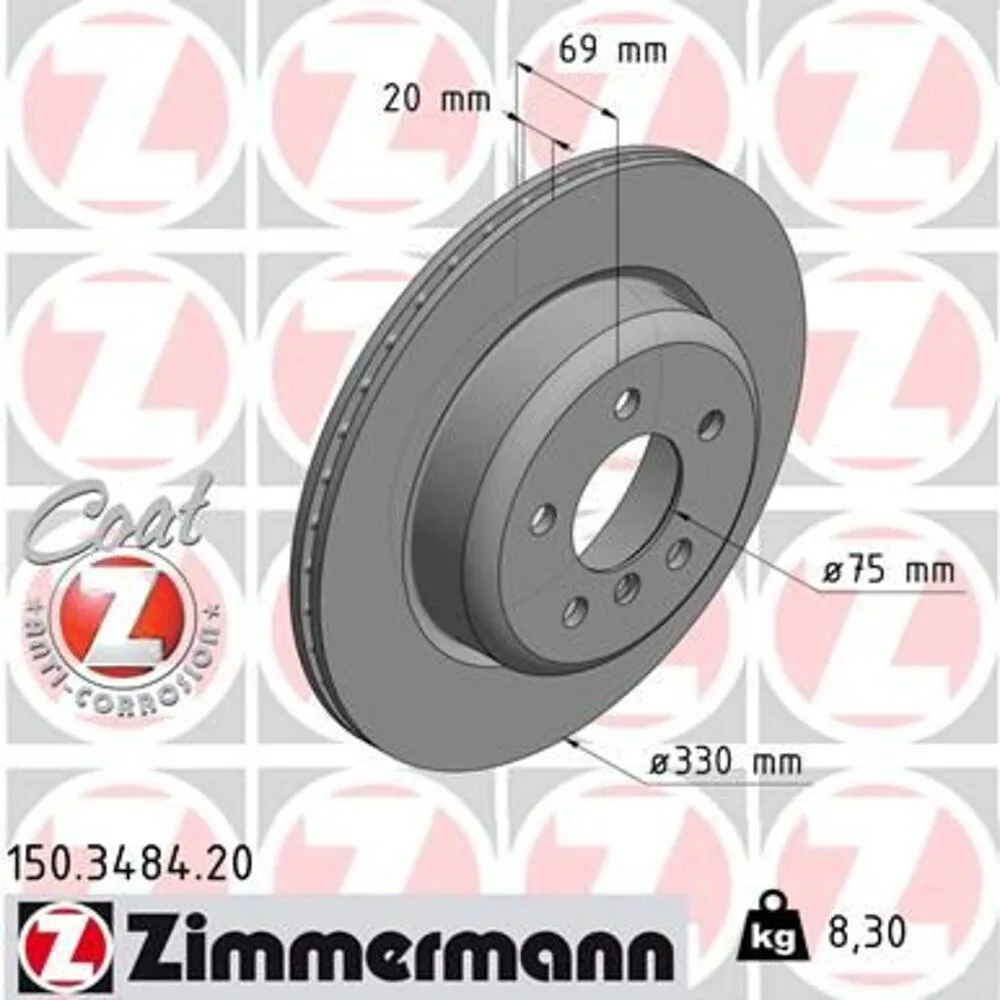

Zimmermann 150.3484.20 is a pair of internally vented brake discs (rotors). Each disc is 330 mm in diameter and 20 mm thick when new, with a 69 mm hat height. The minimum (discard) thickness is 18.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 6 775 287 and 2 other OE numbers. Confirmed to fit 11 Australian-market variants; the full list is in the fitment table on this page.
