Zimmermann 348mm Brake Disc Set (2 pcs) 150.3483.20
Part No. 150.3483.20
Check this part fits your car
Select your vehicle and we will confirm it against the 10 variants listed for this part.
$574.00
incl. GST
Front axle
348 x 30 mm
Fits 10 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter348 mm
Thickness when new30 mm
Height66 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness28.4 mm
Part weight11.4 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3483.20
Fits OE / OEM numbers
3411 6 775 277
3411 6 884 301
Vehicle fitment
10 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | F10 | 530i, 535 i, 535 i M Sport | 2010–2016 | 225 kW |
| BMW 5 Series | F10 | 528 i, 530 i | 2010–2011 | 190 kW |
| BMW 5 Series | F10 | 528 i, 528i M Sport | 2011–2016 | 180 kW |
| BMW 5 Series | F10 | 530 d, 535 d | 2011–2016 | 190 kW |
| BMW 5 Series | F10 | ActiveHybrid | 2011–2016 | 250 kW |
| BMW 5 Series Touring | F11 | 535 i | 2010–2017 | 225 kW |
| BMW 5 Series Touring | F11 | 520 d | 2014–2017 | 140 kW |
| BMW 6 Series Convertible | F12 | 640 i | 2011–2018 | 235 kW |
| BMW 6 Series Coupe | F13 | 640 i | 2011–2017 | 235 kW |
| BMW 6 Series Gran Coupe | F06 | 640 i | 2012–2018 | 235 kW |
Product overview

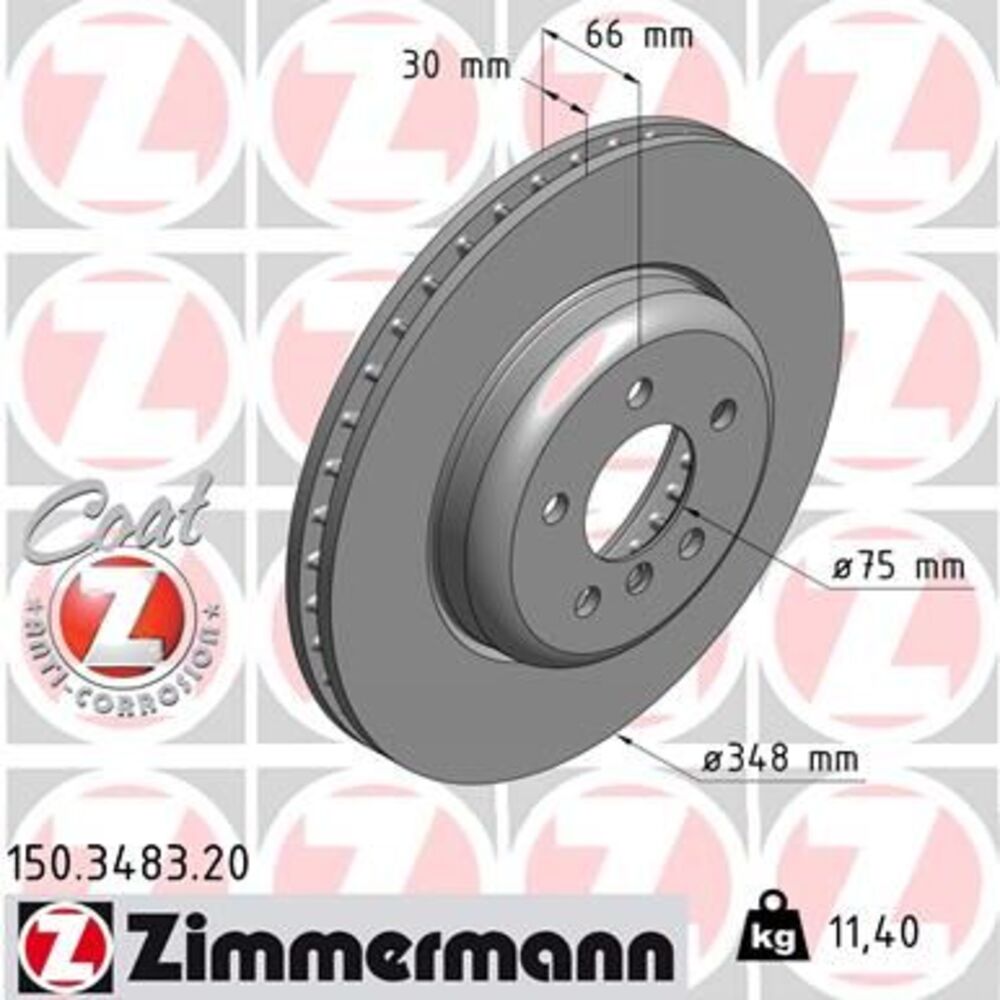

Zimmermann 150.3483.20 is a pair of internally vented brake discs (rotors). Each disc is 348 mm in diameter and 30 mm thick when new, with a 66 mm hat height. The minimum (discard) thickness is 28.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 775 277 and 1 other OE number. Confirmed to fit 10 Australian-market variants; the full list is in the fitment table on this page.
