Zimmermann 330mm Rear LH Brake Disc 150.2952.20
Part No. 150.2952.20
Check this part fits your car
Select your vehicle and we will confirm it against the 23 variants listed for this part.
$313.00
incl. GST
Rear axle
330 x 20 mm
Fits 23 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter330 mm
Thickness when new20 mm
Height64 mm
Stud holes5
Stud circle (PCD)112 mm
Centre bore67 mm
ApprovalECE R90 approved
Minimum (discard) thickness18.4 mm
Part weight7.9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2952.20
Fits OE / OEM numbers
3421 6 882 245
3421 6 860 923
3421 6 882 245
3421 6 860 923
42431-WAA02
Vehicle fitment
23 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | G20, G80, G28 | 330 i | 2018–now | 190 kW |
| BMW 3 Series | G20, G80, G28 | 330 e Plug-in-Hybrid | 2019–now | 215 kW |
| BMW 5 Series | G30, F90 | 520 d, 523 d | 2016–now | 140 kW |
| BMW 5 Series | G30, F90 | 530 d | 2016–2020 | 195 kW |
| BMW 5 Series | G30, F90 | 530 i | 2016–2020 | 185 kW |
| BMW 5 Series | G30, F90 | 530 e Plug-in-Hybrid | 2017–2020 | 185 kW |
| BMW 5 Series | G30, F90 | 520 i, 523 i, 525 i | 2017–2020 | 135 kW |
| BMW 5 Series Touring | G31 | 520 d, 523 d | 2017–now | 140 kW |
| BMW 5 Series Touring | G31 | 530 i | 2017–2020 | 185 kW |
| BMW 6 Series Gran Turismo | G32 | 630 i | 2017–2020 | 190 kW |
Product overview

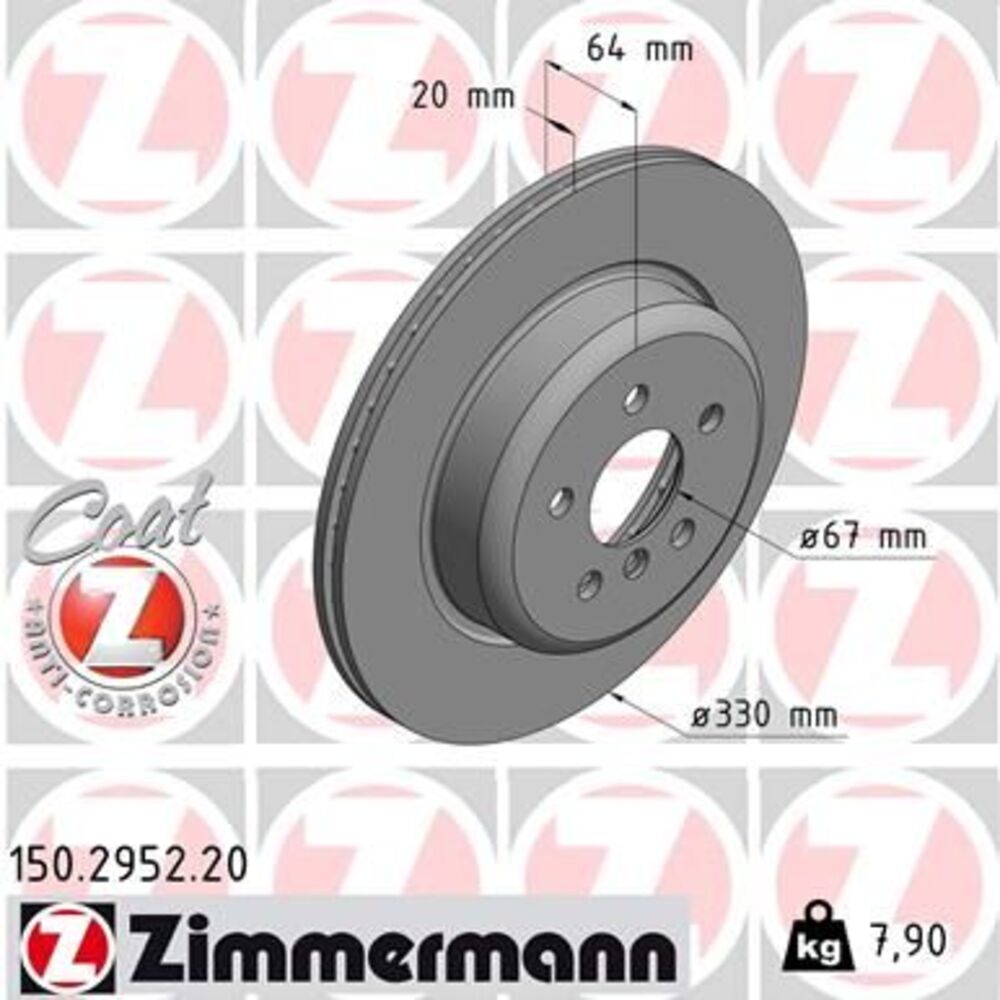

Zimmermann 150.2952.20 is an internally vented brake disc (rotor). The disc is 330 mm in diameter and 20 mm thick when new, with a 64 mm hat height. The minimum (discard) thickness is 18.4 mm. It has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The disc is coated for corrosion protection and made from high-carbon cast iron. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 6 882 245 and 2 other OE numbers. Confirmed to fit 23 Australian-market variants; the full list is in the fitment table on this page.
