Zimmermann 350mm Rear LH Brake Disc 150.3459.70
Part No. 150.3459.70
Check this part fits your car
Select your vehicle and we will confirm it against the 4 variants listed for this part.
$771.00
incl. GST
Rear axle
350 x 24 mm
Fits 4 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeVented, Cross-drilled, Two-piece (alloy hat, iron ring)
ConstructionFloating alloy hat
Iron gradeAlloyed high-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter350 mm
Thickness when new24 mm
Height66 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
Minimum (discard) thickness22.4 mm
Part weight9.2 kg
Hole pattern7/5
OE & OEM cross-reference
Supplier part number
150.3459.70
Fits OE / OEM numbers
3421 2 283 387
3421 2 283 803
Vehicle fitment
4 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series Coupe | E82 | M | 2011–2012 | 250 kW |
| BMW 3 Series | E90 | M3 | 2007–2011 | 309 kW |
| BMW 3 Series Convertible | E93 | M3 | 2008–2013 | 309 kW |
| BMW 3 Series Coupe | E92 | M3 | 2007–2013 | 309 kW |
Product overview

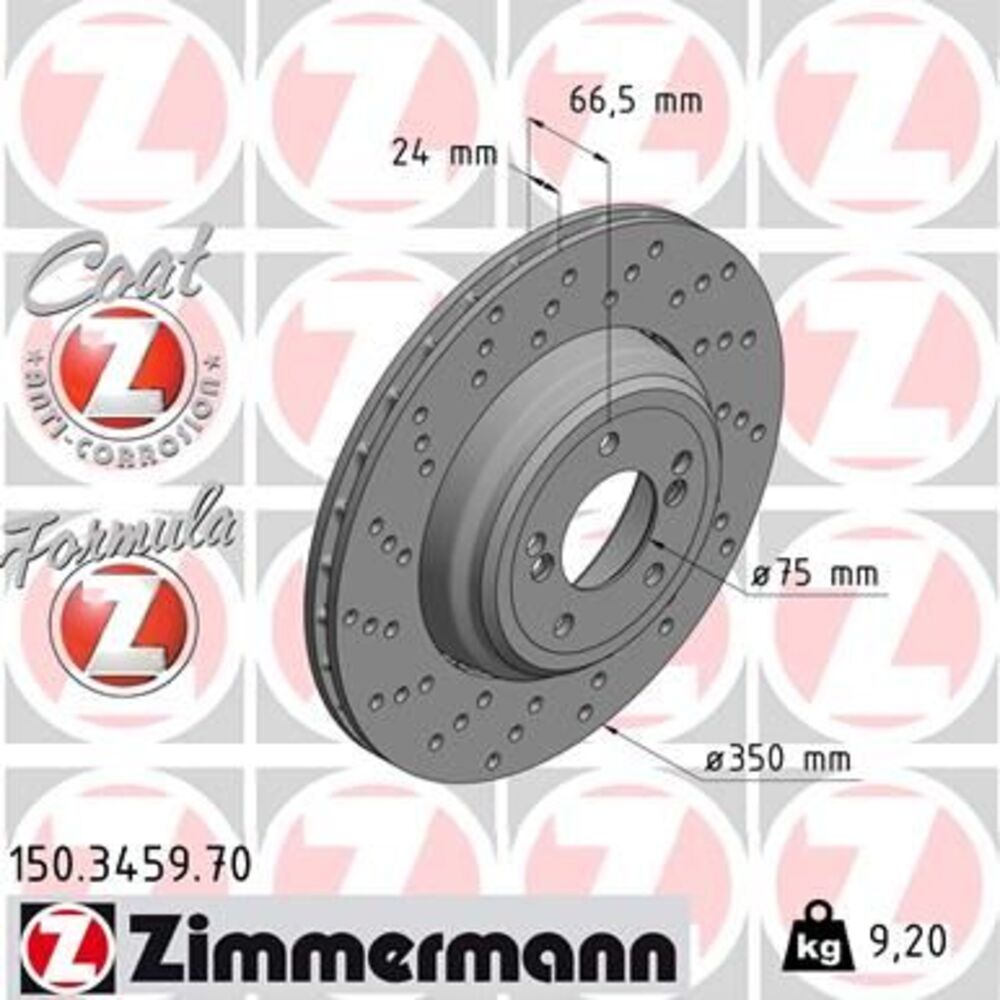

Zimmermann 150.3459.70 is a vented, cross-drilled, two-piece brake disc (rotor). The disc is 350 mm in diameter and 24 mm thick when new, with a 66 mm hat height. The minimum (discard) thickness is 22.4 mm. It has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The disc is coated for corrosion protection, made from alloyed high-carbon cast iron, and built with a floating alloy hat. Cross-referenced to BMW OE 3421 2 283 387 and 1 other OE number. Confirmed to fit 4 Australian-market variants; the full list is in the fitment table on this page.
