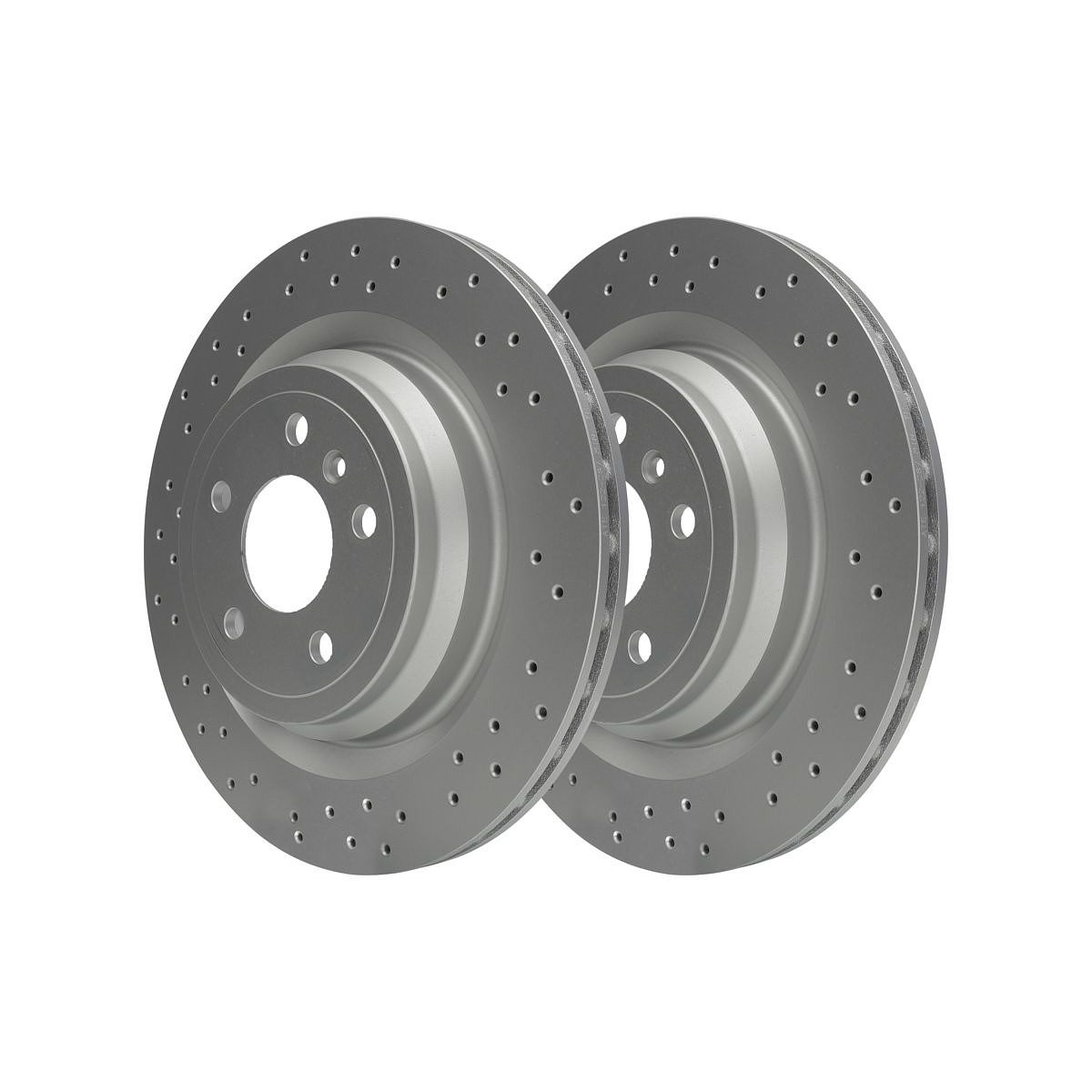

ATE Brake Disc Set (2 pcs) 24.0122-0287.1
Part No. 24.0122-0287.1
Check this part fits your car
Select your vehicle and we will confirm it against the 2 variants listed for this part.
$554.00
incl. GST
Rear axle
330 x 22 mm
Fitting bolts
Fits 2 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

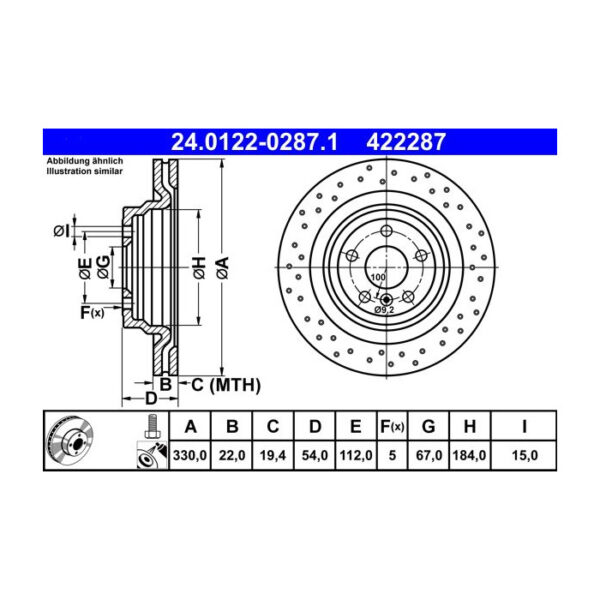

Technical specification
Height54 mm
Bore diameter15 mm
Disc typeCross-drilled and vented
Thickness when new22 mm
Minimum (discard) thickness19.4 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter184 mm
Outside diameter330 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0122-0287.1
Fits OE / OEM numbers
166 423 04 12
A 166 423 04 12
1664230412
A1664230412
Vehicle fitment
2 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| Mercedes-Benz M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
Owner guides for these models: M-Class W166 owner guide
Product overview
ATE 24.0122-0287.1 is a pair of cross-drilled, vented brake discs (rotors). Each disc is 330 mm in diameter and 22 mm thick when new, with a 54 mm hat height. The minimum (discard) thickness is 19.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 166 423 04 12. Confirmed to fit 2 Australian-market variants; the full list is in the fitment table on this page.
