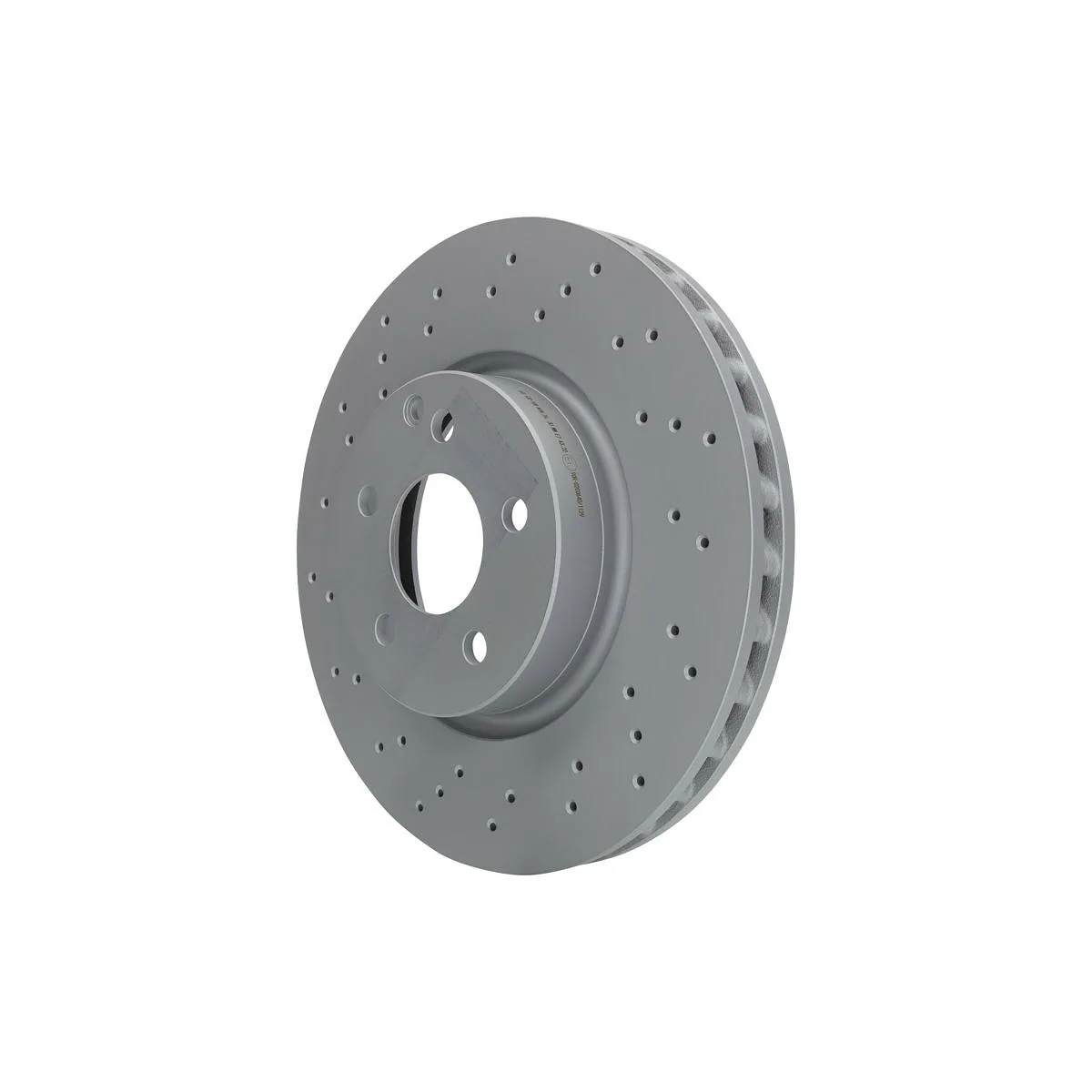

ATE Brake Disc Set (2 pcs) 24.0132-0100.1
Part No. 24.0132-0100.1
Check this part fits your car
Select your vehicle and we will confirm it against the 76 variants listed for this part.
$426.00
incl. GST
Front axle
322 x 32 mm
Fitting bolts
Fits 76 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
ApprovalE1 90R-02C0640/1129
Height64.5 mm
Bore diameter15.2 mm
Disc typeCross-drilled and vented
Thickness when new32 mm
Minimum (discard) thickness30 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter154.3 mm
Outside diameter322 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0132-0100.1
Fits OE / OEM numbers
204 421 10 12
A 204 421 10 12
2044211012
A2044211012
000 421 11 12
A 000 421 11 12
0004211112
A0004211112
000 421 30 12
A 000 421 30 12
0004213012
A0004213012
Vehicle fitment
76 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ C-Class | W204 | C 280 (204.054) | 2007–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 320 CDI (204.022) | 2007–2014 | 165 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 (204.056) | 2007–2014 | 200 kW |
| MERCEDES-BENZ C-Class | W204 | C 280 4-matic (204.081) | 2007–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 300 (204.054) | 2009–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 CDI (204.022) | 2009–2014 | 165 kW |
| MERCEDES-BENZ C-Class | W204 | C 250 CDI 4-matic (204.082) | 2011–2014 | 150 kW |
| MERCEDES-BENZ C-Class | W204 | C 300 CDI 4-matic (204.092) | 2011–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 (204.057) | 2011–2014 | 225 kW |
| MERCEDES-BENZ C-Class | W204 | C 300 (204.055) | 2011–2014 | 185 kW |
Product overview
ATE 24.0132-0100.1 is a pair of cross-drilled, vented brake discs (rotors). Each disc is 322 mm in diameter and 32 mm thick when new, with a 64.5 mm hat height. The minimum (discard) thickness is 30 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0640/1129. Cross-referenced to Mercedes-Benz OE A 204 421 10 12 and 2 other OE numbers. Confirmed to fit 76 Australian-market variants; the full list is in the fitment table on this page.
