ATE Brake Disc Set (2 pcs) 24.0110-0278.1

Part No. 24.0110-0278.1

Low stock 8 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 24 variants listed for this part.

$282.00 incl. GST

Rear axle 300 x 10 mm Fitting bolts Fits 24 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

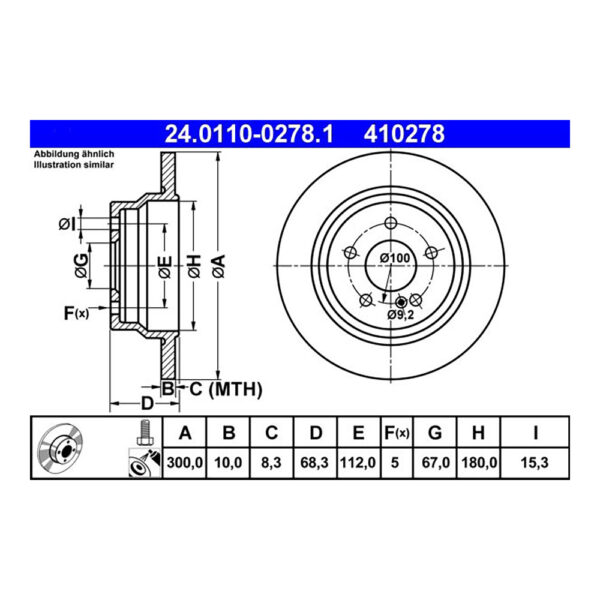

Technical specification

ApprovalE1 90R-02C0248/0999

Height68.3 mm

Bore diameter15.3 mm

Disc typeSolid

Thickness when new10 mm

Minimum (discard) thickness8.3 mm

Inside diameter180 mm

Outside diameter300 mm

Stud holes5

Centre bore67 mm

Stud circle (PCD)112 mm

Surface finishCorrosion-protective coating

In the boxFitting bolts included

OE & OEM cross-reference

Supplier part number

24.0110-0278.1

Fits OE / OEM numbers

211 423 07 12 A 211 423 07 12 2114230712 A2114230712 000 423 10 12 A 000 423 10 12 0004231012 A0004231012

Vehicle fitment

24 variants

Make & model	Chassis	Variant	Years	Power
Mercedes-Benz CLS	C218	CLS 250 CDI / BlueTEC / d (218.303, 218.304)	2011–2017	150 kW
Mercedes-Benz CLS Shooting Brake	X218	CLS 250 CDI / BlueTEC / d (218.903, 218.904)	2012–2017	150 kW
Mercedes-Benz E-Class	W211	E 240 (211.061)	2002–2008	130 kW
Mercedes-Benz E-Class	W211	E 270 CDI (211.016)	2002–2008	130 kW
Mercedes-Benz E-Class	W211	E 320 (211.065)	2002–2008	165 kW
Mercedes-Benz E-Class	W211	E 200 Kompressor (211.042)	2002–2008	120 kW
Mercedes-Benz E-Class	W211	E 280 CDI (211.020)	2005–2008	140 kW
Mercedes-Benz E-Class	W211	E 200 Kompressor (211.041)	2006–2008	135 kW
Mercedes-Benz E-Class	W212	E 200 CDI / BlueTEC (212.005, 212.006)	2009–2015	100 kW
Mercedes-Benz E-Class	W212	E 220 CDI / BlueTEC (212.001, 212.002)	2009–2016	125 kW
Mercedes-Benz E-Class	W212	E 250 CDI / BlueTEC (212.003, 212.004)	2009–2016	150 kW
Mercedes-Benz E-Class	W212	E 250 CGI (212.047, 212.147), E 260 CGI (212.047, 212.147)	2009–2015	150 kW
Mercedes-Benz E-Class	W212	E 200 CGI (212.048, 212.148)	2009–2015	135 kW
Mercedes-Benz E-Class	W212	E 250 CDI / BlueTEC 4-matic (212.082, 212.097)	2011–2015	150 kW
Mercedes-Benz E-Class	W212	E 200 (212.034)	2013–2016	135 kW
Mercedes-Benz E-Class	W212	E 250 (212.036), E 250 Turbo Avantgarde VR4 (212.036), E 260 (212.036)	2013–2016	155 kW
Mercedes-Benz E-Class Estate	S211	E 240 T (211.261)	2003–2009	130 kW
Mercedes-Benz E-Class Estate	S212	E 200 CDI / BlueTEC (212.205, 212.206)	2009–2016	100 kW
Mercedes-Benz E-Class Estate	S212	E 200 CGI (212.248)	2009–2016	135 kW
Mercedes-Benz E-Class Estate	S212	E 220 CDI / BlueTEC (212.202, 212.201)	2009–2016	125 kW
Mercedes-Benz E-Class Estate	S212	E 250 CDI / BlueTEC (212.203, 212.204)	2009–2016	150 kW
Mercedes-Benz E-Class Estate	S212	E 250 CGI (212.247)	2009–2013	150 kW
Mercedes-Benz E-Class Estate	S212	E 200 (212.234)	2012–2016	135 kW
Mercedes-Benz E-Class Estate	S212	E 250 (212.236)	2012–2016	155 kW
No vehicles match your search.

Owner guides for these models: CLS C218 owner guide · CLS Shooting Brake X218 owner guide · E-Class W211 owner guide · E-Class W212 owner guide · E-Class Estate S211 owner guide · E-Class Estate S212 owner guide

Product overview

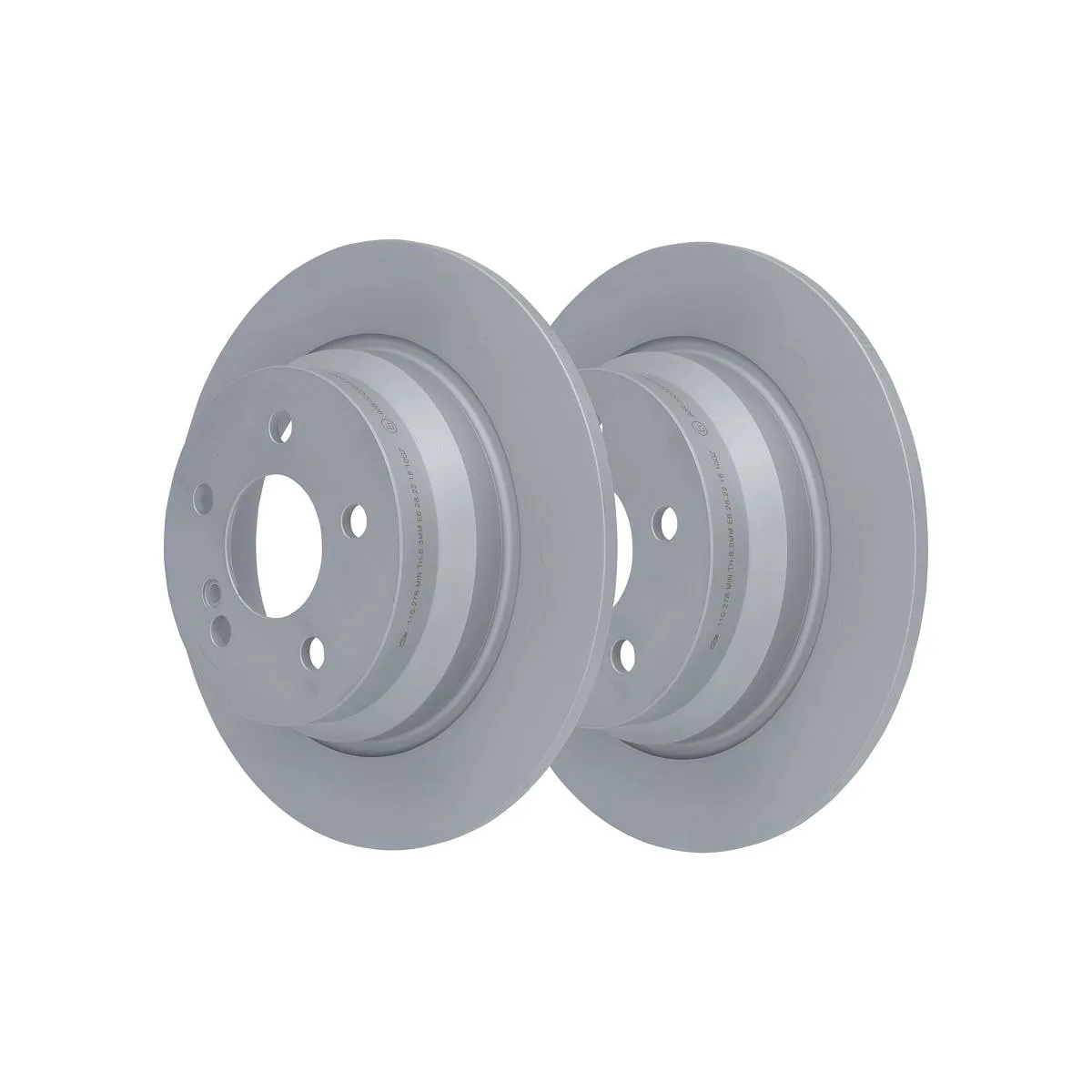

ATE 24.0110-0278.1 is a pair of solid brake discs (rotors). Each disc is 300 mm in diameter and 10 mm thick when new, with a 68.3 mm hat height. The minimum (discard) thickness is 8.3 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0248/0999. Cross-referenced to Mercedes-Benz OE A 211 423 07 12 and 1 other OE number. Confirmed to fit 24 Australian-market variants; the full list is in the fitment table on this page.
