ATE Brake Disc Set (2 pcs) 24.0132-0301.2
Part No. 24.0132-0301.2
Check this part fits your car
Select your vehicle and we will confirm it against the 17 variants listed for this part.
$994.00
incl. GST
Front axle
330 x 32 mm
Fitting bolts
Fits 17 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

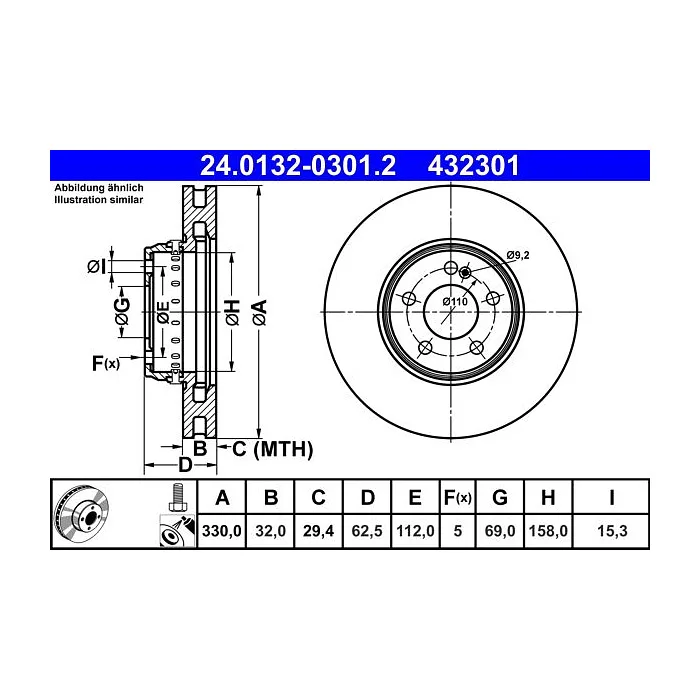

Technical specification
ApprovalE1 90R-02C0679/1103
Height62.5 mm
Bore diameter15.3 mm
Disc typeVented, Two-piece (alloy hat, iron ring)
Thickness when new32 mm
Minimum (discard) thickness29.4 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter158 mm
Outside diameter330 mm
Stud holes5
Centre bore69 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0132-0301.2
Fits OE / OEM numbers
000 421 27 12
A 000 421 27 12
0004212712
A0004212712
Vehicle fitment
17 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | C 300 (205.048) | 2015–2018 | 180 kW |
| Mercedes-Benz C-Class | W205 | C 200 EQ Boost (205.077) | 2018–now | 135 kW |
| Mercedes-Benz C-Class | W205 | C 300 (205.083) | 2018–now | 190 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 300 (205.448) | 2016–2018 | 180 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 300 (205.483) | 2018–now | 190 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 250 d (205.308) | 2015–2018 | 150 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 300 (205.348) | 2015–2018 | 180 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 300 (205.383) | 2018–now | 190 kW |
| Mercedes-Benz C-Class Estate | S205 | C 300 (205.248) | 2015–2018 | 180 kW |
| Mercedes-Benz C-Class Estate | S205 | C 300 (205.283) | 2018–now | 190 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide · E-Class W213 owner guide · E-Class All-Terrain S213 owner guide · E-Class Coupe C238 owner guide · GLC X253 owner guide · GLC Coupe C253 owner guide
Product overview
ATE 24.0132-0301.2 is a pair of vented, two-piece brake discs (rotors). Each disc is 330 mm in diameter and 32 mm thick when new, with a 62.5 mm hat height. The minimum (discard) thickness is 29.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 69 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0679/1103. Cross-referenced to Mercedes-Benz OE A 000 421 27 12. Confirmed to fit 17 Australian-market variants; the full list is in the fitment table on this page.
