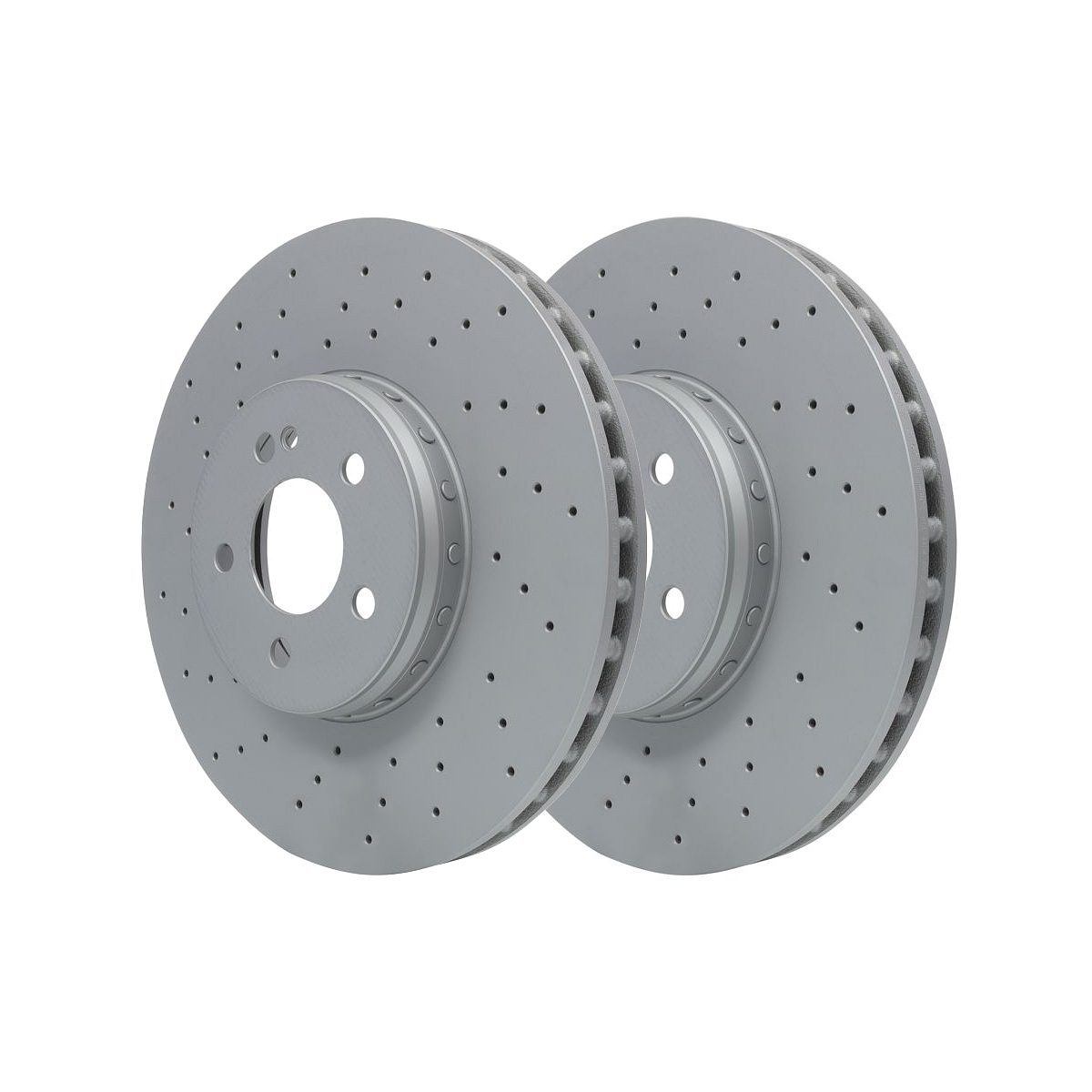

ATE Brake Disc Set (2 pcs) 24.0132-0300.2
Part No. 24.0132-0300.2
Check this part fits your car
Select your vehicle and we will confirm it against the 24 variants listed for this part.
$1,080.00
incl. GST
Front axle
342 x 32 mm
Fitting bolts
Fits 24 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
ApprovalE1 90R-02C0667/1097
Height62.5 mm
Bore diameter15.3 mm
Disc typeCross-drilled and vented, Two-piece (alloy hat, iron ring)
Thickness when new32 mm
Minimum (discard) thickness30 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter158 mm
Outside diameter342 mm
Stud holes5
Centre bore69 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0132-0300.2
Fits OE / OEM numbers
000 421 22 12
A 000 421 22 12
0004212212
A0004212212
Vehicle fitment
24 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ C-Class | W205 | C 250 BlueTEC / d (205.008, 205.006), C 250 d (205.008, 205.006) | 2014–2018 | 150 kW |
| MERCEDES-BENZ C-Class | W205 | C 250 (205.045) | 2014–2018 | 155 kW |
| MERCEDES-BENZ C-Class | W205 | C 300 BlueTEC Hybrid / h (205.012) | 2014–2018 | 170 kW |
| MERCEDES-BENZ C-Class | W205 | C 350 e (205.047) | 2015–2018 | 205 kW |
| MERCEDES-BENZ C-Class | W205 | C 300 (205.048) | 2015–2018 | 180 kW |
| MERCEDES-BENZ C-Class | W205 | C 300 (205.083) | 2018–now | 190 kW |
| MERCEDES-BENZ C-Class | W205 | C 300 e (205.053) | 2019–now | 235 kW |
| MERCEDES-BENZ C-Class Convertible | A205 | C 300 (205.448) | 2016–2018 | 180 kW |
| MERCEDES-BENZ C-Class Convertible | A205 | C 300 (205.483) | 2018–now | 190 kW |
| MERCEDES-BENZ C-Class Coupe | C205 | C 250 d (205.308) | 2015–2018 | 150 kW |
Product overview
ATE 24.0132-0300.2 is a pair of cross-drilled, vented, two-piece brake discs (rotors). Each disc is 342 mm in diameter and 32 mm thick when new, with a 62.5 mm hat height. The minimum (discard) thickness is 30 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 69 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0667/1097. Cross-referenced to Mercedes-Benz OE A 000 421 22 12. Confirmed to fit 24 Australian-market variants; the full list is in the fitment table on this page.
