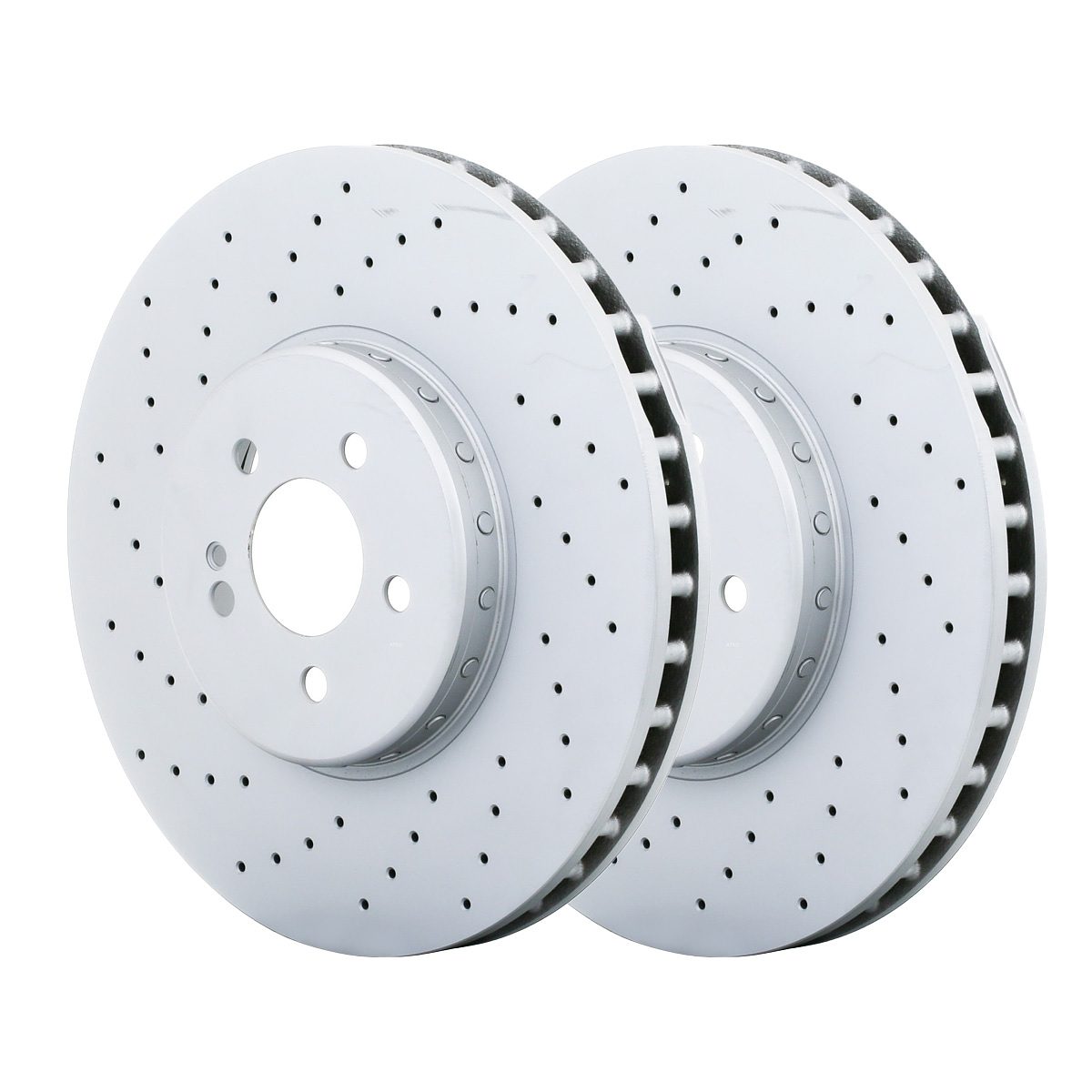

ATE Brake Disc Set (2 pcs) 24.0136-0134.2
Part No. 24.0136-0134.2
Check this part fits your car
Select your vehicle and we will confirm it against the 46 variants listed for this part.
$960.00
incl. GST
Front axle
360 x 36 mm
Fitting bolts
Fits 46 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

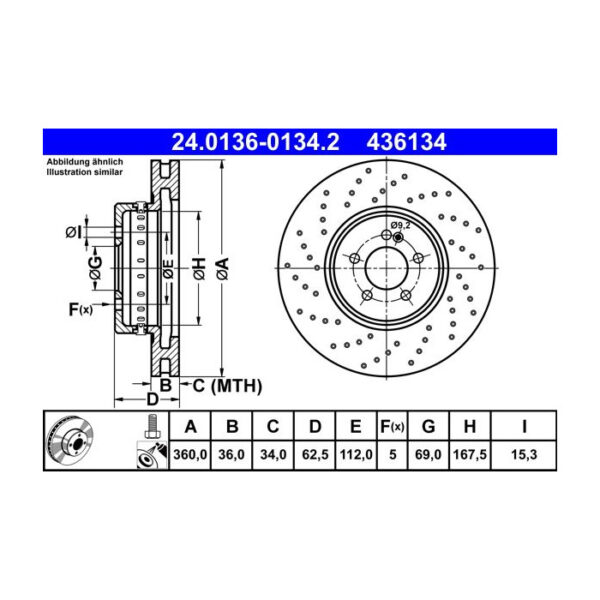

Technical specification
ApprovalE1 90R-02C0610/1046
Height62.5 mm
Bore diameter15.3 mm
Disc typeCross-drilled and vented, Two-piece (alloy hat, iron ring)
Thickness when new36 mm
Minimum (discard) thickness34 mm
Iron gradeHigh-carbon cast iron
Inside diameter167.5 mm
Outside diameter360 mm
Stud holes5
Centre bore69 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0136-0134.2
Fits OE / OEM numbers
000 421 23 12
A 000 421 23 12
0004212312
A0004212312
Vehicle fitment
46 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | AMG C 43 4-matic (205.064) | 2016–2018 | 270 kW |
| Mercedes-Benz C-Class | W205 | AMG C 43 4-matic (205.064) | 2018–now | 287 kW |
| Mercedes-Benz C-Class Convertible | A205 | AMG C 43 4-matic (205.464) | 2016–2018 | 270 kW |
| Mercedes-Benz C-Class Convertible | A205 | AMG C 43 4-matic (205.464) | 2018–now | 287 kW |
| Mercedes-Benz C-Class Coupe | C205 | AMG C 43 4-matic (205.364) | 2016–2018 | 270 kW |
| Mercedes-Benz C-Class Coupe | C205 | AMG C 43 4-matic (205.364) | 2018–now | 287 kW |
| Mercedes-Benz C-Class Estate | S205 | AMG C 43 4-matic (205.264) | 2016–2018 | 270 kW |
| Mercedes-Benz C-Class Estate | S205 | AMG C 43 4-matic (205.264) | 2018–now | 287 kW |
| Mercedes-Benz CLS | C257 | CLS 450 EQ Boost 4-matic (257.359) | 2017–now | 270 kW |
| Mercedes-Benz CLS | C257 | CLS 350 EQ Boost (257.350) | 2018–now | 220 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide · CLS C257 owner guide · E-Class W213 owner guide · E-Class Convertible A238 owner guide · E-Class Coupe C238 owner guide · GLC X253 owner guide · GLC Coupe C253 owner guide
Product overview
ATE 24.0136-0134.2 is a pair of cross-drilled, vented, two-piece brake discs (rotors). Each disc is 360 mm in diameter and 36 mm thick when new, with a 62.5 mm hat height. The minimum (discard) thickness is 34 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 69 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0610/1046. Cross-referenced to Mercedes-Benz OE A 000 421 23 12. Confirmed to fit 46 Australian-market variants; the full list is in the fitment table on this page.
