ATE Brake Pad Set 13.0460-2607.2
Part No. 13.0460-2607.2
Check this part fits your car
Select your vehicle and we will confirm it against the 9 variants listed for this part.
$332.00
incl. GST
Lucas / TRW
16.6 mm
Accepts a wear sensor, none supplied
Fitting accessories and Caliper bolts
Fits 9 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

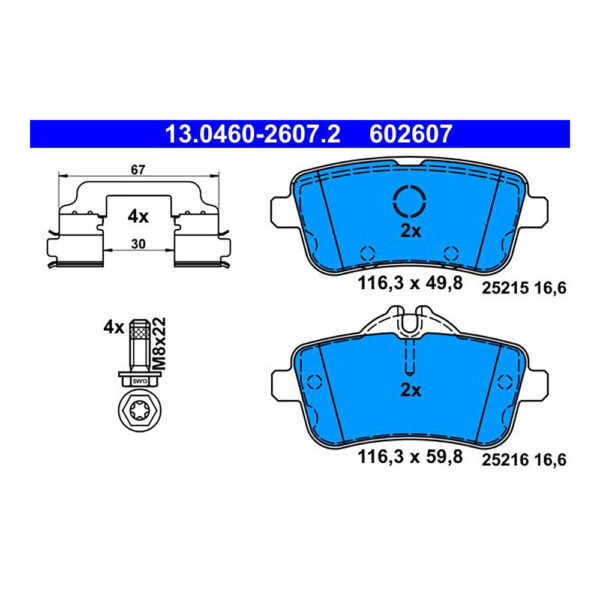

Technical specification
Thickness16.6 mm
ApprovalE1 90R-02A0525/0087
Width116.3 mm
Height (1)49.8 mm
Height (2)59.8 mm
Wear sensorAccepts a wear sensor, none supplied
NotesFitting accessories included
Caliper make (factory-fitted)Lucas / TRW
In the boxCaliper bolts included
Bolts supplied4
OE & OEM cross-reference
Supplier part number
13.0460-2607.2
Fits OE / OEM numbers
006 420 35 20
A 006 420 35 20
0064203520
A0064203520
006 420 63 20
A 006 420 63 20
0064206320
A0064206320
007 420 86 20
A 007 420 86 20
0074208620
A0074208620
Vehicle fitment
9 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz GL-Class | X166 | GL 63 AMG 4-matic (166.874) | 2012–2015 | 410 kW |
| Mercedes-Benz GLE | W166 | 63 AMG S 4-matic (166.075), AMG 63 S 4-matic (166.075) | 2015–2018 | 430 kW |
| Mercedes-Benz GLE | W166 | AMG 43 4-matic (166.064) | 2017–2018 | 287 kW |
| Mercedes-Benz GLE Coupe | C292 | AMG 63 S 4-matic (292.375) | 2015–2019 | 430 kW |
| Mercedes-Benz GLS | X166 | 350 BlueTec / d 4-matic (166.824), 350 d 4-matic (166.824) | 2015–2019 | 190 kW |
| Mercedes-Benz GLS | X166 | 500 4-matic (166.873), 550 4-matic (166.873) | 2015–2019 | 335 kW |
| Mercedes-Benz GLS | X166 | 63 AMG 4-matic (166.875), AMG 63 4-matic (166.875) | 2015–2019 | 430 kW |
| Mercedes-Benz M-Class | W166 | ML 63 AMG 4-matic (166.074) | 2011–2015 | 386 kW |
| Mercedes-Benz M-Class | W166 | ML 63 AMG 4-matic (166.074) | 2011–2015 | 410 kW |
Owner guides for these models: GL-Class X166 owner guide · GLE W166 owner guide · GLE Coupe C292 owner guide · GLS X166 owner guide · M-Class W166 owner guide
Product overview

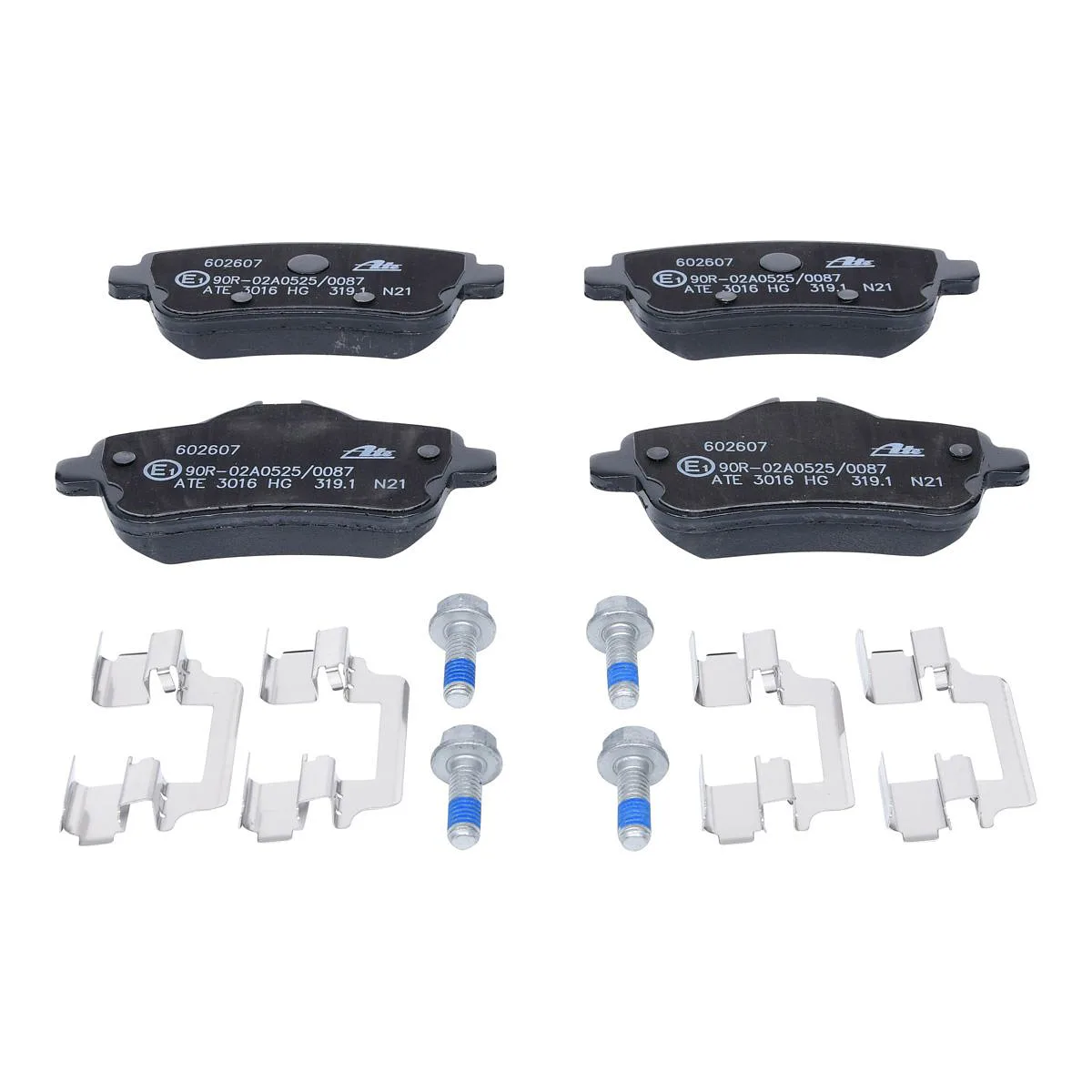

ATE 13.0460-2607.2 is a brake pad set for vehicles fitted with Lucas / TRW calipers. The pads are 116.3 mm wide, 49.8 mm and 59.8 mm tall, and 16.6 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. In the box: fitting accessories and caliper bolts. It carries ECE R90 type approval, marked E1 90R-02A0525/0087. Cross-referenced to Mercedes-Benz OE A 006 420 35 20 and 2 other OE numbers. Confirmed to fit 9 Australian-market variants; the full list is in the fitment table on this page.
