ATE Brake Pad Set 13.0460-2786.2
Part No. 13.0460-2786.2
Check this part fits your car
Select your vehicle and we will confirm it against the 48 variants listed for this part.
$145.00
incl. GST
Lucas / TRW
18.3 mm
Accepts a wear sensor, none supplied
Fitting accessories and Caliper bolts
Fits 48 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Thickness18.3 mm
ApprovalE1 90R-02A0498/0033
Width106.4 mm
Height58.9 mm
Wear sensorAccepts a wear sensor, none supplied
NotesFitting accessories included
Caliper make (factory-fitted)Lucas / TRW
In the boxCaliper bolts included
Bolts supplied4
OE & OEM cross-reference
Supplier part number
13.0460-2786.2
Fits OE / OEM numbers
006 420 23 20
A 006 420 23 20
0064202320
A0064202320
006 420 80 20
A 006 420 80 20
0064208020
A0064208020
006 420 83 20
A 006 420 83 20
0064208320
A0064208320
007 420 95 20
A 007 420 95 20
0074209520
A0074209520
006 420 79 20
A 006 420 79 20
0064207920
A0064207920
007 420 94 20
A 007 420 94 20
0074209420
A0074209420
Vehicle fitment
48 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ A-Class | W176 | A 180 CDI (176.000) | 2012–2014 | 80 kW |
| MERCEDES-BENZ A-Class | W176 | A 180 CDI / d (176.012) | 2012–2018 | 80 kW |
| MERCEDES-BENZ A-Class | W176 | A 200 (176.043), A 200 Turbo Urban Style (176.043) | 2012–2018 | 115 kW |
| MERCEDES-BENZ A-Class | W176 | A 200 CDI (176.001) | 2012–2014 | 100 kW |
| MERCEDES-BENZ A-Class | W176 | A 250 (176.044), A 260 (176.044) | 2012–2018 | 155 kW |
| MERCEDES-BENZ A-Class | W176 | A 180 (176.042) | 2012–2018 | 90 kW |
| MERCEDES-BENZ A-Class | W176 | A 220 CDI (176.003) | 2012–2018 | 125 kW |
| MERCEDES-BENZ A-Class | W176 | A 250 4-matic (176.046) | 2013–2018 | 155 kW |
| MERCEDES-BENZ A-Class | W176 | A 200 CDI / d (176.008) | 2014–2018 | 100 kW |
| MERCEDES-BENZ A-Class | W176 | A 250 (176.050) | 2015–2018 | 160 kW |
Product overview

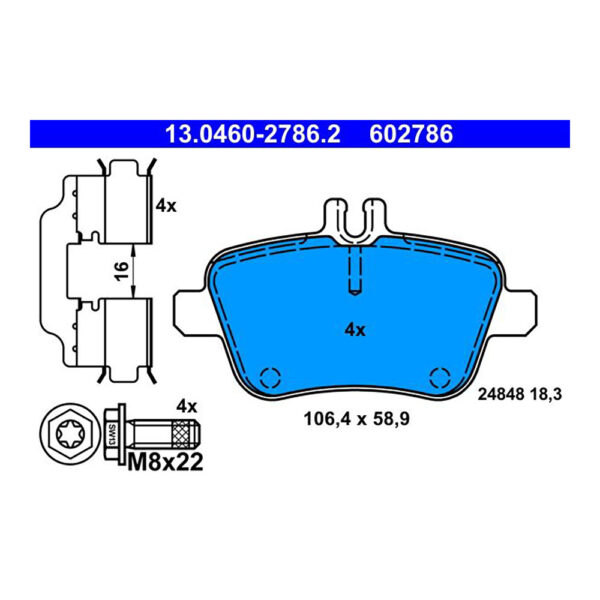

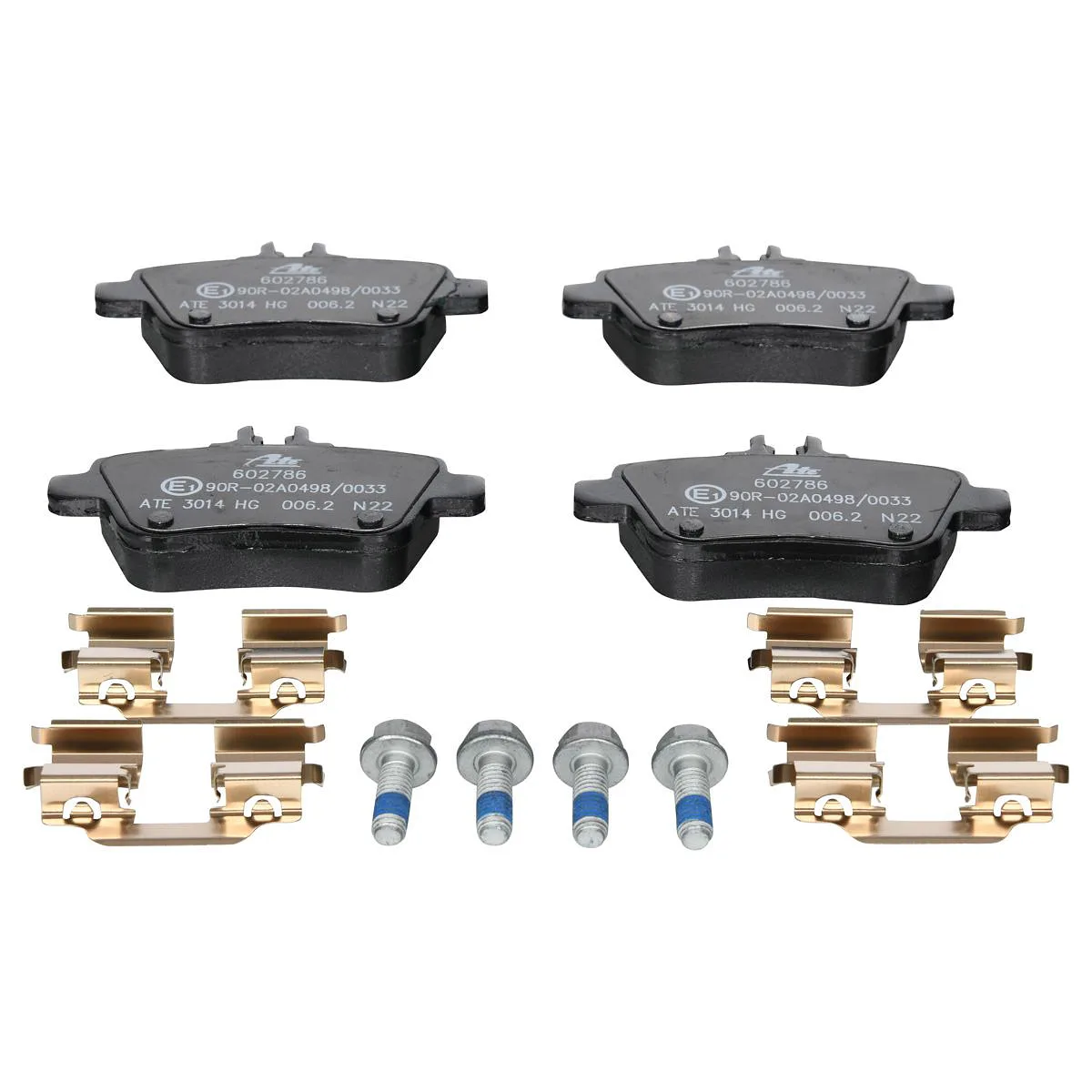

ATE 13.0460-2786.2 is a brake pad set for vehicles fitted with Lucas / TRW calipers. The pads are 106.4 mm wide, 58.9 mm tall, and 18.3 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. In the box: fitting accessories and caliper bolts. It carries ECE R90 type approval, marked E1 90R-02A0498/0033. Cross-referenced to Mercedes-Benz OE A 006 420 23 20 and 5 other OE numbers. Confirmed to fit 48 Australian-market variants; the full list is in the fitment table on this page.
