ATE Ceramic Brake Pad Set 13.0470-2779.2
Part No. 13.0470-2779.2
Check this part fits your car
Select your vehicle and we will confirm it against the 45 variants listed for this part.
$228.00
incl. GST
Lucas / TRW
19.3 mm
Accepts a wear sensor, none supplied
Caliper bolts
Fits 45 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

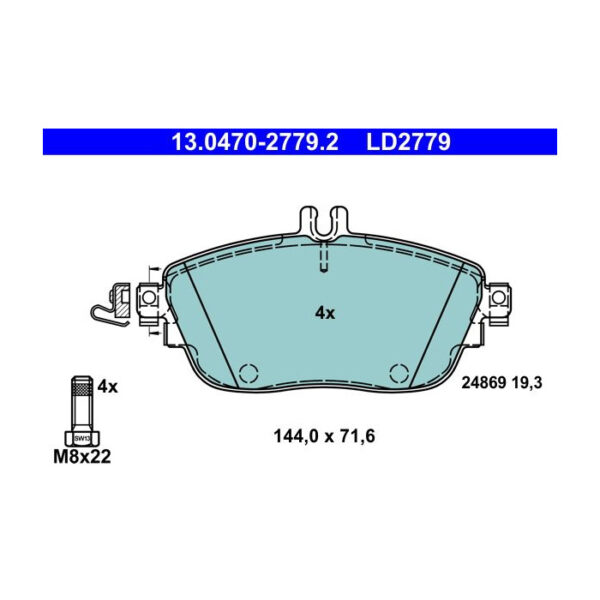

Technical specification
Thickness19.3 mm
ApprovalE1 90R-02A0258/0015
Width144 mm
Height71.6 mm
Wear sensorAccepts a wear sensor, none supplied
Caliper make (factory-fitted)Lucas / TRW
In the boxCaliper bolts included
Bolts supplied4
OE & OEM cross-reference
Supplier part number
13.0470-2779.2
Fits OE / OEM numbers
006 420 46 20
A 006 420 46 20
0064204620
A0064204620
006 420 85 20
A 006 420 85 20
0064208520
A0064208520
008 420 06 20
A 008 420 06 20
0084200620
A0084200620
000 420 30 02
A 000 420 30 02
0004203002
A0004203002
006 420 47 20
A 006 420 47 20
0064204720
A0064204720
008 420 03 20
A 008 420 03 20
0084200320
A0084200320
Vehicle fitment
45 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 180 CDI (176.000) | 2012–2014 | 80 kW |
| Mercedes-Benz A-Class | W176 | A 180 CDI / d (176.012) | 2012–2018 | 80 kW |
| Mercedes-Benz A-Class | W176 | A 200 (176.043), A 200 Turbo Urban Style (176.043) | 2012–2018 | 115 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI (176.001) | 2012–2014 | 100 kW |
| Mercedes-Benz A-Class | W176 | A 250 (176.044), A 260 (176.044) | 2012–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 180 (176.042) | 2012–2018 | 90 kW |
| Mercedes-Benz A-Class | W176 | A 220 CDI (176.003) | 2012–2018 | 125 kW |
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.046) | 2013–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI / d (176.008) | 2014–2018 | 100 kW |
| Mercedes-Benz A-Class | W176 | A 250 (176.050) | 2015–2018 | 160 kW |
Owner guides for these models: A-Class W176 owner guide · B-Class Sports Tourer W246, W242 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview

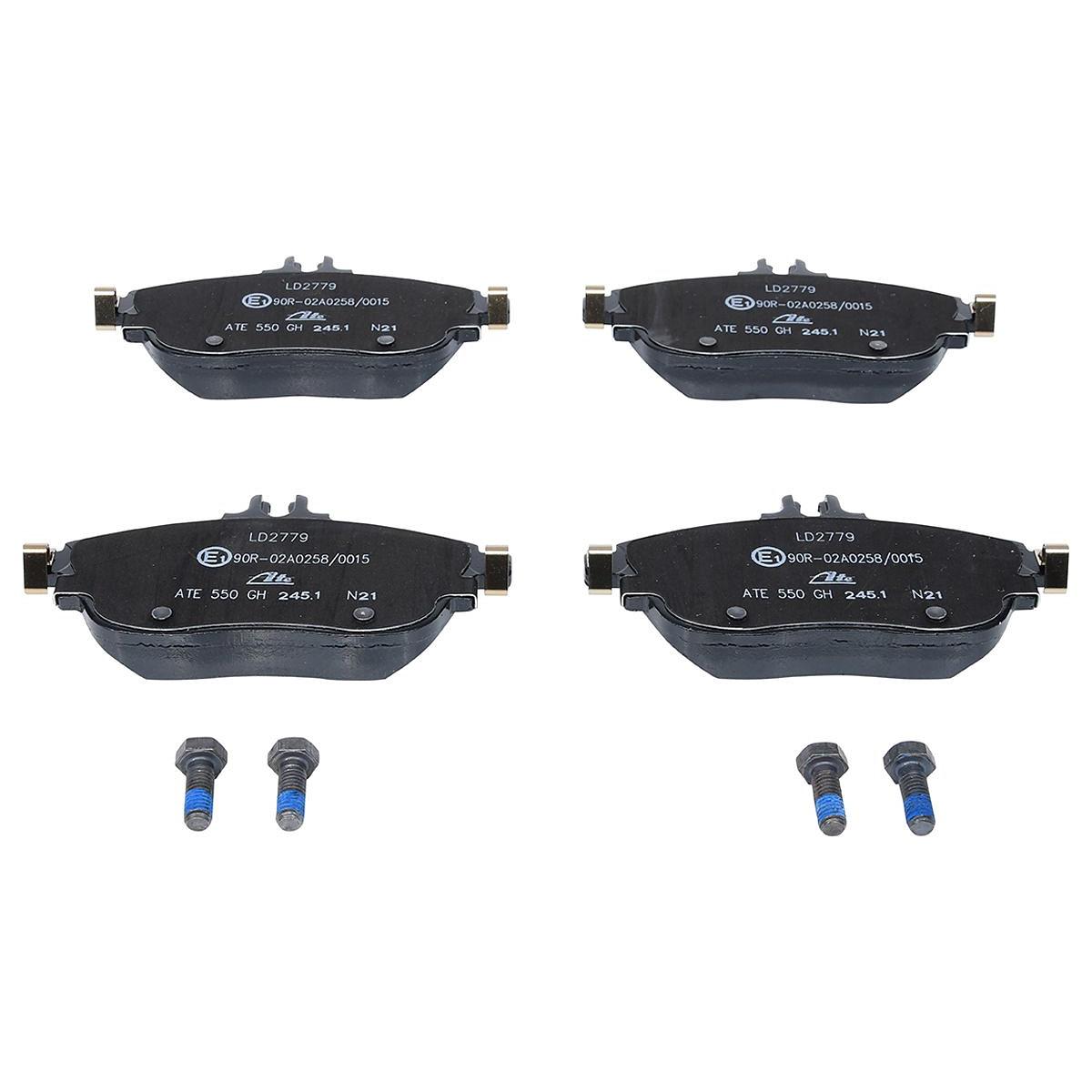

ATE 13.0470-2779.2 is a brake pad set for vehicles fitted with Lucas / TRW calipers. The pads are 144 mm wide, 71.6 mm tall, and 19.3 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. In the box: caliper bolts. It carries ECE R90 type approval, marked E1 90R-02A0258/0015. Cross-referenced to Mercedes-Benz OE A 006 420 46 20 and 5 other OE numbers. Confirmed to fit 45 Australian-market variants; the full list is in the fitment table on this page.
