ATE Ceramic Brake Pad Set 13.0470-2782.2
Part No. 13.0470-2782.2
Check this part fits your car
Select your vehicle and we will confirm it against the 8 variants listed for this part.
$436.00
incl. GST
Lucas / TRW
18.6 mm
Accepts a wear sensor, none supplied
Fitting accessories and Caliper bolts
Fits 8 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

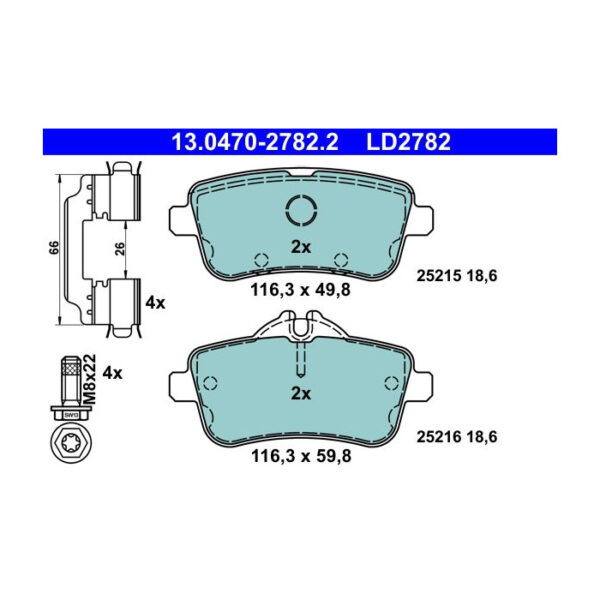

Technical specification
Thickness18.6 mm
ApprovalE9 90R-02A0258/0086
Width116.3 mm
Height (1)49.8 mm
Height (2)59.8 mm
Wear sensorAccepts a wear sensor, none supplied
NotesFitting accessories included
Caliper make (factory-fitted)Lucas / TRW
In the boxCaliper bolts included
Bolts supplied4
OE & OEM cross-reference
Supplier part number
13.0470-2782.2
Fits OE / OEM numbers
006 420 33 20
A 006 420 33 20
0064203320
A0064203320
007 420 77 20
A 007 420 77 20
0074207720
A0074207720
006 420 34 20
A 006 420 34 20
0064203420
A0064203420
007 420 78 20
A 007 420 78 20
0074207820
A0074207820
007 420 90 20
A 007 420 90 20
0074209020
A0074209020
000 420 67 04
A 000 420 67 04
0004206704
A0004206704
006 420 68 20
A 006 420 68 20
0064206820
A0064206820
Vehicle fitment
8 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz GL-Class | X166 | GL 350 CDI / BlueTec 4-matic (166.823, 166.824) | 2012–2015 | 190 kW |
| Mercedes-Benz GLE | W166 | 250 d 4-matic (166.004), 300 d 4-matic (166.004) | 2015–2018 | 150 kW |
| Mercedes-Benz GLE | W166 | 350 d 4-matic (166.024) | 2015–2018 | 190 kW |
| Mercedes-Benz GLE Coupe | C292 | 350 d 4-matic (292.323, 292.324) | 2015–2019 | 190 kW |
| Mercedes-Benz GLS | X166 | 350 BlueTec / d 4-matic (166.824), 350 d 4-matic (166.824) | 2015–2019 | 190 kW |
| Mercedes-Benz M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| Mercedes-Benz M-Class | W166 | ML 350 4-matic (166.057) | 2011–2015 | 225 kW |
| Mercedes-Benz M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
Owner guides for these models: GL-Class X166 owner guide · GLE W166 owner guide · GLE Coupe C292 owner guide · GLS X166 owner guide · M-Class W166 owner guide
Product overview

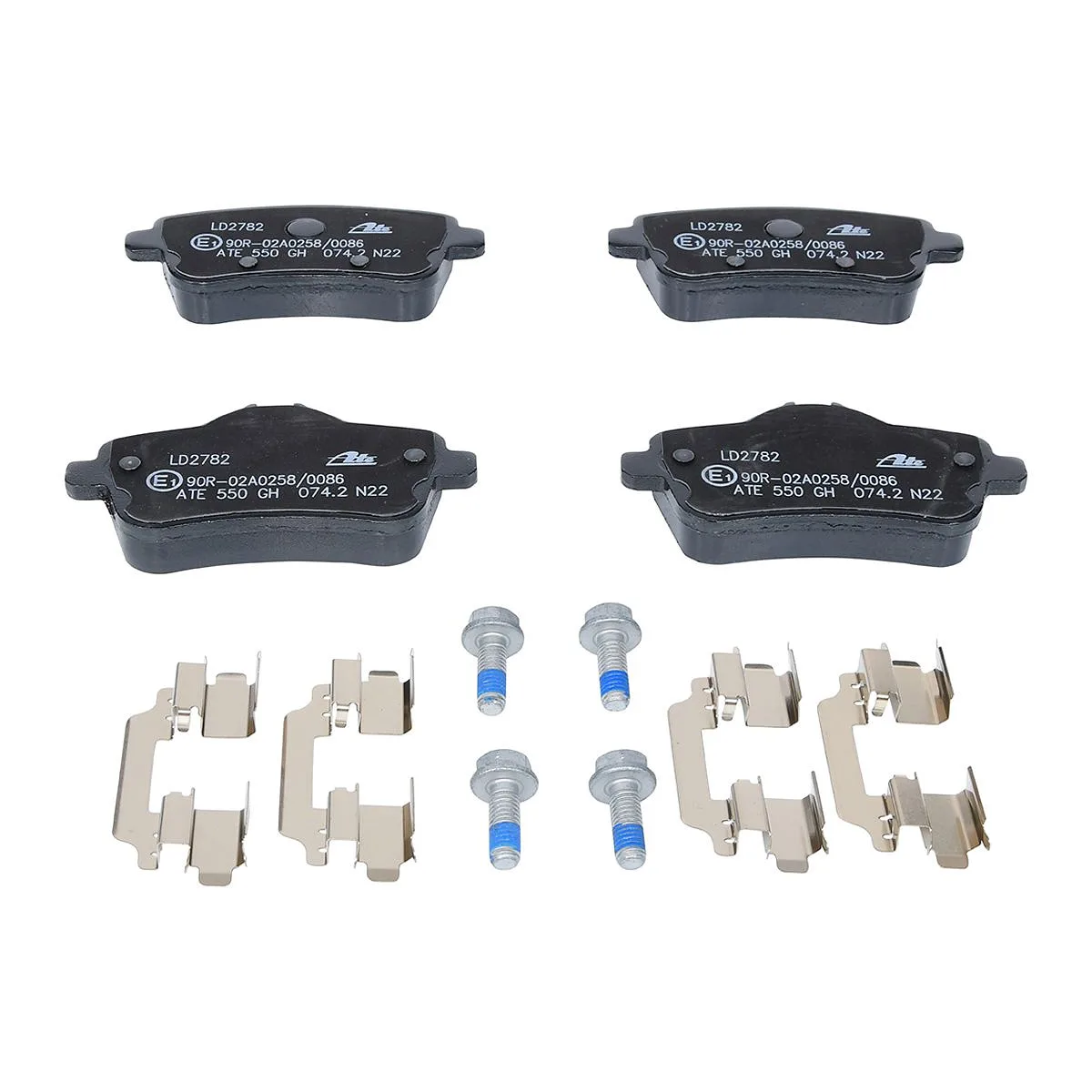

ATE 13.0470-2782.2 is a brake pad set for vehicles fitted with Lucas / TRW calipers. The pads are 116.3 mm wide, 49.8 mm and 59.8 mm tall, and 18.6 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. In the box: fitting accessories and caliper bolts. It carries ECE R90 type approval, marked E9 90R-02A0258/0086. Cross-referenced to Mercedes-Benz OE A 006 420 33 20 and 6 other OE numbers. Confirmed to fit 8 Australian-market variants; the full list is in the fitment table on this page.
