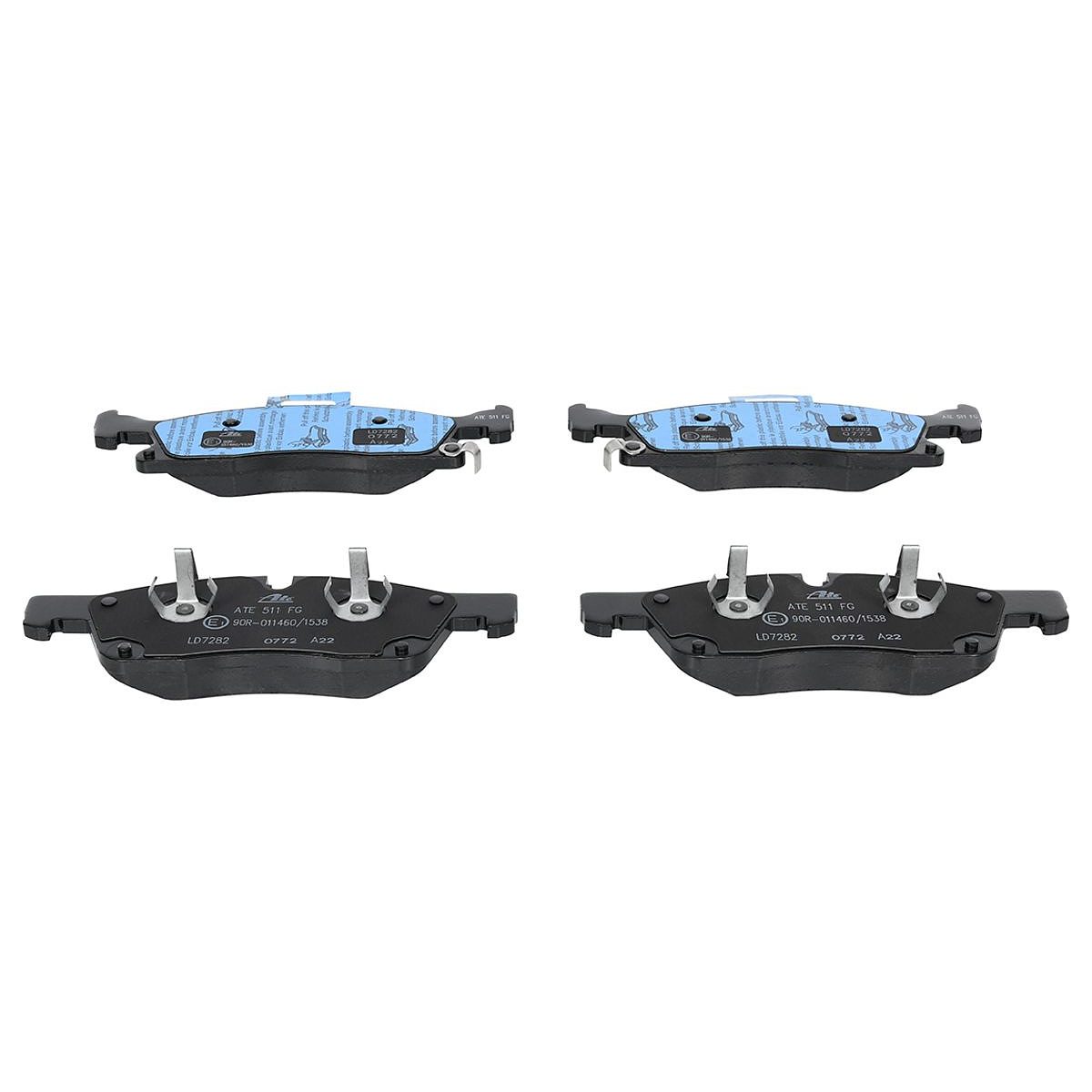

ATE Ceramic Brake Pad Set 13.0470-7282.2
Part No. 13.0470-7282.2
Check this part fits your car
Select your vehicle and we will confirm it against the 8 variants listed for this part.
$284.00
incl. GST
ATE
21.3 mm
No wear sensor supplied
Fits 8 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

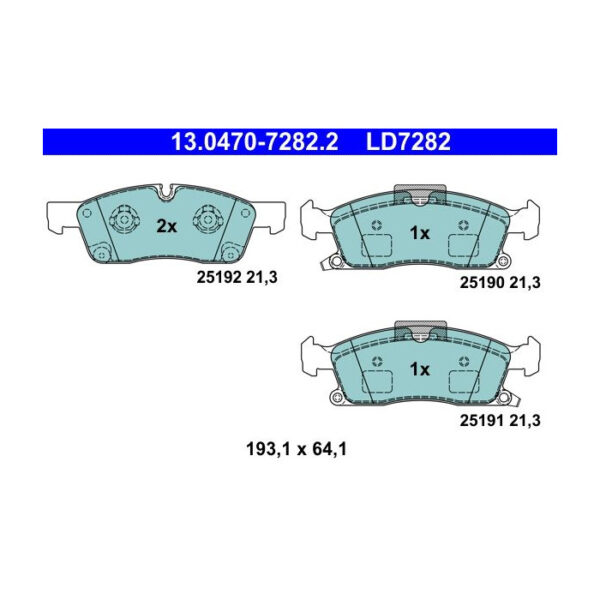

Technical specification
Thickness21.3 mm
ApprovalE1 90R-02A0479/0596
Width193.1 mm
Height64.1 mm
Wear sensorNo wear sensor supplied
Caliper make (factory-fitted)ATE
OE & OEM cross-reference
Supplier part number
13.0470-7282.2
Fits OE / OEM numbers
006 420 38 20
A 006 420 38 20
0064203820
A0064203820
006 420 39 20
A 006 420 39 20
0064203920
A0064203920
007 420 80 20
A 007 420 80 20
0074208020
A0074208020
Vehicle fitment
8 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ GL-Class | X166 | GL 350 CDI / BlueTec 4-matic (166.823, 166.824) | 2012–2015 | 190 kW |
| MERCEDES-BENZ GLE | W166 | 250 d 4-matic (166.004), 300 d 4-matic (166.004) | 2015–2018 | 150 kW |
| MERCEDES-BENZ GLE | W166 | 350 d 4-matic (166.024) | 2015–2018 | 190 kW |
| MERCEDES-BENZ GLE Coupe | C292 | 350 d 4-matic (292.323, 292.324) | 2015–2019 | 190 kW |
| MERCEDES-BENZ GLS | X166 | 350 BlueTec / d 4-matic (166.824), 350 d 4-matic (166.824) | 2015–2019 | 190 kW |
| MERCEDES-BENZ M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| MERCEDES-BENZ M-Class | W166 | ML 350 4-matic (166.057) | 2011–2015 | 225 kW |
| MERCEDES-BENZ M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
Product overview
ATE 13.0470-7282.2 is a brake pad set for vehicles fitted with ATE calipers. The pads are 193.1 mm wide, 64.1 mm tall, and 21.3 mm thick. No wear sensor is supplied with the set. It carries ECE R90 type approval, marked E1 90R-02A0479/0596. Cross-referenced to Mercedes-Benz OE A 006 420 38 20 and 2 other OE numbers. Confirmed to fit 8 Australian-market variants; the full list is in the fitment table on this page.
