Brembo Brake Disc Set (2 pcs) 09.A961.11
Part No. 09.A961.11
Check this part fits your car
Select your vehicle and we will confirm it against the 9 variants listed for this part.
$262.00
incl. GST
Rear axle
345 x 22 mm
Fitting bolts
Fits 9 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

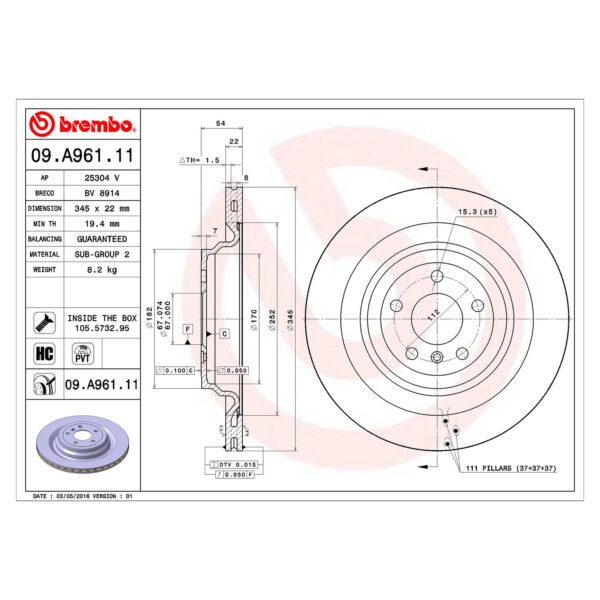

Technical specification
Height54 mm
Disc typeInternally vented
Thickness when new22 mm
Minimum (discard) thickness19.4 mm
Iron gradeHigh-carbon cast iron
Outside diameter345 mm
Stud holes5
Centre bore67 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
09.A961.11
Fits OE / OEM numbers
166 423 02 12
A 166 423 02 12
1664230212
A1664230212
166 423 07 00
A 166 423 07 00
1664230700
A1664230700
Vehicle fitment
9 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz GL-Class | X166 | GL 350 CDI / BlueTec 4-matic (166.823, 166.824) | 2012–2015 | 190 kW |
| Mercedes-Benz GLS | X166 | 350 BlueTec / d 4-matic (166.824), 350 d 4-matic (166.824) | 2015–2019 | 190 kW |
| Mercedes-Benz GLS | X166 | 500 4-matic (166.873), 550 4-matic (166.873) | 2015–2019 | 335 kW |
| Mercedes-Benz M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| Mercedes-Benz M-Class | W166 | ML 350 4-matic (166.057) | 2011–2015 | 225 kW |
| Mercedes-Benz M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
| Mercedes-Benz M-Class | W166 | ML 63 AMG 4-matic (166.074) | 2011–2015 | 386 kW |
| Mercedes-Benz M-Class | W166 | ML 63 AMG 4-matic (166.074) | 2011–2015 | 410 kW |
| Mercedes-Benz M-Class | W166 | ML 500 4-matic (166.073), ML 550 4-matic (166.073) | 2012–2015 | 300 kW |
Owner guides for these models: GL-Class X166 owner guide · GLS X166 owner guide · M-Class W166 owner guide
Product overview

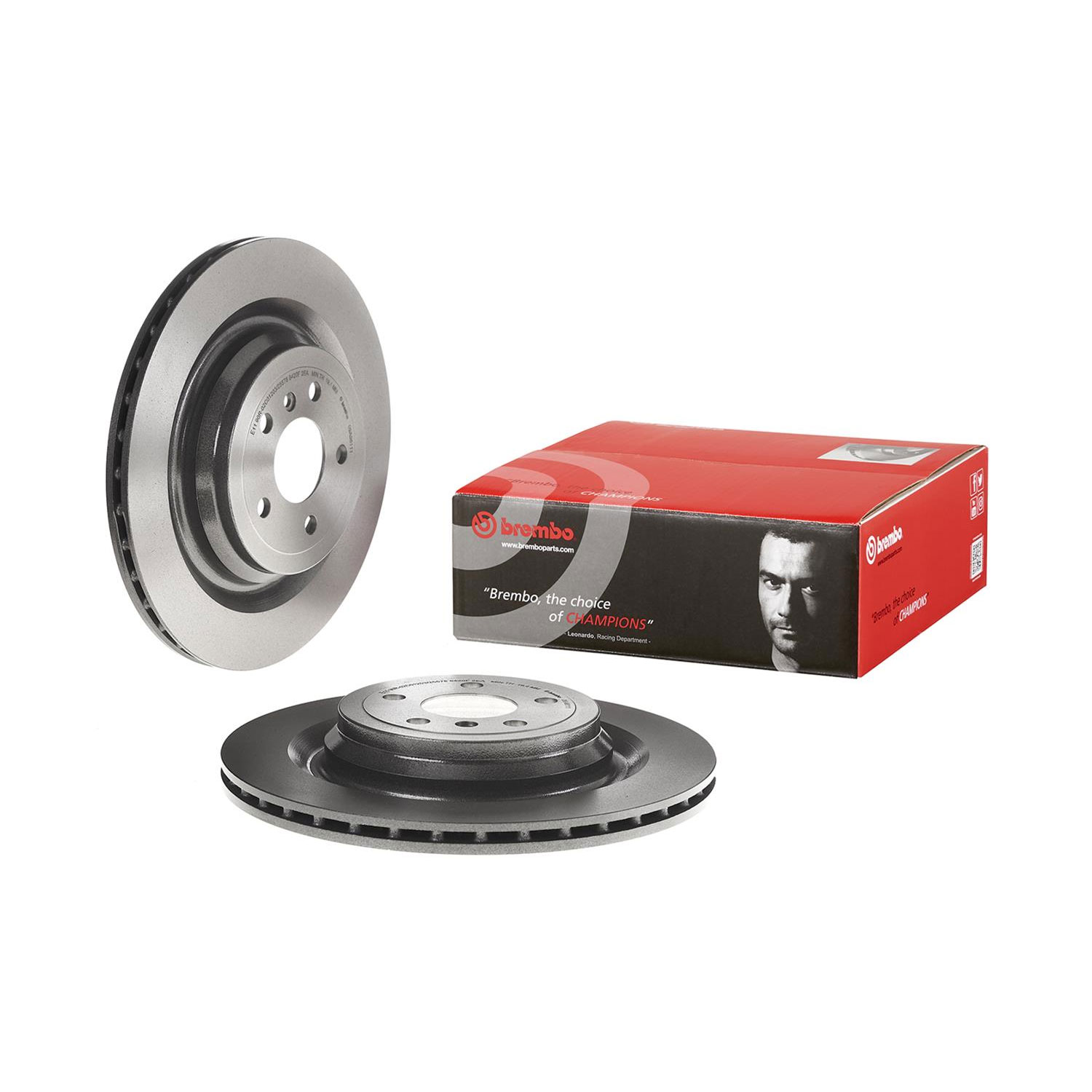

Brembo 09.A961.11 is a pair of internally vented brake discs (rotors). Each disc is 345 mm in diameter and 22 mm thick when new, with a 54 mm hat height. The minimum (discard) thickness is 19.4 mm. Each disc has 5 stud holes, with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 166 423 02 12 and 1 other OE number. Confirmed to fit 9 Australian-market variants; the full list is in the fitment table on this page.
