Zimmermann 276mm Brake Disc Set (2 pcs) 150.1283.20
Part No. 150.1283.20
Check this part fits your car
Select your vehicle and we will confirm it against the 20 variants listed for this part.
$276.00
incl. GST
Rear axle
276 x 19 mm
Fits 20 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeExternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter276 mm
Thickness when new19 mm
Height60 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Part weight5.3 kg
Minimum (discard) thickness17.4 mm
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1283.20
Fits OE / OEM numbers
3421 1 162 315
3421 1 165 211
3421 6 855 155
3421 6 864 903
3421 6 855 155
3421 1 165 211
3421 1 162 315
3421 6 864 903
Vehicle fitment
20 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E36 | 328 i | 1995–1998 | 142 kW |
| BMW 3 Series | E36 | 323 i | 1995–1998 | 125 kW |
| BMW 3 Series | E46 | 318 i | 1997–2001 | 87 kW |
| BMW 3 Series | E46 | 320 i | 1998–2000 | 110 kW |
| BMW 3 Series | E46 | 323 i, 323 ti | 1998–2000 | 125 kW |
| BMW 3 Series | E46 | 316 i | 1998–2002 | 77 kW |
| BMW 3 Series | E46 | 320 i | 2000–2005 | 125 kW |
| BMW 3 Series | E46 | 318 i | 2001–2005 | 105 kW |
| BMW 3 Series Compact | E46 | 318 ti | 2001–2004 | 105 kW |
| BMW 3 Series Compact | E46 | 316 ti | 2001–2005 | 85 kW |
Product overview

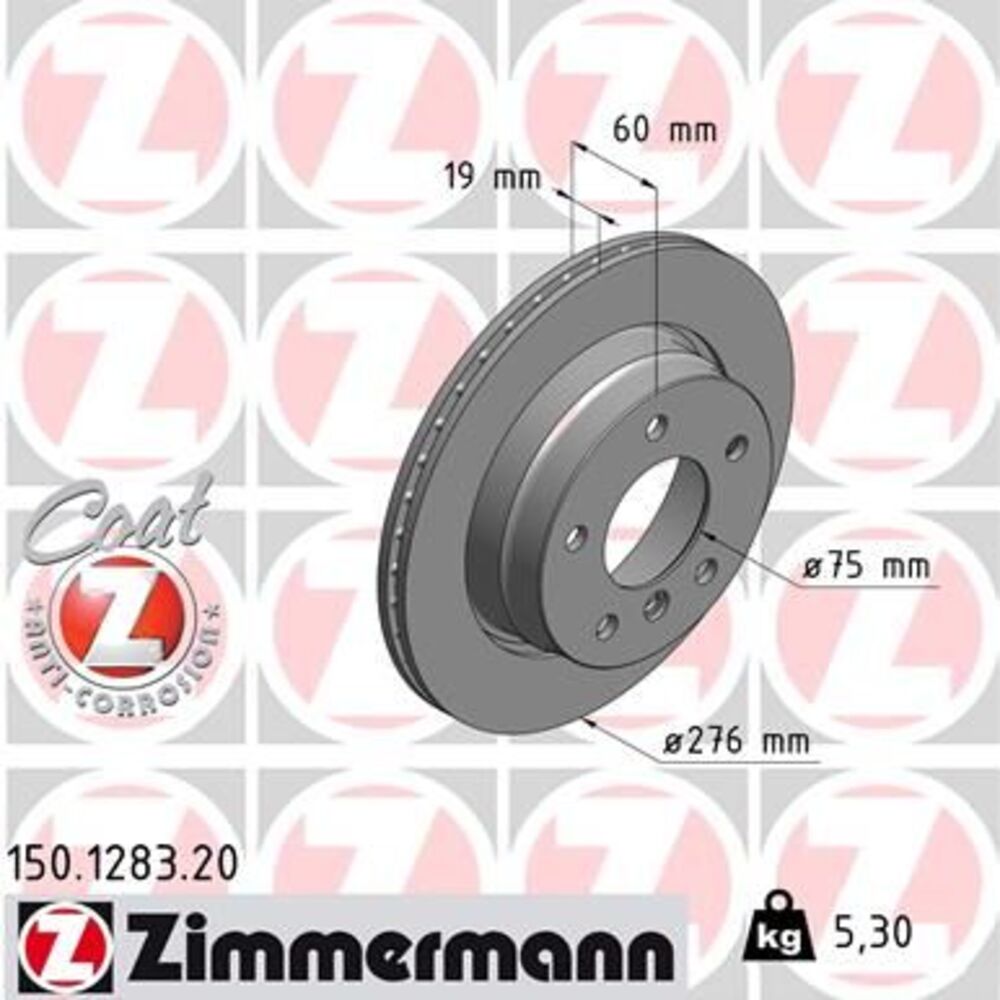

Zimmermann 150.1283.20 is a pair of externally vented brake discs (rotors). Each disc is 276 mm in diameter and 19 mm thick when new, with a 60 mm hat height. The minimum (discard) thickness is 17.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 1 162 315 and 3 other OE numbers. Confirmed to fit 20 Australian-market variants; the full list is in the fitment table on this page.
