Zimmermann 280mm Brake Disc Set (2 pcs) 150.1270.20
Part No. 150.1270.20
Check this part fits your car
Select your vehicle and we will confirm it against the 23 variants listed for this part.
$234.00
incl. GST
Rear axle
280 x 10 mm
Fits 23 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeSolid
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter280 mm
Thickness when new10 mm
Height60 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness8.4 mm
Part weight4.6 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1270.20
Fits OE / OEM numbers
3421 1 158 936
3421 1 162 289
3421 1 165 457
3421 1 164 401
3421 6 855 158
Vehicle fitment
23 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E36 | 318 i | 1990–1993 | 83 kW |
| BMW 3 Series | E36 | 325 i | 1990–1995 | 141 kW |
| BMW 3 Series | E36 | 320 i | 1991–1998 | 110 kW |
| BMW 3 Series | E36 | 316 i, 316 i Exclusive | 1991–1993 | 73 kW |
| BMW 3 Series | E36 | 316 i, 316 i Exclusive | 1993–1998 | 75 kW |
| BMW 3 Series | E36 | 318 i | 1993–1998 | 85 kW |
| BMW 3 Series | E36 | 318 is, 318 is M Sport | 1993–1995 | 103 kW |
| BMW 3 Series | E36 | 323 i | 1995–1998 | 125 kW |
| BMW 3 Series | E36 | 318 is, 318i | 1996–1998 | 103 kW |
| BMW 3 Series | E46 | 318 i | 1997–2001 | 87 kW |
Product overview

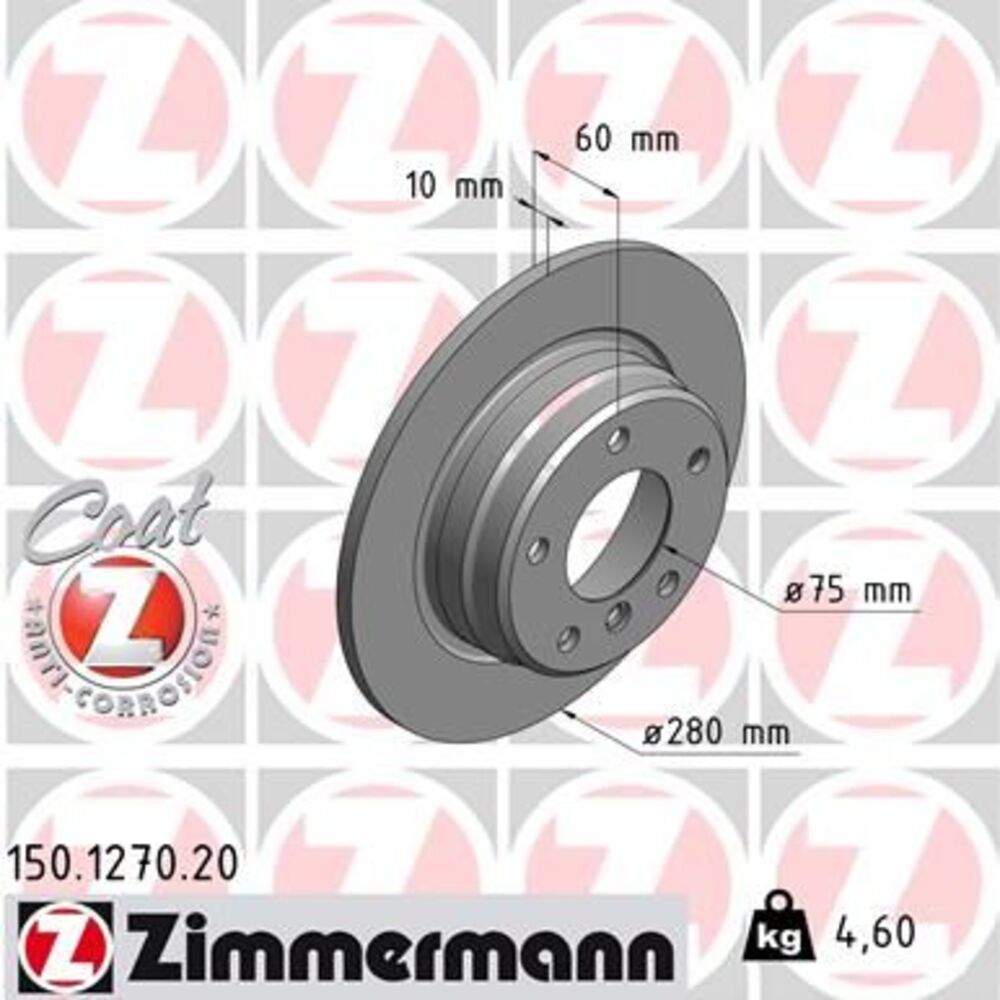

Zimmermann 150.1270.20 is a pair of solid brake discs (rotors). Each disc is 280 mm in diameter and 10 mm thick when new, with a 60 mm hat height. The minimum (discard) thickness is 8.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 1 158 936 and 4 other OE numbers. Confirmed to fit 23 Australian-market variants; the full list is in the fitment table on this page.
