Zimmermann 294mm Brake Disc Set (2 pcs) 150.1289.20
Part No. 150.1289.20
Check this part fits your car
Select your vehicle and we will confirm it against the 12 variants listed for this part.
$294.00
incl. GST
Rear axle
294 x 19 mm
Fits 12 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeExternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter294 mm
Thickness when new19 mm
Height60 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
Minimum (discard) thickness17.4 mm
Part weight5.9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.1289.20
Fits OE / OEM numbers
3421 1 165 563
3421 6 855 154
3421 6 864 056
3421 6 855 154
3421 1 165 563
3421 6 864 056
Vehicle fitment
12 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | E46 | 318 i | 1997–2001 | 87 kW |
| BMW 3 Series | E46 | 328 i | 1998–2000 | 142 kW |
| BMW 3 Series | E46 | 320 i | 1998–2000 | 110 kW |
| BMW 3 Series | E46 | 323 i, 323 ti | 1998–2000 | 125 kW |
| BMW 3 Series | E46 | 325 i, 328i | 2000–2005 | 141 kW |
| BMW 3 Series | E46 | 320 d | 2001–2005 | 110 kW |
| BMW 3 Series Compact | E46 | 325 ti | 2001–2004 | 141 kW |
| BMW 3 Series Convertible | E46 | 323 Ci | 2000–2000 | 125 kW |
| BMW 3 Series Convertible | E46 | 325 Ci | 2000–2006 | 141 kW |
| BMW 3 Series Coupe | E46 | 328 Ci | 1998–2000 | 142 kW |
Product overview

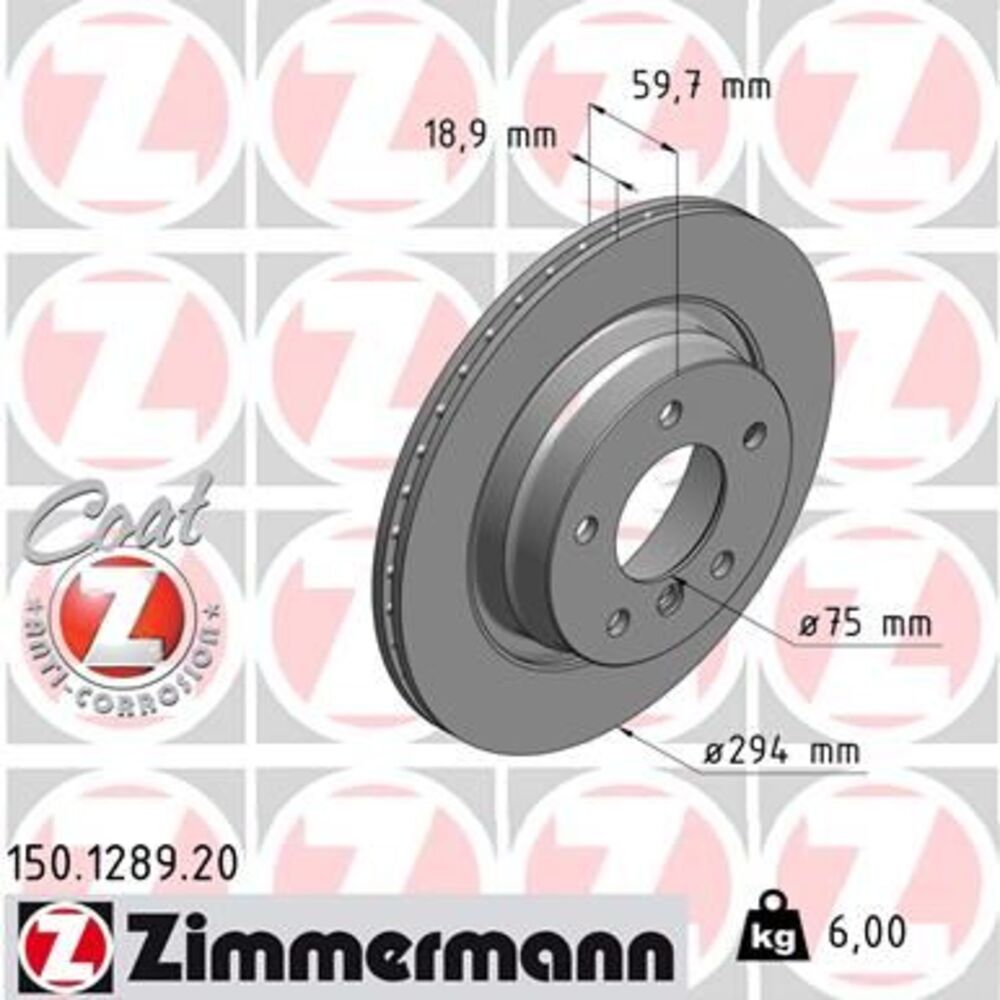

Zimmermann 150.1289.20 is a pair of externally vented brake discs (rotors). Each disc is 294 mm in diameter and 19 mm thick when new, with a 60 mm hat height. The minimum (discard) thickness is 17.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. Cross-referenced to BMW OE 3421 1 165 563 and 2 other OE numbers. Confirmed to fit 12 Australian-market variants; the full list is in the fitment table on this page.
