Zimmermann 294mm Brake Disc Set (2 pcs) 150.2927.20

Name: Zimmermann 294mm Brake Disc Set (2 pcs) 150.2927.20
Brand: Zimmermann
SKU: ZIM-00039
Price: 340.00 AUD
Availability: InStock

Part No. 150.2927.20

Low stock 5 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 2 variants listed for this part.

$340.00 incl. GST

Front axle 294 x 22 mm Fits 2 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter294 mm

Thickness when new22 mm

Height45 mm

Stud holes5

Stud circle (PCD)112 mm

Centre bore67 mm

ApprovalECE R90 approved

Minimum (discard) thickness20.4 mm

Part weight6.3 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

150.2927.20

Fits OE / OEM numbers

3411 6 866 297 3411 6 864 439 3411 8 835 362 3411 6 864 439 3411 6 866 297

Vehicle fitment

2 variants

Make & model	Chassis	Variant	Years	Power
BMW 2 Series Active Tourer	F45	218 d	2013–now	110 kW
BMW 2 Series Active Tourer	F45	218 i	2014–now	100 kW
No vehicles match your search.

Product overview

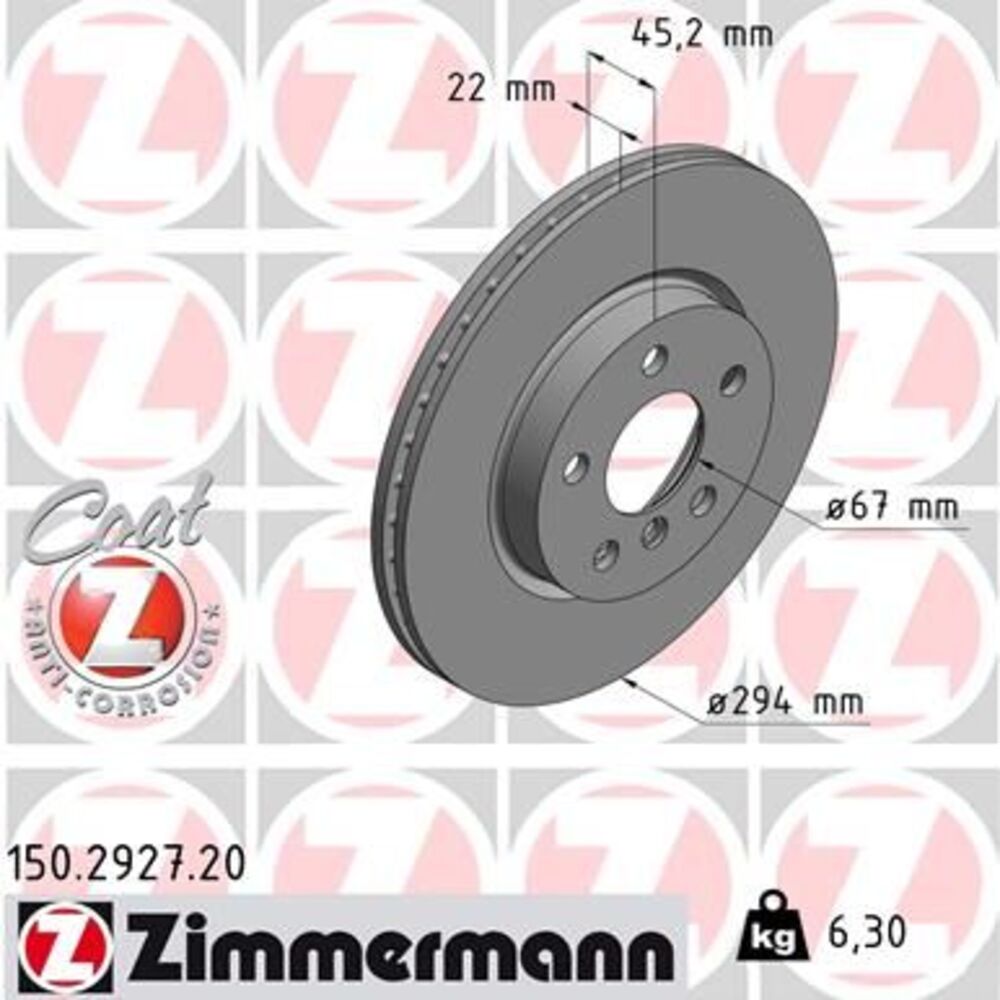

Zimmermann 150.2927.20 is a pair of internally vented brake discs (rotors). Each disc is 294 mm in diameter and 22 mm thick when new, with a 45 mm hat height. The minimum (discard) thickness is 20.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 866 297 and 2 other OE numbers. Confirmed to fit 2 Australian-market variants; the full list is in the fitment table on this page.
