Zimmermann 307mm Brake Disc Set (2 pcs) 150.2929.20
Part No. 150.2929.20
Check this part fits your car
Select your vehicle and we will confirm it against the 6 variants listed for this part.
$376.00
incl. GST
Front axle
307 x 24 mm
Fits 6 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter307 mm
Thickness when new24 mm
Height45 mm
Stud holes5
Stud circle (PCD)112 mm
Centre bore67 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight7.8 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2929.20
Fits OE / OEM numbers
3411 6 799 351
3411 6 860 957
3411 6 860 957
3411 6 799 351
Vehicle fitment
6 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series | F40 | 118 i | 2019–now | 103 kW |
| BMW 2 Series Active Tourer | F45 | 220 i | 2014–now | 141 kW |
| BMW 2 Series Active Tourer | F45 | 218 i | 2014–now | 100 kW |
| BMW X1 | F48 | sDrive 18 d | 2015–now | 110 kW |
| BMW X1 | F48 | sDrive 18 i | 2017–now | 103 kW |
| BMW X2 | F39 | sDrive 18 i, sDrive 20i | 2018–now | 103 kW |
Product overview

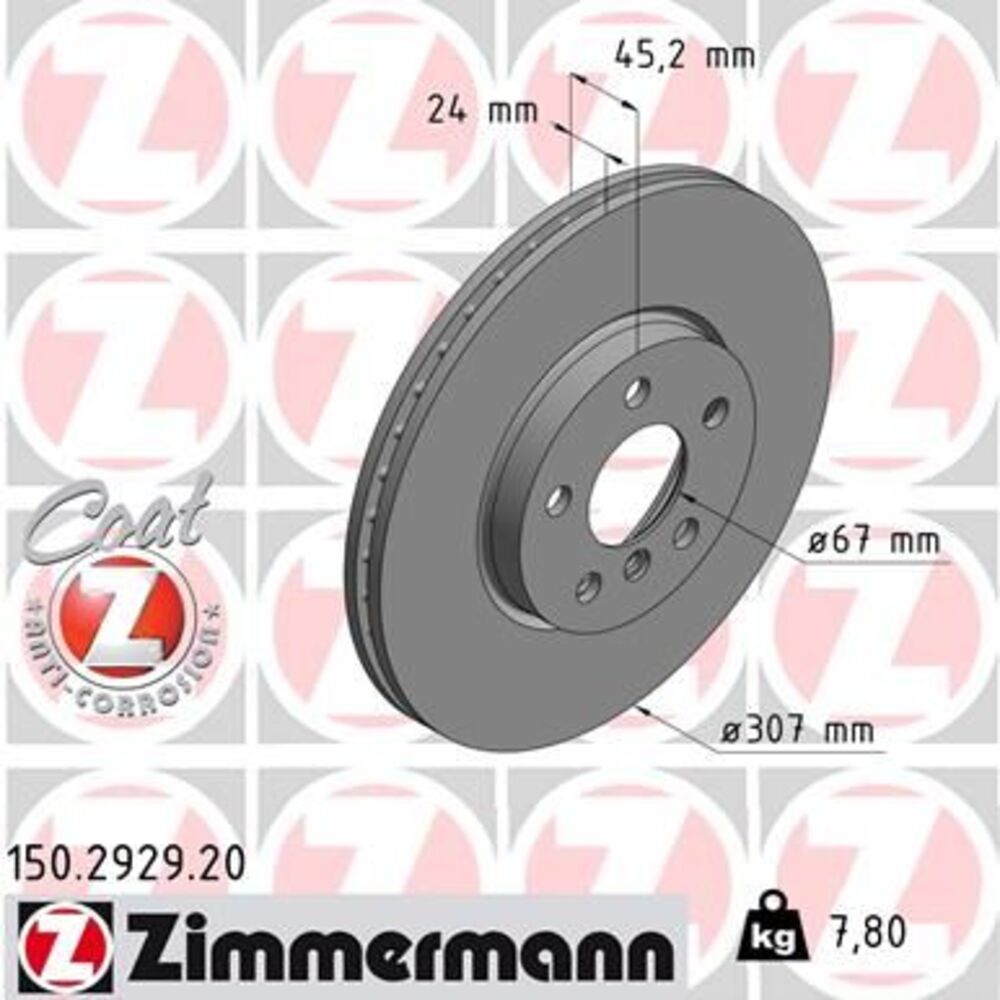

Zimmermann 150.2929.20 is a pair of internally vented brake discs (rotors). Each disc is 307 mm in diameter and 24 mm thick when new, with a 45 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 799 351 and 1 other OE number. Confirmed to fit 6 Australian-market variants; the full list is in the fitment table on this page.
